Philips 265850 TUV PL-L 36W/4P - 36W - 2G11 Base - 415mm - 25ct
($12.03 Each - Sold in Case of 25)
This lamp is a Philips TUV PL-L 36W/4P, 2G11 base ultraviolet germicidal lamp.
TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.
Benefits
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
Features

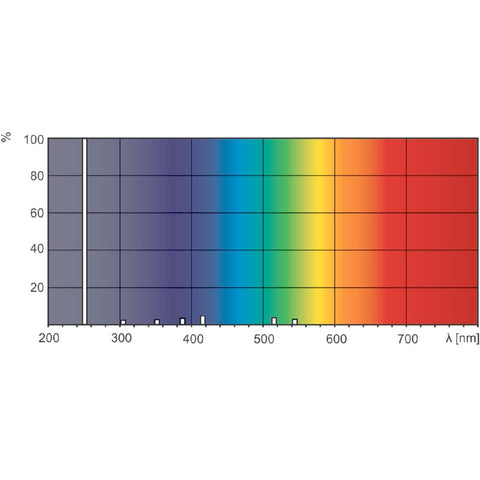

- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
- High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
- Warning sign on lamp indicates that the lamp radiates UVC
Applications
- Deactivation of bacteria, viruses and other micro-organisms
- Residential drinking water units
- Fish pond and process water units
- In-duct air treatment units
- Stand alone air purifiers
- Air disinfection systems in for example hospitals, universities and laboratories
Warning & Safety
A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
Lamp contains mercury. Manage in Accord with Disposal Laws.
DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.
Cross Reference Part Numbers
- General Electric GBX36/UVC/2G11
- Ionic Breeze PL-L36w/TUV
- Osram Sylvania Ltd. 23392 GFT36DL/2G11/SE/OF HNS L 36W 2G11
- Philips Lighting 265850 DL36 PL-L-36W/TUV TUVPLL36W/4P
- Sankyo Denki GPL36/K
- Sharper Image PL-L36W/TUV
- Ushio 3000339 GPL36K
Equipment Used In
- Allanson International Inc. UVA 36WB
- Allanson International Inc. UVA36WLR
- Amilair Corporation BE36
- Amilair Corporation BE36TWIN
- Bell Air Duct Services 36W
- Cal Pump BF4000
- Cal Pump UV36
- Calutech Air Purifier 196
- Calutech Air Purifier 200
- Calutech Air Purifier 2006 AT
- Calutech Air Purifier 2006 DS
- Calutech Air Purifier 200 M
- Calutech Air Purifier 244
- Calutech Air Purifier 246
- Calutech Air Purifier 6721 HU
- Calutech Air Purifier 9002 - 2001-2003
- Calutech Air Purifier 9002 AT
- Calutech Air Purifier 9002 CB
- Calutech Air Purifier 9002 DS
- Calutech Air Purifier 900336
- Calutech Air Purifier Air Tronics V2
- Calutech Air Purifier AQ400
- Calutech Air Purifier Clear Air Silver
- Calutech Air Purifier DSL UV
- Calutech Air Purifier Hurricane II
- Calutech Air Purifier Original Blue
- Catfish Lighting 36 Watt
- Coralife Turbotwist 36 Watt
- Custom SeaLife Double Helix 36 Watt
- E-Z AirCleaners BE36
- E-Z AirCleaners BE36TWIN
- Ionic Breeze SI362BLU
- Light Sources, Inc. LTC36W/2G11
- LightTech Lamp Technology, Ltd. LTC36W/2G11
- Lumalier Germicidal ADPL-136
- Oase Living Water 55432
- Oase Living Water Bitron 36
- Oase Living Water Bitron 36C
- Oase Living Water Bitron 72
- Oase Living Water Bitron 72C
- PetAirapy PAD
- PetAirapy PWM
- Purely UV Products PUVG1136
- Sharper Image Sanitizer
- Sharper Image SI362BLU
- Swordfish UVA 36WB
- Swordfish UVA36WLR
- Tetra Pond PLL36
- Tetra Pond UV3
- Tetra Pond UV3 Pond Clarifier
- Ultravation, Inc. LPPP0002
- Ultravation, Inc. UME-1036
- Ultravation, Inc. UME-2036
- Ultravation, Inc. UVE-1036
- Ultravation, Inc. UVE-2036
- Ultravation, Inc. UVS-1036
- Ultravation, Inc. UVS-2036
- ViaAqua Commodity Terminator
- ViaAqua UVS 36B
About Philips Lighting
Philips Lighting is a global leader in lighting, known for innovative lighting products and new technology. The company is headquarted in Europe but operates worldwide, serving both business and consumer markets. Philips Lighting comprises all types of lighting products, including LED, automotive, specialty and conventional lighting, controls, electronics, luminaires, and more.
| Cap-Base | 2G11 |
|---|---|
| Cap-Base Information | 4 Pins |
| Color Code | TUV |
| Lamp Current (Nom) | 0.44A |
| Lamp Type | UV-C Germicidal |
| Length (mm) | 415 |
| Main Application | Disinfection |
| Power (Rated) (Nom) | 36W |
| Spectrum | 254nm |
| Total UV Output | 12W |
| Useful Life (Nom) | 9000h |
| ProLampSales Order Code | 4253130489988 |
|---|---|
| Brand | Philips |
| Series | TUV |
| MPN | 265850 |
| Model | TUV PL-L 36W/4P |
| UPC | 8711500628787 |
