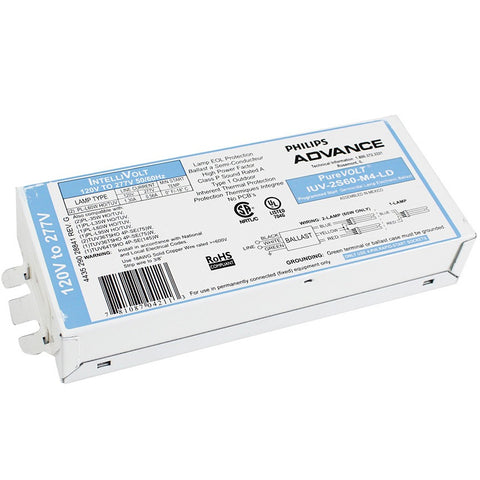

Philips Advance IUV-2S60-M4-LD - PureVolt Electronic UV Ballast - 120-277V - 1/2 Lamp

This product is Philips Advance PureVOLT Ultraviolet Germicidal Ballast. It has a part number of IUV-2S60-M4-LD.

The microprocessor controlled Advance PureVOLT electronic ballasts are specifically designed to operate a variety of germicidal lamps.

The Advance PureVOLT ballasts for UV lamps offer exclusive features such as IntelliVolt® technology (allowing the ballast tooperate at any input voltage from 120 to 277 volts, 50/60 Hz), dual entry, color-coded connectors and lamp EOL protection.

A powerful pair, the combination of germicidal lamps with an Advance PureVOLT ballast provides the appropriate level of UV-C energy to stop the spread of microorganisms, airborne contaminants, and pathogens, reducing the threat of illness and helping to ensure a safer environment for building occupants.

Design Highlights

• Microprocessor controlled - one ballast operates multiple lamps.
• IntelliVolt technology - operates from 120V through 277V.
• Auto-restart which eliminates the need to reset the power mains after lamp replacement.
• Programmed starting for extended lamp life in frequent switching applications.
• Lamp EOL protection to safely remove power from the lamp as it nears end of life.
• 5-year warranty

Applications

• UV lamp disinfection for air, water and surface applications
• Hospitals
• Food Processing
• Residential
• Schools
• Office Buildings
• Recreational Facilities
• HVAC Systems

Lamp Types

• G36T5L/HO/C
• G36T5VH/HO/C
• G55T8
• G55T8HO
• G64T5L/HO/C
• G64T5VH/HO/C
• GHO36T5L
• GHO36T5VH
• GHO36T5L/4PSE
• GHO36T5VH/4PSE
• GHO64T5L
• GHO64T5VH
• GHO64T5L/4PSE
• GHO64T5VH/4PSE
• GPH436T5L/HO
• GPH436T5VH/HO
• GPH436T5L/HO/4PSE
• GPH436T5VH/HO/4PSE
• GPH793T5L/HO
• GPH793T5VH/HO
• GPH843T5/HO
• GPH846T5L/HO
• GPH846T5VH/HO
• GPH846T5L/HO/4PSE
• GPH846T5VH/HO/4PSE
• GPH893T5L/HO
• GPH893T5VH/HO
• GPH893T5L/HO/4PSE
• GPH893T5VH/HO/4PSE
• GPH1554T5/HO
• PL-L35WHO/TUV (35W)
• PL-L60WHO/TUV (60W)
• PL-L95WHO/TUV (95W)
• TUV 36T5/HO (75W)
• TUV 36 T5 HO 4P-SE
• TUV 55T8/HO
• TUV 64T5/HO (145W)
• TUV 64 T5 HO 4P-SE
• TUV 75W HO

Equipment Used In

• Trane LIT01169
• Trane X13161080030
• UV Resources 55000052
• UV Resources 55800062
• UV Resources 55800064
• UV Resources 55800066
• UV Resources 58000064
• UV Resources RLM-61-HO
• UV Resources RLMX-33-HO
• UV Resources RLMX-61-HO

About Philips Advance

Philips Advance is one of North American's leading manufacturers of fluorescent and HID ballasts, as well as LED drivers. The company has been in business for over 50 years, earning a reputation in the industry for quality, reliability, and innovation. Advance supplies electronic and magnetic ballasts to OEMs and through distributors, and is one of the industry's most trusted brands.
