A1/183 240V LIF Code
A1/183 240V LIF is a T30 lamp with a B15s base operating at 300 watts and 240 volts. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF A1/183 240V lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 300 |
Photometrics | |
| Light Center Length (LCL) | 35 |
|---|---|
| Lumens | 6900 |
Physical Characteristics | |
| Base | B15s |
|---|---|
| Bulb Shape | T30 |
| Filament | CC-13 |
| Finish | Obscured top |
| Max Overall Length (MOL) | 81 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | A1/183 240V |
|---|---|
| Code Type | LIF |
| Specification Reference | Class A1 - Projection |
| Equivalents | BEL |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

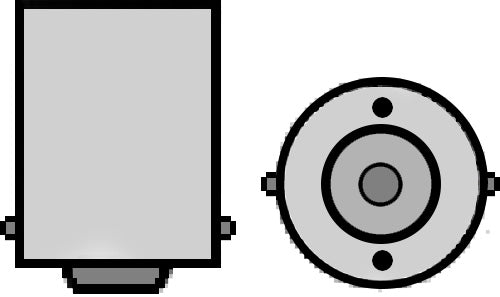

B15s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
Equipment Used In | ||
| Brand | Model | Type |
| Bell and Howell | 706 HEADLINER | |
| Bell and Howell | 706-S HEADLINER | |
