A1/220 LIF Code

A1/220 LIF is a T11.5 lamp with a G6.35 base operating at 50 watts and 12 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF A1/220 lamps.

Electrical Specifications

Volts12
Watts50

Photometrics

Color Temperature3400
Light Center Length (LCL)30
Lumens1400

Physical Characteristics

BaseG6.35
Bulb ShapeT11.5
FilamentFC-6
FinishClear
Max Overall Length (MOL)44

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours50

General Information
Lamp CodeA1/220
Code TypeLIF
Specification ReferenceClass A1 - Projection
EquivalentsBCD, BRL

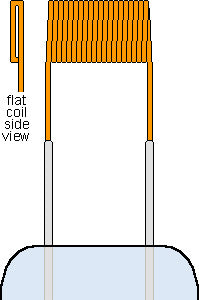

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

G6.35 Base

G6.35

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
NARVA55211BCD/BRL
Aluma-LiteRL-050
AMBICOV-0182
Amcam InternationalBRL
ArkonBRL
Bulbrite761020BRL
CanonBH33015-000
Eiko10033BRL
EYE (Iwasaki)JC12V50W/G1BRL
General Electric18234BRL
HanelBRL
KowaL15A26
Leitz500-182
Leitz WildM650
Mueller Instruments8632-S
Nikon76516
Nikon78671
NikonNT12V50WL
Nissin12V 50W
Olympus8-C402
Olympus8-C407
Optex ArgusBRL
Osram Sylvania54034BRL 64610 HLX
Osram Sylvania54035BRL 64610 HLX BULK
Osram Sylvania54249BRL 64610 HLX
Philips3162737027 BRL 50W G6.35 12V
Sakar (Cam Products)D-250
SimaBRL
Sunlite70000BRL/BCD
SwiftMA-784
Topcon43123-46140
Unik50W
UniphotoBRL
Unomat12V 50W
Ushio1000071BRL, JC12V-50W
Ushio8000253
Vivitar12V50DC
Woodlyn545070
Atlas/ThornA1/220
Green Energy Lighting (GELCO)21412-GELBRL/BCD
Rexim, LLCRSE-48

Equipment Used In

BrandModelType
3M Jacketloader 169 Microfilm
AMBICO V-0195
AMBICO V-0807
AMBICO V-0814
AMBICO V-0816 (DC)
Allen Microfilm A1 220
Altman Lighting 65Q 6-Fresnel
Aluma-Lite VLA-050
Aluma-Lite VLA-100
Aluma-Lite VLA-200
Aluma-Lite VLA-500SC
Aluma-Lite VLA-DC001
Amcam International PRINZ 380-110 (DC)
Amcam International PRINZ 380-97 (DC)
American DJ (ADJ Products) Mini-Gem Stage / Studio
American DJ (ADJ Products) Quartet 2 Stage / Studio
American DJ (ADJ Products) Quartet 1 Stage / Studio
American DJ (ADJ Products) Sparkle Stage / Studio
American DJ (ADJ Products) Coloray
Arkon AR100AC-DC
Arkon AR100DC
Bausch & Lomb 71-61-86 Medical
Bell and Howell Commuter SR-16
CMM Diplomate Microfilm
CMM LEM 35 Microfilm
Canon 250 LH
Canon 360 LH
Canon Fundus Camera (all models except CR-5)
Caps Microfilm 160 Jacket Loader
Caps Microfilm Jupiter
Caps Microfilm Nova A2
Caps Microfilm 169 Jacket Loader Microfilm
Coltene Whaledent DI-500
Coltene Whaledent Direct Inlay System
Dental Vision Direct UltraCam
Dr. Hell Scanner
Dukane 27 A 35 Explorer
Dukane 27A50
EFOS 3032 Dental Lamp
Eastman Kodak Recordak Startech SP3.2
Eastman Kodak Recordak Startech SP-3.2
Elmo TM-7100
Fuji (Fujica) RFP 2
GAF (Aarque Systems) 9200H
GAF (Aarque Systems) 9200M
GAF (Aarque Systems) GA 2 35 MM
GAF (Ansco) 9200-M
GAF (Ansco) 9200-H
GAF (Ansco) GA-2 35mm Projector
Gnome Sprite Magazine IQ-50 7032
Gnome Insta Classic 765
Gnome Insta Classic IQ 765
Gnome Mini Classic IQ 766
Goko A-2035001 Movie Editor
Goko SV-30
Hanel PB100
Hanel PRINZ 380-110 (DC)
Hanel PRINZ 380-97 (DC)
Harper & Tunstall Harper 35A2
Imtec LEM 35
Interzeal Model 2001
Interzeal Octopus
Interzeal Model 2000
John Deere 7027 Riding Mower
KLS Martin / Berchtold D300 Medical
Kalle RP 433 (R/P)
Kalle RP 433 S (R/P)
Kalle RP 434 (R/P)
Kalle RP 435 (R/P)
Kalle RV 414 (R/P)
Karmac LEM
Kobold VM-300
Konishiroku Sakura 442 E Microfilm
Kowa Main Illuminator
Leica 500182 Medical
Leitz Comparison Macroscope
Leitz Epivert
Leitz LH50
Leitz Ortholux 2
Logotronics MVP
Lytequest Sparkler Stage / Studio
Lytequest Shimmer Stage / Studio
Macbeth Densitometers TD500
Marshall-Smith New Midget AP Card Reader
Micro Design The Portable
Microscot Comet
Microscot Jupiter
Microscot Lensman
Microscot Planet
Minox 33100
Minox Portable
NCR Corp. G1
NCR Corp. Graduate
NCR Corp. M100
NMG National Microfilm Group NMG 16C
NMG National Microfilm Group NMG 16R
NMG National Microfilm Group NMG 352
Nikon Diaphot
Nikon Diaphot 200
Nikon Diaphot 300
Nikon Epi-Fi QH
Nikon KBB00689-501
Nikon NFC-50 Fundus Camera
Nikon NFC-60 Fundus Camera
Nikon Optiphot
Nikon Optiphot-Pol
Nikon 78671
Nikon 76517
Nikon 89500
Nikon SMZ10 Coaxial
Nikon M Epi
Nikon POC-NP-3
Nikon NFC-50 Fundus Camera Flash Tube
Nikon 79099
Nikon SMZ1 Vert
Nikon SMZ1 Vert Illum
Nikon SMZU Coaxial
Nikon SMZ2 Vert Illum
Nikon TMS
Nikon SMZ2 Vert
Nikon KT
Nikon Epi Illum
Nikon POC
Nikon 76516
Nikon Optiphot 66 Dia
Nikon Optiphot (Old 20W)
Nikon MM-11 (20w Epi & Dia)
Nikon TM2 Epi
Nikon NP-3 POC
Nikon TM1
Nikon Alphaphot KT2
Nikon Measurescope TM1
Nikon M Epi ILL
Nikon Alphaphot KT
Nikon SMZU Coaxial & Epi
Nikon Measurescope MM-11 (20w Epi & Dia)
Nissin Camlite 5012
Office Equipment Plandale SMA RP2
Office Equipment Plandale SMA RP34
Office Equipment Plandale SMA RP41
Office Equipment Plandale SMA RPC
Office Equipment Plandale SMA Vario A2
Olympus A-LSH-3
Olympus BH2
Olympus BH2-M6SH
Olympus BH2-MLSH
Olympus BH-RFL
Olympus B-LSH-3
Olympus BMH-LSH2
Olympus IMT-2
Olympus PME-3
Olympus PME-LSM
Olympus SZH-ILLD
Olympus ULS20
Olympus OL8-C407
Olympus OL8-C402
Olympus 8-C402
Omnium Promotion SMA RPC
Omnium Promotion SMA RPC21
Omnium Promotion SMA RPK
Omnium Promotion SMA RP21
Optex Argus VS-160 (DC)
Optex Argus VS-50
Ortholux 2 EPIVERT
Program Sistems (Programmi and Sistemmi Luce) Baby Star Sound Stage / Studio
Program Sistems (Programmi and Sistemmi Luce) Sting Stage / Studio
RH Burton Keratometer 2000
RH Burton Slit Lamp 2000
RH Burton L-2000
Renker Safir RPC
Renker Safir SMA RP 35-2
Renker Safir SMA RP-35-4
SMA (Shaut Mikrofilmtechnik) 231 (P)
SMA (Shaut Mikrofilmtechnik) 325
SMA (Shaut Mikrofilmtechnik) P-40
SMA (Shaut Mikrofilmtechnik) P-41
SMA (Shaut Mikrofilmtechnik) Printer 202
SMA (Shaut Mikrofilmtechnik) Printer 203
SMA (Shaut Mikrofilmtechnik) RP 222
SMA (Shaut Mikrofilmtechnik) RP-2
SMA (Shaut Mikrofilmtechnik) RP-2S
SMA (Shaut Mikrofilmtechnik) RP-34
SMA (Shaut Mikrofilmtechnik) RPC
SMA (Shaut Mikrofilmtechnik) RPF
SMA (Shaut Mikrofilmtechnik) RPK
SMA (Shaut Mikrofilmtechnik) Vario Reader
Sakar (Cam Products) V-2500
Sakar (Cam Products) V-3500 (DC)
Savemo LEM 150
Savemo LEM 248
Savemo Microcard 135
Sima Camlight 2
Sima SCLA (DC)
Sima SLAD-2 (DC)
Swift Swiftmaster II
Swift Y5
Topcon Main Illuminator SBP-2020
Topcon SBP-2020
Unik RV-150 AC/DC
Unik RV-150 DC
Uniphoto SDVL-120/122 (DC)
Unomat DC-700 Series
Unomat DC-800 Series
Unomat DC-801 Series
Unomat DC-9000 Series
Vivitar VLM-1
Vivitar ZL-1
Woodlyn Slit Lamp
Zeiss 3800-79-9550
Zeiss Axiospeed
Zeiss Axioskop
