A1/235 LIF Code
A1/235 LIF is a T12.5 lamp with a PG22d base operating at 250 watts and 24 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF A1/235 lamps.
Electrical Specifications | |
| Volts | 24 |
|---|---|
| Watts | 250 |
Photometrics | |
| Color Temperature | 3400 |
|---|---|
| Light Center Length (LCL) | 23 |
| Lumens | 8500 |
Physical Characteristics | |
| Base | PG22d |
|---|---|
| Bulb Shape | T12.5 |
| Filament | FC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 56 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | A1/235 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class A1 - Projection |
FC-6 Filament | |
 | |
| Coil Type | FC - Flat Coil |
|---|---|

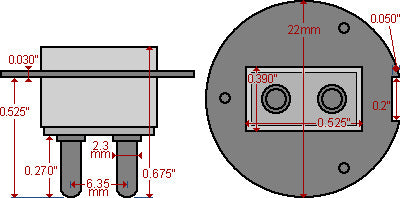

PG22d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | A1/235 | ||
