A1/53 240V LIF Code
A1/53 240V LIF is a T38 lamp with a P46s base operating at 750 watts and 240 volts. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF A1/53 240V lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 750 |
Photometrics | |
| Light Center Length (LCL) | 59 |
|---|---|
| Lumens | 18000 |
Physical Characteristics | |
| Base | P46s |
|---|---|
| Bulb Shape | T38 |
| Filament | C-13D |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 128 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | A1/53 240V |
|---|---|
| Code Type | LIF |
| Specification Reference | Class A1 - Projection |
T38 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

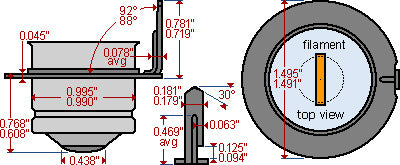

P46s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | A1/53 240V | ||
