A3/1 240V LIF Code
A3/1 240V LIF is a PS70 lamp with a E27s base operating at 100 watts and 240 volts. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF A3/1 240V lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 100 |
Photometrics | |
| Light Center Length (LCL) | 95 |
|---|---|
| Lumens | 1050 |
Physical Characteristics | |
| Base | E27s |
|---|---|
| Bulb Shape | PS70 |
| Filament | C-11 |
| Finish | Clear |
| Max Overall Length (MOL) | 125 |
Operating Characteristics | |
| Burn Position | Horizontal |
|---|---|
| Life Hours | 300 |
General Information | |
| Lamp Code | A3/1 240V |
|---|---|
| Code Type | LIF |
| Specification Reference | Class A3 - Horizontal Projection |

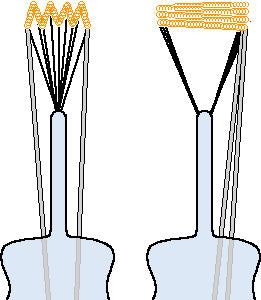

C-11 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
E27s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | A3/1 240V | ||
