B1/16 LIF Code
B1/16 LIF is a P80 lamp with a P28s base operating at 250 watts and 240 volts. It has a Clear finish. The average rated life is 5000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF B1/16 lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 250 |
Photometrics | |
| Light Center Length (LCL) | 55.5 |
|---|---|
| Lumens | 2400 |
Physical Characteristics | |
| Base | P28s |
|---|---|
| Bulb Shape | P80 |
| Filament | C-5 |
| Finish | Clear |
| Max Overall Length (MOL) | 130 |
Operating Characteristics | |
| Burn Position | VBD ± 135 |
|---|---|
| Life Hours | 5000 |
General Information | |
| Lamp Code | B1/16 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class B1 - Floodlighting |

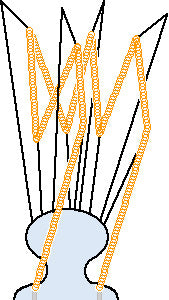

C-5 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
P28s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | B1/16 | ||
