BAB ANSI Code

BAB ANSI is a MR16 lamp with a GU5.3 base operating at 20 watts and 12 volts. It has a color temperature of 2900 Kelvin. The beam angle is 36°. It has a Open front finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BAB lamps.

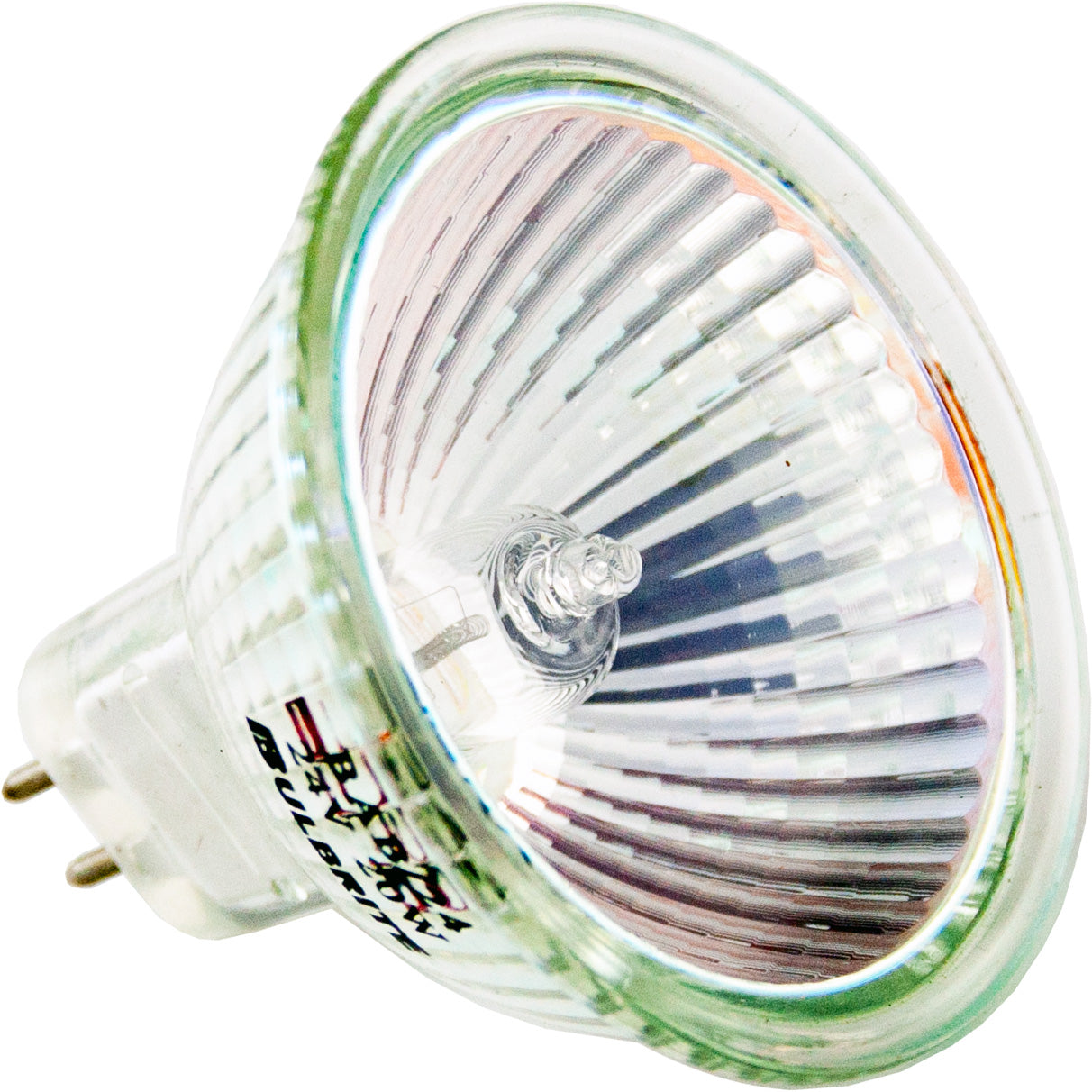

BAB Photograph

BAB

Electrical Specifications

Amps1.67
Volts12
Watts20

Photometrics

Beam Angle36°
Beam SpreadFlood
Candlepower500cp
Color Temperature2900
Lumens790

Physical Characteristics

BaseGU5.3
Bulb ShapeMR16
FilamentCC-8
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionAny
Life Hours3500

General Information
Lamp CodeBAB
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsM/69, M/269

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

GU5.3 Base

GU5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Atlas/ThornM/69
Bulbrite641320BAB
CEW Lighting51330BAB
Cool LuxFOS-5
Cool LuxMini-Cool FOS-5
Display LampHalo Z35
Eiko15030BAB
Frezzolini / FrezziDMF12C
Frezzolini / FrezziDMF12P
Frezzolini / FrezziDMF12V
Frezzolini / FrezziDMF4X
Frezzolini / FrezziDMF5X
Frezzolini / FrezziDMFSV
General Electric14790Q20MR16/FL (BAB)
General Electric20814Q20MR16C/FL40
General Electric25480Q20MR16/FL 12 (BAB)
General Electric85289Q20MR16/FL-PQ3/6
Grainger4LV92
Halco107120MR16BAB/SC
Halco107480MR16BAB
Imported Lamp Code107811
Imported Lamp Code41860FL
Imported Lamp Code61001-4
Imported Lamp Code6464
Imported Lamp CodeRJK2012FL
Osram Sylvania54200BAB 20MAR16/FL/40
Osram Sylvania5860020MR16/FL/40 (BAB)
Osram Sylvania58646
Philips37803420MR16/FL36 BAB 50PK 12V
Philips37815820MRC16/FL36 BAB
SatcoS195620MR16/FL BAB
SatcoS346120MR16/FL BAB
SLI Lighting60249Q20MR16/FL BAB
Sunlite03200BAB
Ushio1000000BAB
Westinghouse44510020MR16Q/FL
Westinghouse45810020MR16Q/FL
HikariMR-8017PCMR16 BAB Cover
HikariMR-8017CMR16 BAB
Osram Sylvania5851420MR16/FL/C/BAB/CLAM 12V
Osram Sylvania5430620MR16/FL35/C(BAB) 12V
Green Energy Lighting (GELCO)11337-GELBAB 12V-20W/W
Green Energy Lighting (GELCO)11362-GELBAB 12V-20W/W/FG
Green Energy Lighting (GELCO)11337-PECJBAB 12V-20W/W
SatcoS196620MRC16/FL BAB/C
Standard Products51134H20MR16/FL/CG/4M/GX5.3/12V/BAB STD
Standard Products51066H20MR16/FL/4M/GX5.3/12V/BAB STD
Norman LampsBAB-C/ERBAB-C/ER
Norman LampsBAB-CBAB Halogen Bulb 12V 20W
Grainger1K335
Grainger1K359
Microlites12-020-23BR
Microlites12-020-23BR/60
Microlites12-020-23BR/G
Microlites12-020-23VR
Canimpex12-020-23BR
Canimpex12-020-23BR/60
Canimpex12-020-23BR/G
Canimpex12-020-23VR
Biclite11322BAB
Biclite11326BAB
Biclite11327BAB
Biclite11328BAB
Biclite11359BAB
Biclite11363BAB
Biclite11364BAB
Biclite11365BAB
Orbitec133020H 43202
Orbitec130320H 63202
Orbitec131984H 63202 C
Orbitec130343H 41860 WFL
Orbitec132338H 63202 ALU
Orbitec133024H 43202 F
Orbitec131994H 63202 FC
Orbitec130319H 63202 F
Orbitec130646H 46860 WFL
Orbitec132018H 44860 WFL
Orbitec131757HN 60205
Orbitec130355H 63202 GOLD F

Equipment Used In

BrandModelType
Altman Lighting MF
Altman Lighting ME
Altman Lighting Zip Strip Stage / Studio
Altman Lighting ZS
Frezzolini / Frezzi Standard Mini-Fill Stage / Studio
Lycian Stage Lighting 1308

Sources

  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "General Lighting Products." Catalog. Osram, .
  • "The Philips Lighting Catalogue." Catalogue. Philips, .
