BAH ANSI Code
BAH ANSI is a A21 lamp with a E26 base operating at 300 watts and 115 volts. It has a color temperature of 3200 Kelvin. It has a Pearl finish. The average rated life is 20 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BAH lamps.

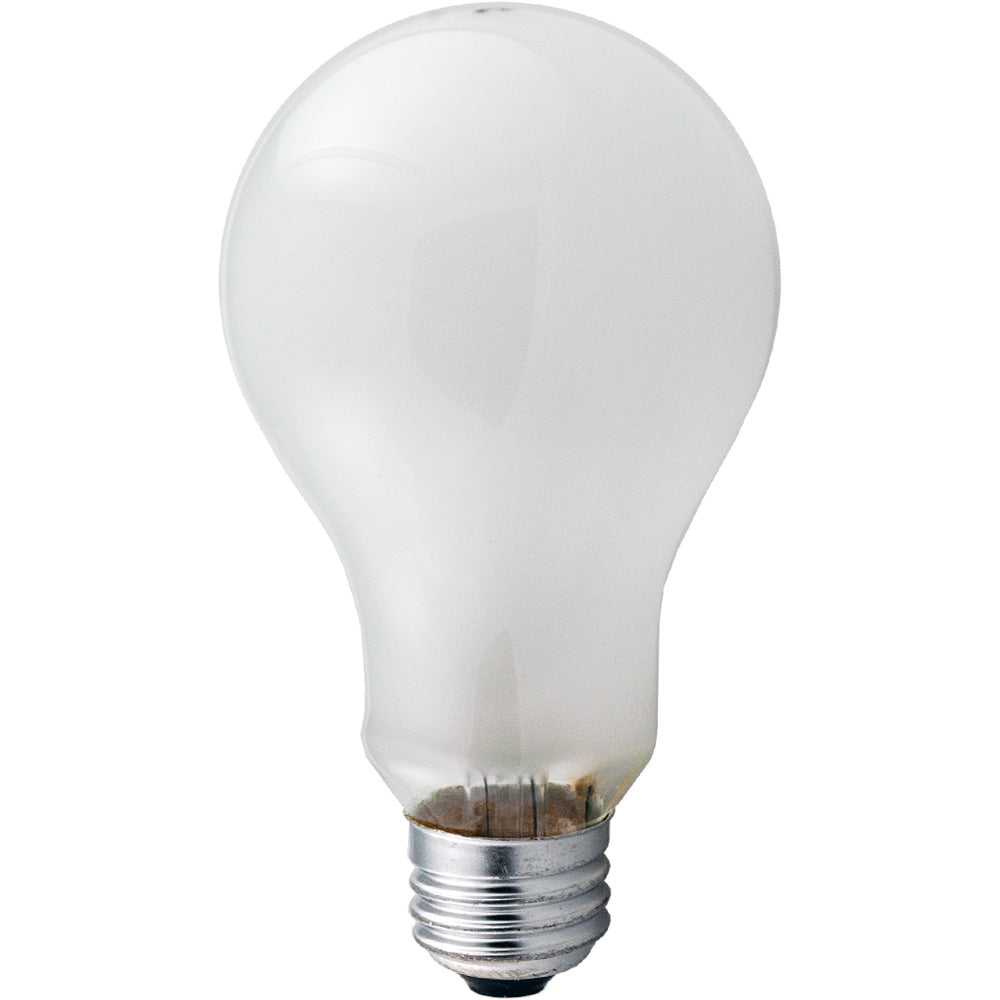

BAH Photograph |
 |
Electrical Specifications | |
| Amps | 2.61 |
|---|---|
| Volts | 115 |
| Watts | 300 |
Photometrics | |
| Candlepower | 740 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 3.78" (96mm) |
| Lumens | 9000 |
Physical Characteristics | |
| Base | E26 |
|---|---|
| Bulb Shape | A21 |
| Filament | C-9 |
| Finish | Pearl |
| Max Overall Length (MOL) | 4 15/16 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 20 |
General Information | |
| Lamp Code | BAH |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
A21 Shape | |
 | |
| Diameter Designation | 21/8" |
|---|---|
| Glass Diameter | 2 5/8" (2.625") |
| Shape Code | A |
| Shape Classification | Arbitrary |
C-9 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
E26 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| General Electric | 40886 | BAH | |
| Ushio | 1000024 | BAH, INC115V-300W | |
| Green Energy Lighting (GELCO) | 60510-WB | BAH | |
| Microlites | 115-300-48F | ||
| Microlites | 120-300-48F | ||
| Canimpex | 115-300-48F | ||
| Canimpex | 120-300-48F | ||
Equipment Used In | ||
| Brand | Model | Type |
| Seerite | 6X6 TOP LOAD | |
| Singer Corporation | Graflex SC-811 | |
| Singer Corporation | Showcase SC-811 | |
| Singer Corporation | Constellation Showcase SC-814-811 | |
| Singer Corporation | Showcase SC-814 | |
| Singer Corporation | Graflex SC-814 | |
