BAL ANSI Code

BAL ANSI is a B6 lamp with a BA15d base operating at 19 watts and 28 volts. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BAL lamps.

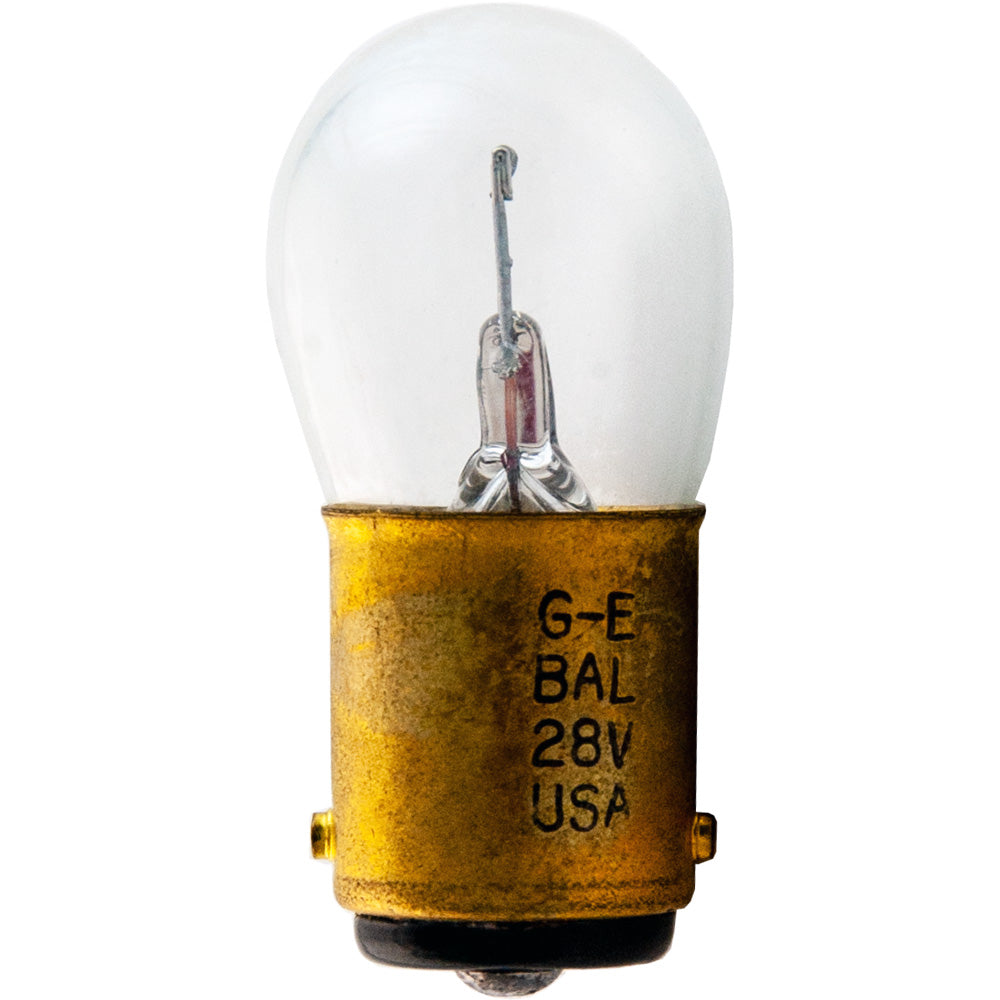

BAL Photograph

BAL

Electrical Specifications

Amps0.679
Volts28
Watts19

Photometrics

Light Center Length (LCL)1.04" (26.4mm)

Physical Characteristics

BaseBA15d
Bulb ShapeB6
FilamentCC-6
FinishClear
Max Overall Length (MOL)1.66" (42.1mm)

Operating Characteristics

Burn PositionAny
Life Hours100

General Information
Lamp CodeBAL
Code TypeANSI
Specification ReferenceANSI-SR24F2002

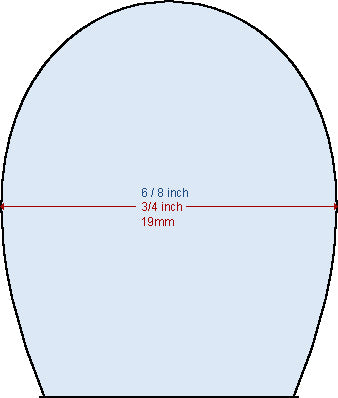

B6 Shape

B6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeB
Shape ClassificationBulged

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIBAL

Equipment Used In

BrandModelType
General Electric Show 'n Tell Color Print Viewer
