BCK ANSI Code

BCK ANSI is a T6 lamp with a G17t-A2 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BCK lamps.

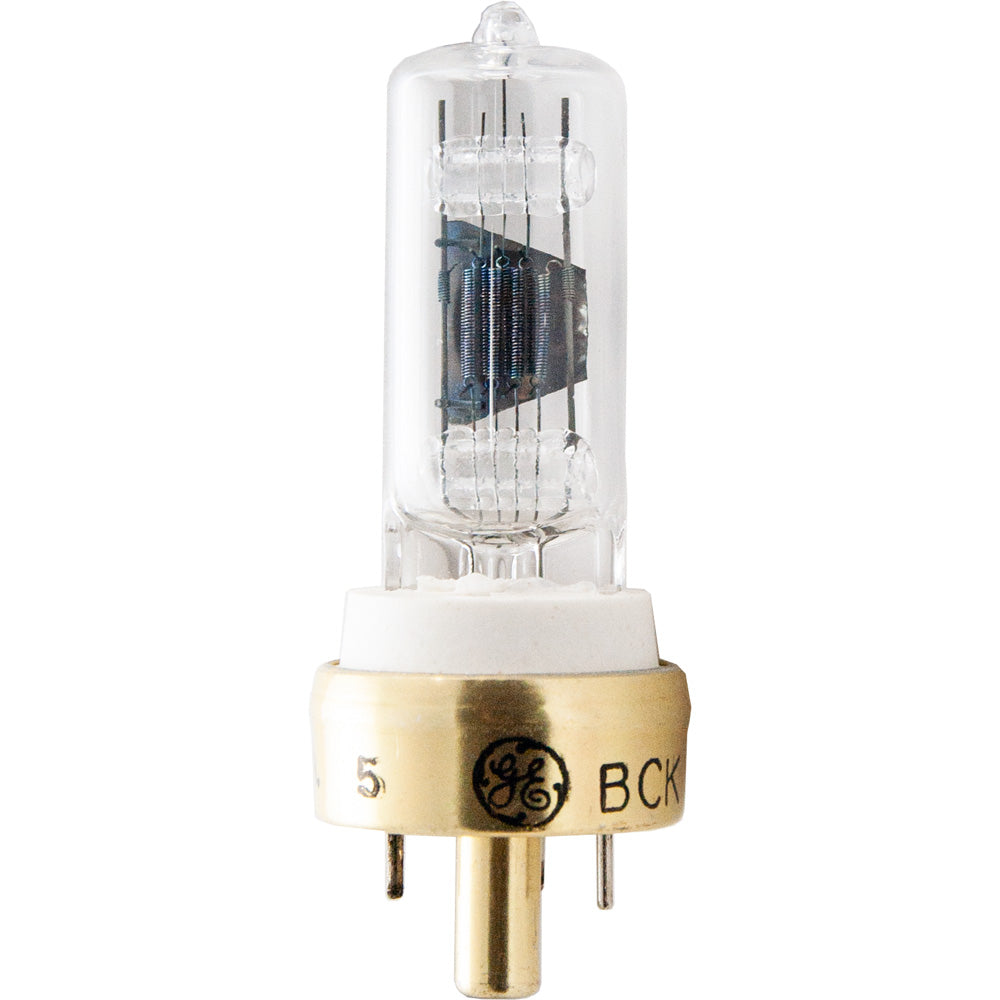

BCK Photograph

BCK

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower3,200cp
Color Temperature3200
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17t-A2
Bulb ShapeT6
FilamentC-13D
FinishClear
Max Overall Length (MOL)3 1/4

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeBCK
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 220V Use EPS/220V/500W
For 230V Use EPS/230V/500W
For 240V Use EPS/240V/500W

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Kahoku Lighting Solutions (KLS)62001-KLSBCK Japan
Norman LampsBCKBCK
Microlites115-500-31B
Microlites120-500-31B
Microlites125-500-31B
Canimpex115-500-31B
Canimpex120-500-31B
Canimpex125-500-31B

Equipment Used In

BrandModelType
3M VSS-785
3M 625-BGR
Airequipt Avventura 360
Airequipt Superba 44 Slide Projector
Airequipt Festival 250 Slide Projector
Airequipt Autostack 560 Slide Projector
Airequipt Superba 77a Sound Slide Projector
Airequipt Superba 77a Slide Projector
Airequipt Sprite 28 Slide Projector
Airequipt Sprite 20 Slide Projector
Airequipt Festival 30 Slide Projector
Airequipt 900 Series
Airequipt 950
Airequipt Sonic Slide Projector
Airequipt Avventura 340
Airequipt 100
Airequipt 400 Series
Airequipt 600 Series
Airequipt Superba 33a Slide Projector
Airequipt Superba 66a Slide Projector
Airequipt Autostack 550 Slide Projector
Airequipt Superba 77 Slide Projector
Airequipt Festival 50 Slide Projector
Airequipt Festival 230 Slide Projector
Airequipt 300 Series (older model)
Airequipt 3000 Series
Airequipt Autostack 500 Slide Projector
Airequipt Avventura 380
Airequipt Sprite 25 Slide Projector
Airequipt 1135
Airequipt Superba 30 Slide Projector
Airequipt Sprite 35 Slide Projector
Airequipt Sprite 30 Slide Projector
Airequipt Superba 33 Slide Projector
Airequipt Superba 66 Slide Projector
Airequipt 300 Series (newer model)
Airequipt 1150
Airequipt Superba 44a Slide Projector
Airequipt 4000 Series
Argus 915-QT
Argus 915
Argus 915-AQT
Argus Roundabout 912 8mm Projector Movie
Argus Roundabout 910
Argus 912
Dukane Super Micromatic 14A650C Projector
Dukane Micromatic Super 14A650A Projector
Dukane Cassette Micromatic Super 28A15C Projector
Dukane Cassette Micromatic 25A81 Projector
Dukane Super 28A6B Projector
Dukane Cassette Micromatic Super 28A81-5 Projector
Dukane Super Micromatic 14A650B Projector
Dukane Cassette Super Micromatic 28A15 Projector
Dukane Micromatic Super 14A650C Projector
Dukane Remote Control 28A6B Projector
Dukane Cassette Micromatic Super 28A6B Projector
Dukane Remote Control 28A6A Projector
Dukane Super Micromatic 14A650A Projector
Dukane Response Micromatic 28A83 Projector
Dukane Cassette Micromatic 28A81 Projector
Dukane Response Micromatic 28A28 Projector
Dukane Cassette Micromatic Super 28A15B Projector
Dukane Micromatic Super 14A650B Projector
Dukane Cassette Micromatic Super 28A15 Projector
Dukane Cassette Micromatic Super 28A15A Projector
Itek 1824-RS Microfilm
Keystone Camera Co. Inc. 660 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-900 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-660 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 770 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Targetronic 990 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-880 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-990 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 900 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-770 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 880 Projector Slide / Filmstrip
Standard Projector & Equipment 1001-RP
Standard Projector & Equipment 1003 Sound Filmstrip
Viewlex V-85
Visual Graphics 62-12205-002 Graphic Arts
