BDK ANSI Code

BDK ANSI is a R14 lamp with a BA15d base operating at 100 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Inside Frost finish. The average rated life is 4 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BDK lamps.

Electrical Specifications

Amps0.833
Volts120
Watts100

Photometrics

Candlepower3,200cp
Color Temperature3200
Lumens3200

Physical Characteristics

BaseBA15d
Bulb ShapeR14
FilamentCC-2V
FinishInside Frost
Max Overall Length (MOL)2 11/16

Operating Characteristics

Burn PositionHorizontal
Life Hours4

General Information
Lamp CodeBDK
Code TypeANSI
Specification ReferenceANSI-SR24F2002

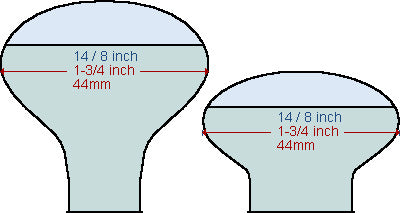

R14 Shape

R14
Diameter Designation14/8"
Glass Diameter 1 3/4" (1.75")
Shape CodeR
Shape ClassificationBlown Reflector

CC-2V Filament

CC-2V
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
General Electric80923BDK 120V, 100W
Microlites120-100-03KR
Canimpex120-100-03KR

BDK may also be listed as:
BDK ANSIBDK ASABDK BULB-DIRECTBDK INTERLIGHT
BDK LAMPTECHBDK WIKOBDK-120 ANSIBDK-120 ASA
BDK-120 VOLT ANSIBDK-120 VOLT ASABDK-120V ANSIBDK-120V ASA
BDK-120V-100WBDK-120V-100W ANSIBDK-120V-100W ASABDK-120V-100W-BA15D-R14-CC2V-INSIDE-FROSTED-3200CP-3200K-4H-HOR-2-11/16MOL-I-REFLECTOR-PHOTOFLOOD-MEDIUM-BEAM-30DEGREES
BDK-120V/120V/100W/BA15D ANSIBDK/120V/100W/BA15D ANSIBDK/120V/100W/BA15D/R14 ANSIBDK/R14-120V-100W-DC-BAYONET LAMPTECH
I/120V/100W/BA15D/R14/CC2V/4HI/120V/100W/BA15D/R14/CC2V/4H/BDKI/120V/100W/BA15D/R14/FR/4HI/120V/100W/BA15D/R14/FR/4H/BDK
SP100R14BA15DFR-120VSP100R14BA15DFR120V-BDKSP100R14DC120VSP100R14DCFR-120V
SP100R14DCFR120V-BDK
