BEY ANSI Code

BEY ANSI is a G16.5 lamp with a P15s30A base operating at 100 watts and 20 volts. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BEY lamps.

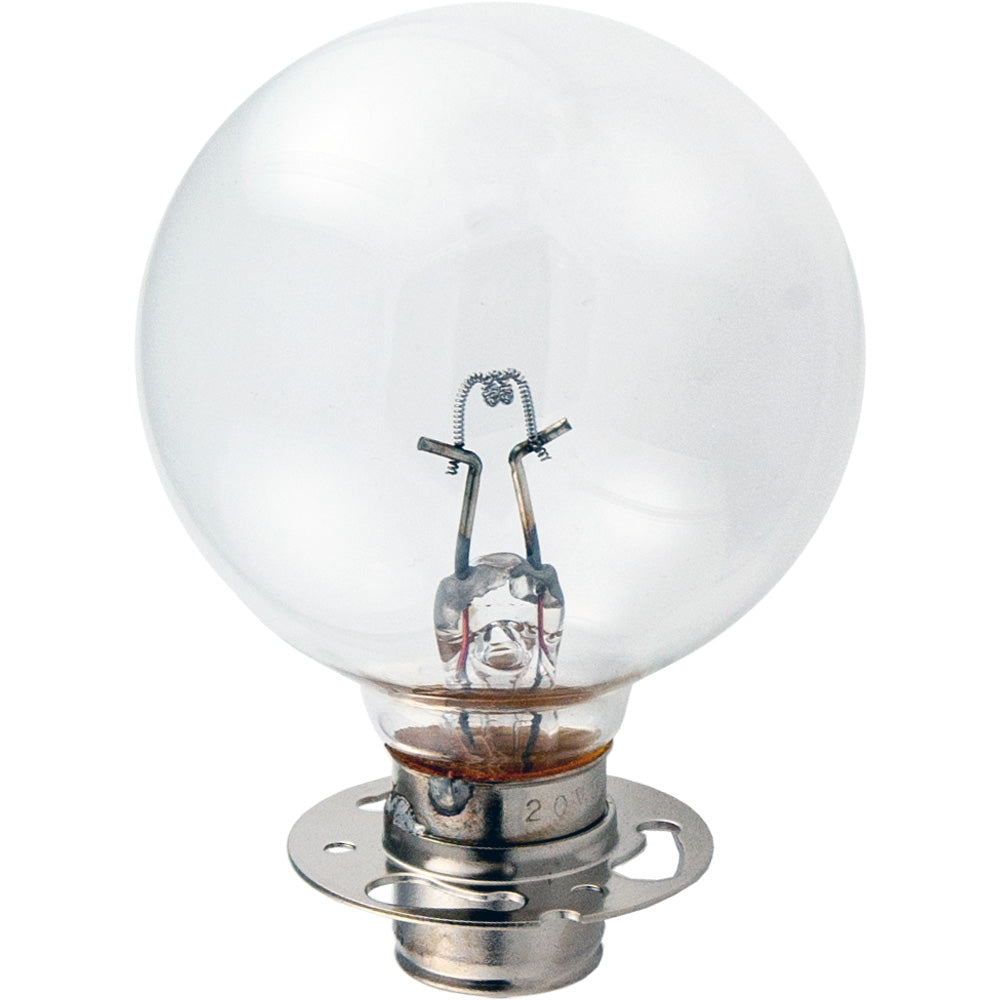

BEY Photograph

BEY

Electrical Specifications

Amps5
Volts20
Watts100

Photometrics

Light Center Length (LCL)1 3/8
Lumens2700

Physical Characteristics

BaseP15s30A
Bulb ShapeG16.5
FilamentCC-6
FinishClear
Max Overall Length (MOL)3

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeBEY
Code TypeANSI
Specification ReferenceANSI-SR24F2002

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites20-100-64
Canimpex20-100-64

Equipment Used In

BrandModelType
AO Reichert Illuminator 370
Bausch & Lomb 42-42-86
Boxlight 1A01167 BLACKBOX 3000
Ken-A-Vision Tech A-1 Microprojector
Ken-A-Vision Trig K Microprojector
Ken-A-Vision Tyro E Microprojector
