BFE ANSI Code

BFE ANSI is a T20 lamp with a P28s base operating at 750 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BFE lamps.

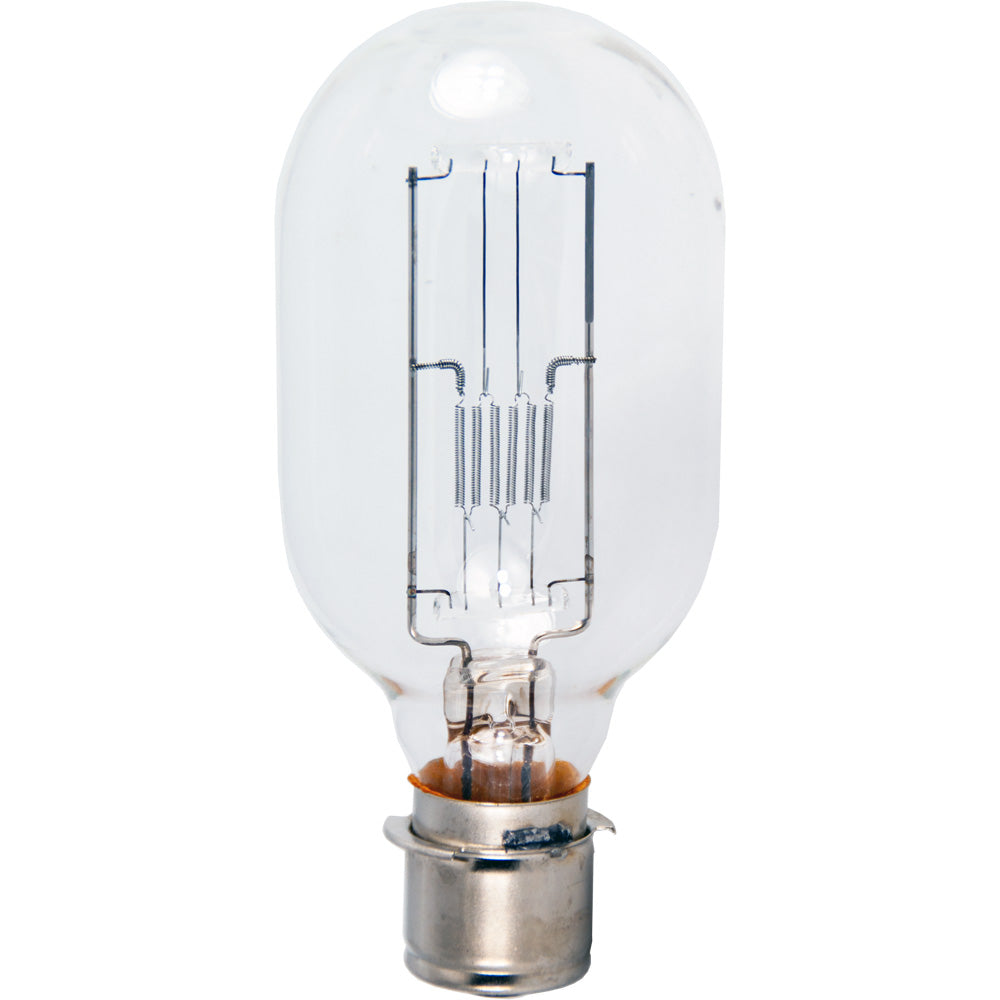

BFE Photograph

BFE

Electrical Specifications

Amps6.25
Volts120
Watts750

Photometrics

Beam SpreadMedium Spot
Candlepower1400
Color Temperature3000
Light Center Length (LCL)2 3/16
Lumens17000

Physical Characteristics

BaseP28s
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionBD ± 45°
Life Hours200

General Information
Lamp CodeBFE
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-750-63E
Canimpex120-750-63E

BFE may also be listed as:
00090 EIKO00090 UPC00090 WIKO031293000903 EIKO
1000052750-T20-P-SPOT WESTINGHOUSE750-T20-P-SPOT-120 WESTINGHOUSE750-T20-P-SPOT-120V WESTINGHOUSE
750-T20-P28S-SPOT WESTINGHOUSE750-T20-P28S-SPOT-120 WESTINGHOUSE750-T20-P28S-SPOT-120V WESTINGHOUSE750-T20-PF-SPOT WESTINGHOUSE
750-T20-PF-SPOT-120 WESTINGHOUSE750-T20-PF-SPOT-120V WESTINGHOUSE750-T20-PREFOCUS-SPOT WESTINGHOUSE750-T20-PREFOCUS-SPOT-120 WESTINGHOUSE
750-T20-PREFOCUS-SPOT-120V WESTINGHOUSE750T20P/SP GENERAL-ELECTRIC750WATT-T20-P28S-SPOT WESTINGHOUSE750WATT-T20-P28S-SPOT-120 VOLT WESTINGHOUSE
761005 BULBRITEBFE ANSIBFE ASABFE BULBRITE
BFE EIKOBFE GENERAL-ELECTRICBFE INTERLIGHTBFE WESTINGHOUSE
BFE WIKOBFE-120 ANSIBFE-120 ASABFE-120 VOLT ANSI
BFE-120 VOLT ASABFE-120V ANSIBFE-120V ASABFE-120V-750W
BFE-120V-750W ANSIBFE-120V-750W ASABFE-120V-750W-P28S-T20-C13-CLEAR-17000L-3000K-200H-BD45-5-3/4MOL-2-3/16LCL-I-PROJECTIONBFE-120V/120V/750W/P28S ANSI
BFE/120V/750W/P28S ANSII/120V/750W/P28S/T20/C13/200HI/120V/750W/P28S/T20/C13/200H/BFEI/120V/750W/P28S/T20/CL/200H
I/120V/750W/P28S/T20/CL/200H/BFEKP-20-H-2 KONDOPH-750-T20-P-SPOT WESTINGHOUSEPH-750-T20-P-SPOT-120 WESTINGHOUSE
PH-750-T20-P-SPOT-120V WESTINGHOUSEPH-750-T20-P28S-SPOT WESTINGHOUSEPH-750-T20-P28S-SPOT-120 WESTINGHOUSEPH-750-T20-P28S-SPOT-120V WESTINGHOUSE
PH-750-T20-PF-SPOT WESTINGHOUSEPH-750-T20-PF-SPOT-120 WESTINGHOUSEPH-750-T20-PF-SPOT-120V WESTINGHOUSEPH-750-T20-PREFOCUS-SPOT WESTINGHOUSE
PH-750-T20-PREFOCUS-SPOT-120 WESTINGHOUSEPH-750-T20-PREFOCUS-SPOT-120V WESTINGHOUSEPH-750W-T20-P-SPOT WESTINGHOUSEPH-750W-T20-P-SPOT-120 WESTINGHOUSE
PH-750W-T20-P-SPOT-120V WESTINGHOUSEPH-750W-T20-P28S-SPOT WESTINGHOUSEPH-750W-T20-P28S-SPOT-120 WESTINGHOUSEPH-750W-T20-P28S-SPOT-120V WESTINGHOUSE
PH-750W-T20-PF-SPOT WESTINGHOUSEPH-750W-T20-PF-SPOT-120 WESTINGHOUSEPH-750W-T20-PF-SPOT-120V WESTINGHOUSEPH-750W-T20-PREFOCUS-SPOT WESTINGHOUSE
PH-750W-T20-PREFOCUS-SPOT-120 WESTINGHOUSEPH-750W-T20-PREFOCUS-SPOT-120V WESTINGHOUSEPH-750WATT-T20-P28S-SPOT WESTINGHOUSEPH-750WATT-T20-P28S-SPOT-120 VOLT WESTINGHOUSE
SP750T20P28SC13120V-BFESP750T20P28SCL120V-BFESP750T20PC13120V-BFESP750T20PCL120V-BFE
