BFR ANSI Code

BFR ANSI is a S8 lamp with a P15s30A base operating at 32.4 watts and 10.8 volts. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BFR lamps.

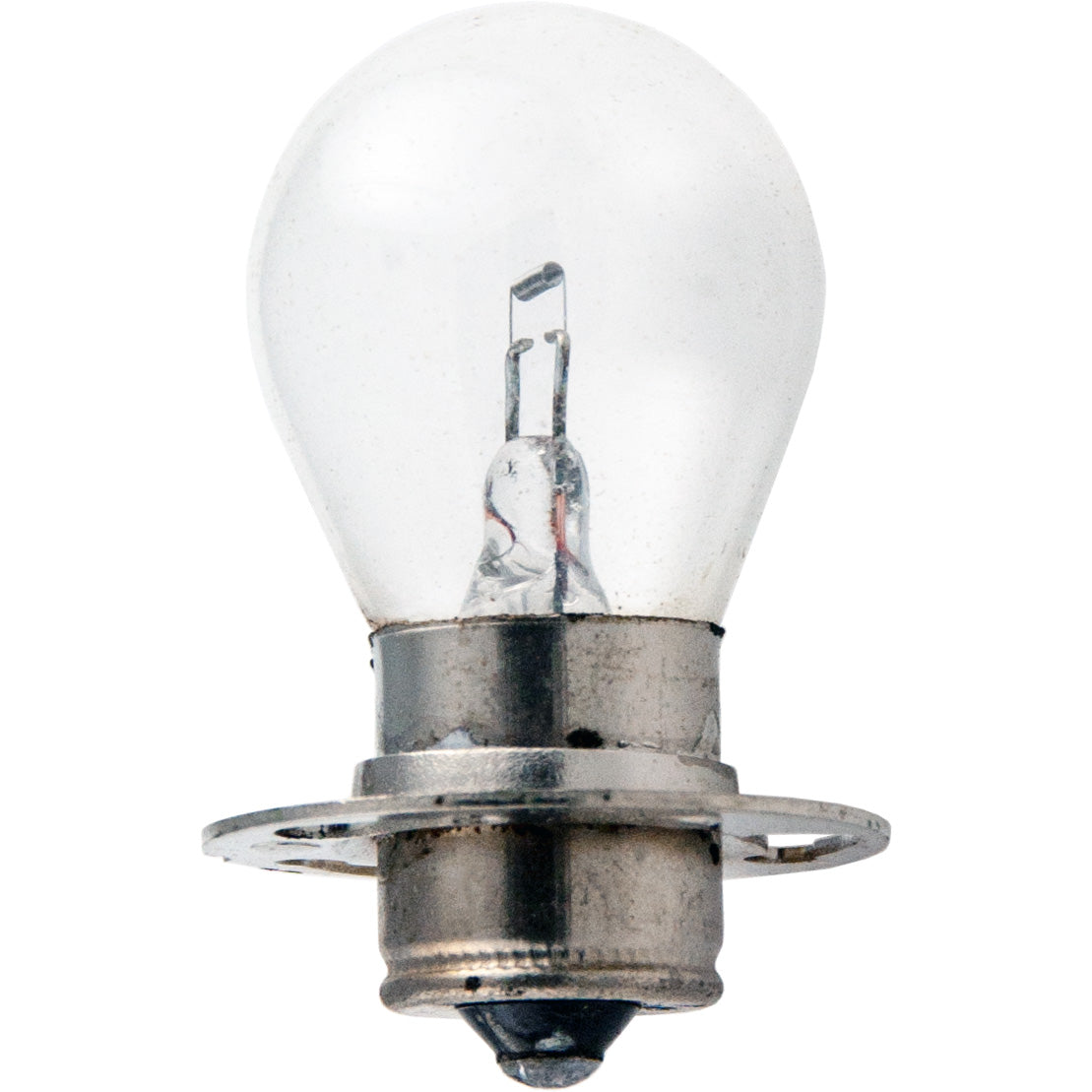

BFR Photograph

BFR

Electrical Specifications

Amps3
Volts10.8
Watts32.4

Photometrics

Candlepower56
Light Center Length (LCL)1" (25.4mm)
Lumens700

Physical Characteristics

BaseP15s30A
Bulb ShapeS8
FilamentC-6
Max Overall Length (MOL)2" (50.8mm)

Operating Characteristics

Life Hours50

General Information
Lamp CodeBFR
Code TypeANSI

S8 Shape

S8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeS
Shape ClassificationStraight Sided

C-6 Filament

C-6
Coil TypeC - Single Coil

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIBFR

Equipment Used In

BrandModelType
LaBelle Industries Courier 2 Projector Slide / Filmstrip
LaBelle Industries Courier 1 Projector Slide / Filmstrip
