BGB ANSI Code

BGB ANSI is a S8 lamp with a P15d30A base operating at 3 watts and 4 volts. It has a color temperature of 2800 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BGB lamps.

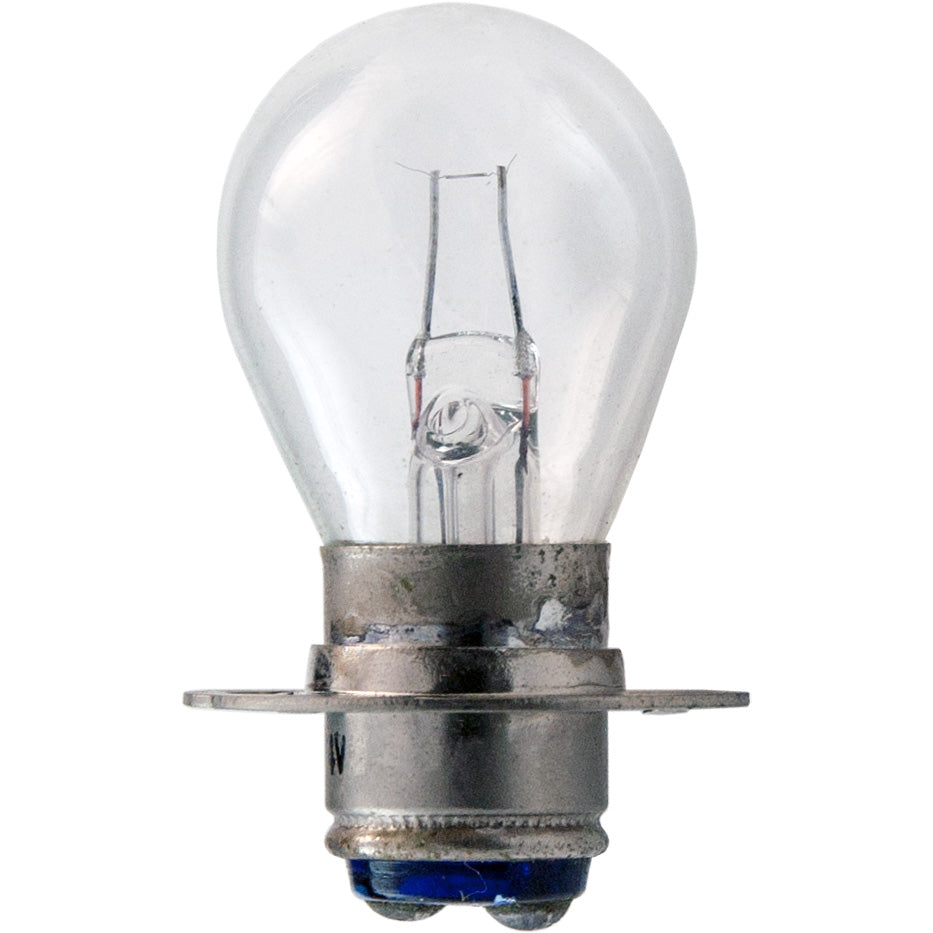

BGB Photograph

BGB

Electrical Specifications

Amps0.75
Volts4
Watts3

Photometrics

Candlepower2.2
Color Temperature2800
Light Center Length (LCL)1 1/8
Lumens30

Physical Characteristics

BaseP15d30A
Bulb ShapeS8
FilamentC-6
FinishClear
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionAny
Life Hours50

General Information
Lamp CodeBGB
Code TypeANSI
Specification ReferenceANSI-SR24F2002

S8 Shape

S8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeS
Shape ClassificationStraight Sided

C-6 Filament

C-6
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsBGB0.75A, 4V
Microlites04-003-67B
Canimpex04-003-67B

Equipment Used In

BrandModelType
RCA Magnetic 002 Projector
RCA M1-35000 Projector
RCA M1-35017-A Projector
RCA Magnetic M1-35000 (green finish) Projector
RCA PG-201 Projector
RCA Magnetic M1-35007 Projector
RCA 400 Senior Projector
RCA Magnetic M1-35008 Projector
RCA Magnetic 007 Projector
RCA 35016-A Projector
RCA Magnetic M1-35050 Projector
RCA M1-35016-A Projector
RCA Magnetic M1-014 (green finish) Projector
RCA Magnetic M1-008 (green finish) Projector
RCA Magnetic M1-007 (green finish) Projector
RCA Magnetic 050 Projector
RCA Magnetic TP-16 Projector
RCA Magnetic M1-050 (green finish) Projector
RCA FP-205 Projector
RCA Magnetic 014 Projector
RCA Magnetic M1-35000-050 (green finish) Projector
RCA Magnetic M1-35000-014 (green finish) Projector
RCA 400 Junior Projector
RCA Magnetic M1-002 (green finish) Projector
RCA M1-35018-A Projector
RCA FP-20 Projector
RCA Magnetic M1-35000-002 (green finish) Projector
RCA Magnetic M1-35000-008 (green finish) Projector
RCA PG-200-A Projector
RCA FP-10 Projector
RCA FP-5 Projector
RCA Magnetic 008 Projector
RCA 35017-A Projector
RCA Magnetic M1-35014 Projector
RCA Magnetic M1-35002 Projector
RCA 35018-A Projector
RCA PG-170 Projector
RCA Senior Projector
RCA M1-35006 Projector
RCA Magnetic M1-35000-007 (green finish) Projector

BGB may also be listed as:
0-3/4AS8DCP SYLVANIA0-3/4AS8DCP WESTINGHOUSE0-3/4AS8DCP4 SYLVANIA0-3/4AS8DCP4V SYLVANIA
0-3/4AS8P15D SYLVANIA0-3/4AS8P15D WESTINGHOUSE0-3/4AS8P15D4 SYLVANIA0-3/4AS8P15D4V SYLVANIA
0-3/4AS8P30D SYLVANIA0-3/4AS8P30D WESTINGHOUSE0-3/4AS8P30D4 SYLVANIA0-3/4AS8P30D4V SYLVANIA
0.75A-S8-DCP SYLVANIA0.75A-S8-DCP WESTINGHOUSE0.75A-S8-DCP-4 SYLVANIA0.75A-S8-DCP-4V SYLVANIA
0.75A-S8-P15D SYLVANIA0.75A-S8-P15D WESTINGHOUSE0.75A-S8-P15D-4 SYLVANIA0.75A-S8-P15D-4V SYLVANIA
0.75A-S8-P30D SYLVANIA0.75A-S8-P30D WESTINGHOUSE0.75A-S8-P30D-4 SYLVANIA0.75A-S8-P30D-4V SYLVANIA
0.75A/S8/DCP0.75A/S8/DCP/CL/4V0.75A/S8/P15D30/CL/4V0.75AMP-S8-P15D30 SYLVANIA
0.75AMP-S8-P15D30 WESTINGHOUSE0.75AMP-S8-P15D30-4VOLT SYLVANIA00110 WIKO031293001108 EIKO
17107 SYLVANIA27807 RCA3129300110 WIKO7250-C PHILIPS
75A-S8-DCP SYLVANIA75A-S8-DCP WESTINGHOUSE75A-S8-DCP-4 SYLVANIA75A-S8-DCP-4V SYLVANIA
75A-S8-P15D SYLVANIA75A-S8-P15D WESTINGHOUSE75A-S8-P15D-4 SYLVANIA75A-S8-P15D-4V SYLVANIA
75A-S8-P30D SYLVANIA75A-S8-P30D WESTINGHOUSE75A-S8-P30D-4 SYLVANIA75A-S8-P30D-4V SYLVANIA
75A-S8DCP PHILIPS75A-S8DCP USA75A/S8/DCP/CL/4V75A/S8/P15D30/CL/4V
75A/S8DCP GENERAL-ELECTRIC75AMP-S8-P15D30 SYLVANIA75AMP-S8-P15D30 WESTINGHOUSE75AMP-S8-P15D30-4VOLT SYLVANIA
BGB ANSIBGB ASABGB GENERAL-ELECTRICBGB INTERLIGHT
BGB MICROLAMPBGB SYLVANIABGB WESTINGHOUSEBGB WIKO
BGB-4 ANSIBGB-4 ASABGB-4V ANSIBGB-4V ASA
BGB-4V-0.75ABGB-4V-0.75A ANSIBGB-4V-0.75A-P30D-P8-C6-CLEAR-28L-50H-ANY-2MOL-1-1/8LCL-I-SOUND-REPRODUCTIONBGB-4V-3W ANSI
BGB-4V-3W ASABGB-4V/4V/3W/P15D30A ANSIBGB-4VOLT ANSIBGB-4VOLT ASA
BGB-BGK ANSIBGB-BGK ASABGB-BGK EIKOBGB-BGK WIKO
BGB-BGK/S-8-4V-.75A-DC-PREFOCUS LAMPTECHBGB/4V GENERAL-ELECTRICBGB/4V/3W/P15D30A ANSIBGB/BGK INTERLIGHT
BGB/BGK LAMPTECHBGB/BGK MICROLAMPBGB/BGK-75A/S8/DCPBGB/BGK/4V GENERAL-ELECTRIC
EQ-G/31 ELECTROQUIPG/31 ATLASG/31 LIFG/31 MAZDA
G/31 THORNG/31-4V-0.75A-P30D-T25-C6-CLEAR-30L-50H-HOR30-51MMMOL-28.5MMLCL-PLUS-MINUS-0.5MM-IG31-4V LIFG31-4V-0.75A
G31-4V-0.75A ATLASG31-4V-0.75A LIFG31-4V-0.75A THORNG31-4V-3W MAZDA
G31-4V-3W-P15D30 LIFI/4V/0.75A/P15D30/S8/HOI/4V/0.75A/P15D30/S8/PHOTOI/4V/0.75A/P15H/S25MM/C6/29MMLCL/BU/30L/51MMMOL/50H/7250C PHILIPS
I/4V/3W/P15D30/S8I/4V/3W/P15D30/S8/29MMLCL/48MMMOLI/4V/3W/P15D30/S8/29MMLCL/HO/48MMMOLI/4V/3W/P15D30/S8/50H
I/4V/3W/P15D30/S8/C/50HL/G31-4V-3W MAZDAI/4V/3W/P15D30/S8/C6I/4V/3W/P15D30/S8/C6/29MMLCL/48MMMOLI/4V/3W/P15D30/S8/C6/29MMLCL/HO/48MMMOL
I/4V/3W/P15D30/S8/C6/50HI/4V/3W/P15D30/S8/C6/50H/BGBI/4V/3W/P15D30/S8/C6/50H/G31-4V-3W MAZDAI/4V/3W/P15D30/S8/C6/BGB
I/4V/3W/P15D30/S8/C6/HOI/4V/3W/P15D30/S8/CL/29MMLCL/48MMMOLI/4V/3W/P15D30/S8/CL/29MMLCL/HO/48MMMOLI/4V/3W/P15D30/S8/CL/50H
I/4V/3W/P15D30/S8/CL/50H/BGBI/4V/3W/P15D30/S8/CL/50H/G31-4V-3W MAZDAI/4V/3W/P15D30/S8/CL/50H/G31-4V-3W-P15D30 LIFI/4V/3W/P15D30/S8/CL/50H/SP3S8DCPCL4V
I/4V/3W/P15D30/S8/CL/BGBI/4V/3W/P15D30/S8/CL/G31-4V-3W MAZDAI/4V/3W/P15D30/S8/CL/HO/G31 MAZDAI/4V/3W/P15D30/S8/CL/HO/G31-4V-3W MAZDA
I/4V/3W/P15D30/S8/HOI/4V/3W/P15D30/S8/HO/G31 MAZDAI/4V/3W/P15D30A/S8/C6/50H/BGBI/4V/3W/P15D30A/S8/C6/BGB
I/4V/3W/P15D30A/S8/CL/50H/BGBI/4V/3W/P15D30A/S8/CL/BGBI/4V/3W/P15H/S8/C6/29MMLCL/BU/30L/51MMMOL/50H/7250C PHILIPSKE-010 KONDO
P30D-4V-0.75A-SOUND-EXCITER-PROJECTION ELECTROQUIPPH-.75A-S8-DCP WESTINGHOUSEPH-.75A-S8-DCP-4 WESTINGHOUSEPH-.75A-S8-DCP-4V WESTINGHOUSE
PH-.75A-S8-P15D WESTINGHOUSEPH-.75A-S8-P15D-4 WESTINGHOUSEPH-.75A-S8-P15D-4V WESTINGHOUSEPH-.75A-S8-P30D WESTINGHOUSE
PH-.75A-S8-P30D-4 WESTINGHOUSEPH-.75A-S8-P30D-4V WESTINGHOUSEPH-0.75A-S8-DCP WESTINGHOUSEPH-0.75A-S8-DCP-4 WESTINGHOUSE
PH-0.75A-S8-DCP-4V WESTINGHOUSEPH-0.75A-S8-P15D WESTINGHOUSEPH-0.75A-S8-P15D-4 WESTINGHOUSEPH-0.75A-S8-P15D-4V WESTINGHOUSE
PH-0.75A-S8-P30D WESTINGHOUSEPH-0.75A-S8-P30D-4 WESTINGHOUSEPH-0.75A-S8-P30D-4V WESTINGHOUSEPH-0.75AMP-S8-P15D30 WESTINGHOUSE
PH-0.75AMP-S8-P15D30-4VOLT WESTINGHOUSEPH-3/4A-S8-DCP WESTINGHOUSEPH-3/4A-S8-DCP-4 WESTINGHOUSEPH-3/4A-S8-DCP-4V WESTINGHOUSE
PH-3/4A-S8-P15D WESTINGHOUSEPH-3/4A-S8-P15D-4 WESTINGHOUSEPH-3/4A-S8-P15D-4V WESTINGHOUSEPH-3/4A-S8-P30D WESTINGHOUSE
PH-3/4A-S8-P30D-4 WESTINGHOUSEPH-3/4A-S8-P30D-4V WESTINGHOUSEPH-75A-S8-DCP WESTINGHOUSEPH-75A-S8-DCP-4 WESTINGHOUSE
PH-75A-S8-DCP-4V WESTINGHOUSEPH-75A-S8-P15D WESTINGHOUSEPH-75A-S8-P15D-4 WESTINGHOUSEPH-75A-S8-P15D-4V WESTINGHOUSE
PH-75A-S8-P30D WESTINGHOUSEPH-75A-S8-P30D-4 WESTINGHOUSEPH-75A-S8-P30D-4V WESTINGHOUSEPH-75AMP-S8-P15D30 WESTINGHOUSE
PH-75AMP-S8-P15D30-4VOLT WESTINGHOUSEPH/0.75A/S8/DCPPH/0.75A/S8/P15D30/CL/4VPH/75A/S8DCP GENERAL-ELECTRIC
PROJECTION/4V/0.75A/P30D/51X25.5H ELECTROQUIPSP3S8DCPAC64V-BGBSP3S8DCPACL4V-BGBSP3S8DCPC6-4V
SP3S8DCPC64V-BGBSP3S8DCPCL-4VSP3S8DCPCL4V-BGBSP3S8P15D30AC64V-BGB
SP3S8P15D30ACL4V-BGB
