BHB ANSI Code

BHB ANSI is a MR13D lamp with a GY7.9 base operating at 250 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Dichroic finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BHB lamps.

Electrical Specifications

Amps2.08
Volts120
Watts250

Photometrics

Color Temperature3350
Light Center Length (LCL)0.626" (15.9mm)

Physical Characteristics

BaseGY7.9
Bulb ShapeMR13D
FilamentCC-8
FinishDichroic
Max Overall Length (MOL)1 2/3

Operating Characteristics

Burn PositionHorizontal
Life Hours25

General Information
Lamp CodeBHB
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR13D Shape

MR13D
Diameter Designation13/8"
Glass Diameter 1 5/8" (1.625")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

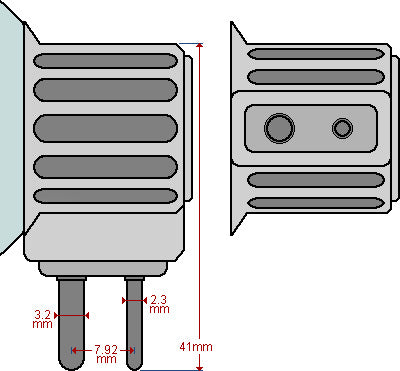

GY7.9 Base

GY7.9

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsBHBBHB
Standard Products11928BHB
Rexim, LLCRM-126
Microlites120-250-99R
Canimpex120-250-99R

Equipment Used In

BrandModelType
Bell and Howell Filmosound 2590-A
Bell and Howell Filmosound 1590-A
Bell and Howell Slot Load 1575-A
Bell and Howell Filmosound 1590
Bell and Howell Autoload 1550-L
Bell and Howell Filmosound 1575-A
Bell and Howell Autoload 1590
Bell and Howell Filmosound 1550-L
Bell and Howell Autoload 1590-A
Visual Instrumentation Corp. 16N-2
Visual Instrumentation Corp. 16N-1

BHB may also be listed as:
0001122 BURTON- MEDICAL00120 EIKO00120 UPC00120 WIKO
031293001207 EIKO048777103647 UPC1000057 BLV1000057 USHIO
130299 NARVA130299 ORBITEC130299-H63090-GY792-44X36-120V-BHB-250W ORBITEC130299/120V/250W ORBITEC
130299/120V/250W/GX7.9 ORBITEC2000 DUALITE3129300120 WIKO40658 GENERAL-ELECTRIC
54954 SYLVANIA54954/BHB SYLVANIA63090B-250W-G7.9 USHIO
BHB ANSIBHB ASABHB BULB-DIRECTBHB EIKO
BHB GENERAL-ELECTRICBHB HIDSIBHB INTERLIGHTBHB KONDO
BHB LAMPTECHBHB MICROLAMPBHB ORBITECBHB SYLVANIA
BHB USHIOBHB WESTINGHOUSEBHB WIKOBHB-120 VOLT ANSI
BHB-120 VOLT ASABHB-120V ANSIBHB-120V ASABHB-120V-250W
BHB-120V-250W ANSIBHB-120V-250W ASABHB-120V-250W PACIFIC-ELECTRONICSBHB-120V-250W-G7.9 USHIO
BHB-120V-250W-G7.9-MR-14-CC-8-OPEN-FRONT-3350K-25H-HOR-1-2/3MOL-Q-16MM-MOVIE-PROJECTOR-DICHROIC-REFLECTOR-WORKING-DIST.-2-5/8BHB-120V-250W-G7.9-MR14-CC8-OPEN-FRONT-3350K-25H-HOR-1-2/3MOL-Q-16MM-MOVIE-PROJECTOR-DICHROIC-REFLECTOR-WORKING-DIST-2-5/8BHB-120V-250W/G7.9/44MM-DICHROIC-REFLECTOR/BHB/120V/250W/44.5X44.5MM/15.9MMLCL/65.8L/3340K/50H PACIFIC-ELECTRONICSBHB-120V-25H/120V/250W/GY7.9/MR13D/25H ANSI
BHB-120V/120V/250W/GY7.9/MR13D ANSIBHB-125V/125V/250W/GY7.9/MR13D ANSIBHB-250W-120V-G7.9 USHIOBHB-5/125V/250W/GY7.9/MR13D ANSI
BHB-GE LAMPTECHBHB-GE/250W-120V-G7.9 LAMPTECHBHB-JCR120V250W-44.5MMDIA-47.5MMMOL-15.9MMLCL-SPECULAR-CC-8-65.8MMWD-3400K-50H-HORIZ-1000057 BLVBHB-JCR120V250W-44.5MMDIA-47.5MMMOL-15.9MMLCL-SPECULAR-CC-8-65.8MMWD-3400K-50H-HORIZ-1000057 USHIO
BHB/120V/250W PHILIPSBHB/120V/250W/G7.9BHB/120V/250W/GX7.9 ANSIBHB/120V/250W/GY7.9/MR13D ANSI
BHB/120V/250W/GY7.9/MR13D/25H ANSIBHB/125V/250W ANSIBHB/125V/250W/GY7.9/MR13D ANSIBHB/MR14-120V-250W LAMPTECH
BHB/UNIT GENERAL-ELECTRICBHB120V250W/BHB-120V-250W PHILIPSBHB5BHB5-125V-250W ANSI
BHB5-125V-250W ASABW-BHBDUAL-LITE-2000 DESIGNS-FOR-VISIONDUAL-LITE-3000 DESIGNS-FOR-VISION
G7.9-MR14-120V-250W-BHB-JCR120V-250W-44.5MMDIA-47.5MMMOL-15.9MMLCL-SPECULAR-CC-8-65.8MMWD-3400K-50H-HORIZ-1000057 BLVG7.9-MR14-120V-250W-BHB-JCR120V-250W-44.5MMDIA-47.5MMMOL-15.9MMLCL-SPECULAR-CC-8-65.8MMWD-3400K-50H-HORIZ-1000057 USHIOGY7.92-44X36-120V-250W-BHB/H63090/130299 ORBITECGY7.92-44X36MM-120V-250W-BHB/H63090/130299 ORBITEC
GY792-44X36-120V-BHB-250W ORBITECH-63090 ORBITECH/120V/250W/G7.9/MR13D/65.8MMWDH/120V/250W/G7.9/MR13D/66MMWD
H/120V/250W/GX7.9/MR13D/67MMWD/25HH/120V/250W/GY7.9/MR13D/65.8MMWDH/120V/250W/GY7.9/MR13D/66MMWDH/120V/250W/GY7.9/MR13D/CC6/25H
H/120V/250W/GY7.9/MR13D/CC6/25H/BHBH/125V/250W/G7.9/MR13D/65.8MMWDH/125V/250W/G7.9/MR13D/66MMWDH/125V/250W/GY7.9/MR13D/65.8MMWD
H/125V/250W/GY7.9/MR13D/66MMWDH/125V/250W/GY7.9/MR13D/CC6/25HH/125V/250W/GY7.9/MR13D/CC6/25H/BHB-5H432 HYBEC
H63090-GY792-44X36-120V-BHB-250W ORBITECH63090/120V/250W ORBITECH63090/120V/250W/GX7.9 ORBITECJCR120V-250W/120V/250W/G7.9 USHIO
JCR120V-250W/120V/250W/G7.9/BHB USHIOJCR120V-250W/AX/65.8MMWD/50H USHIOJCR120V-250W/BHB USHIOJCR120V-250W/G7.9 USHIO
JCR120V250W-G7.9/BHB USHIOMR-14/250W/120V/STD/VOLT/G7.9 STANDARDPROQ/250W/MR13/GY7.9/120V/130299 NARVASPQ250MR13DGY7.9CC6-120V
SPQ250MR13DGY7.9CC6-125VSPQ250MR13DGY7.9CC6120V-BHBSPQ250MR13DGY7.9CC6125V-BHB-5SPQ250MR13DGY7.9CL-120V
SPQ250MR13DGY7.9CL-125VSPQ250MR13DGY7.9CL120V-BHBSPQ250MR13DGY7.9CL125V-BHB-5
