BHR ANSI Code

BHR ANSI is a S11 lamp with a BA15d base operating at 20 watts and 100 volts. It has a color temperature of 2600 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BHR lamps.

Electrical Specifications

Amps0.2
Volts100
Watts20

Photometrics

Candlepower13
Color Temperature2600
Light Center Length (LCL)1.37" (34.9mm)
Lumens160

Physical Characteristics

BaseBA15d
Bulb ShapeS11
FilamentC-7A
FinishClear
Max Overall Length (MOL)2.37" (60.3mm)

Operating Characteristics

Life Hours500

General Information
Lamp CodeBHR
Code TypeANSI

S11 Shape

S11
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeS
Shape ClassificationStraight Sided

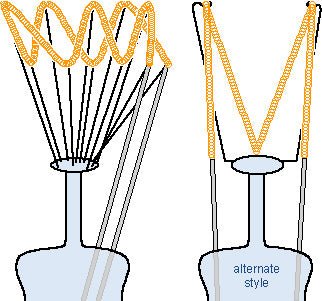

C-7A Filament

C-7A
Coil TypeC - Single Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIBHR

Equipment Used In

BrandModelType
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17681-EE Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17681-BB Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17681-AA Overhead Projector
Beseler Photo Marketing (Charles Beseler) Porta-Scribe 17681-CC Overhead Projector

BHR may also be listed as:
BHRBHR ANSIBHR ASABHR GENERAL-ELECTRIC
BHR-100 ANSIBHR-100 ASABHR-100V ANSIBHR-100V ASA
BHR-100V/100V/20W/BA15D ANSIBHR-100VOLT ANSIBHR-100VOLT ASABHR/100V GENERAL-ELECTRIC
BHR/100V/20W ANSIBHR/100V/20W/BA15D ANSII/100V/20W/BA15D/S11I/100V/20W/BA15D/S11/C7A/500H
I/100V/20W/BA15D/S11/C7A/500H/BHRI/100V/20W/BA15D/S11/CL/500HI/100V/20W/BA15D/S11/CL/500H/BHRSP20S11BA15DC7A-100V
SP20S11BA15DC7A100V-BHRSP20S11BA15DCL100VSP20S11BA15DCL100V-BHRSP20S11DCC7A-100V
SP20S11DCC7A100V-BHRSP20S11DCCL100VSP20S11DCCL100V-BHR
