BLC ANSI Code
BLC ANSI is a S11 lamp with a BA15d base operating at 30 watts and 120 volts. It has a color temperature of 2775 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BLC lamps.

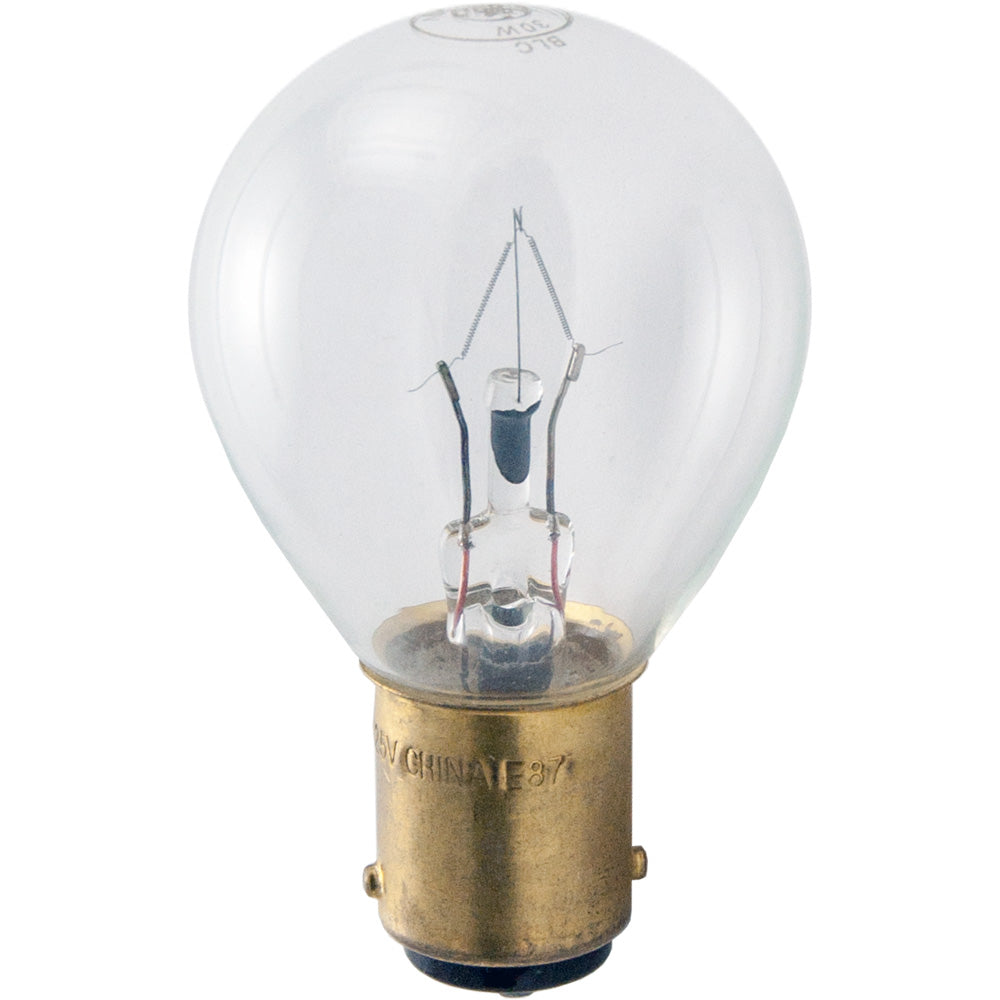

BLC Photograph |
 |
Electrical Specifications | |
| Amps | 0.25 |
|---|---|
| Volts | 120 |
| Watts | 30 |
Photometrics | |
| Candlepower | 32 |
|---|---|
| Color Temperature | 2775 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 400 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | S11 |
| Filament | CC-2V |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | BLC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
S11 Shape | |
 | |
| Diameter Designation | 11/8" |
|---|---|
| Glass Diameter | 1 3/8" (1.375") |
| Shape Code | S |
| Shape Classification | Straight Sided |

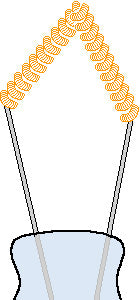

CC-2V Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

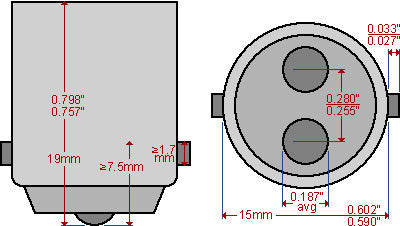

BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | BLC | BLC | |
| Standard Products | 11365 | S-11/30W/115-120V/BA15D/BLC | |
| Microlites | 115-030-03 | ||
| Canimpex | 115-030-03 | ||
Equipment Used In | ||
| Brand | Model | Type |
| American Masterpieces | Projecto-Master | |
| Atlas Rand Corp. | K-200 | 8mm Movie Editor |
| Atlas Rand Corp. | K-250 | 8mm Movie Editor |
| Atlas Warner | Super 8 Editor | Viewer/Editing |
| Atlas Warner | Super Screen 400 | |
| Atlas Warner | Super 8 Editor 300 | Viewer/Editing |
| Atlas Warner | Super Screen 500 | |
| Atlas Warner | 300 | |
| Baia Engineering | Editor 2000 | 16mm Viewer/Editing |
| Baia Engineering | Ediviewer Mark I | 8mm & 16mm Viewer/Editing |
| Bausch & Lomb | 31-31-71-03 | |
| Bausch & Lomb | Galen 31-70-01 | |
| Bausch & Lomb | 31-31-71-05 | |
| Bell and Howell | Autoviewer 735 | |
| Bell and Howell | Autoviewer 735-F | |
| Bell and Howell | Autoviewer 735-B | |
| Bell and Howell | Autoviewer 735-D | |
| Bell and Howell | Autoviewer 735-E | |
| Bell and Howell | Autoviewer 735-C | |
| Bell and Howell | Autoviewer 735-A | |
| Compco Corp. | Corona Super Editor | 8mm & 16mm Viewer/Editing |
| Compco Corp. | Franklin President Dual Editor | 16mm Viewer/Editing |
| Compco Corp. | Franklin Super Editor | 16mm Viewer/Editing |
| Compco Corp. | Super | 16mm Viewer/Editing |
| Craig Research | CRAIG-READER | Reader Film |
| Dukane | Cassette Mini Matic 28A46A | Projector |
| Dukane | Cassette Mini Matic 28A46 | Projector |
| Dukane | Silent 28A46A | Projector |
| Dukane | Mini-Matic II 28A46A | Projector |
| Dukane | Silent 28A64A | Projector |
| Dukane | Cassette Mini Matic 28A40 | Projector |
| GAVI (General Audio Visual Inc.) | Beacon | 35mm Filmstrip Viewer |
| GAVI (General Audio Visual Inc.) | FS-150 | |
| GAVI (General Audio Visual Inc.) | FS-155 | |
| GAVI (General Audio Visual Inc.) | FS-100 | |
| GAVI (General Audio Visual Inc.) | 150 Beacon | Viewer |
| GAVI (General Audio Visual Inc.) | 100 Beacon | Viewer |
| Hudson Photographic Industries (HPI) | AV-430 | Projector |
| Hudson Photographic Industries (HPI) | Dual 8 | Projector |
| Hudson Photographic Industries (HPI) | 330 | Projector |
| Hudson Photographic Industries (HPI) | Standard 8 AV-430 | Projector |
| Hudson Photographic Industries (HPI) | Super 8 AV-430 | Projector |
| Hudson Photographic Industries (HPI) | Prima Standard 8 | Projector |
| Hudson Photographic Industries (HPI) | 331-2 | Projector |
| Hudson Photographic Industries (HPI) | Standard 8 | Projector |
| Hudson Photographic Industries (HPI) | AV-435 | Projector |
| Hudson Photographic Industries (HPI) | Super 8 | Projector |
| Hudson Photographic Industries (HPI) | Prima Standard 8 331-2 | Projector |
| Hudson Photographic Industries (HPI) | Prima Dual 8 436 | Projector |
| Hudson Photographic Industries (HPI) | Prima Super 8 AV-435 | Projector |
| Hudson Photographic Industries (HPI) | Prima 436 | Projector |
| Hudson Photographic Industries (HPI) | Prima Standard 8 AV-430 | Projector |
| Hudson Photographic Industries (HPI) | Prima Super 8 AV-430 | Projector |
| Hudson Photographic Industries (HPI) | Prima Dual 8 AV-435 | Projector |
| Hudson Photographic Industries (HPI) | Prima Super 8 | Projector |
| Hudson Photographic Industries (HPI) | Primar Standard 8 330 | Projector |
| Kalart Victor | Viewer Mark 2 | |
| Kalart Victor | SUPER-8 | |
| Kalart Victor | Editor Viewer EV Super 8 | |
| Kalart Victor | Craig Reader | |
| Kalart Victor | Viewer | |
| Kalart Victor | Editor Viewer EV-8 | |
| Kalart Victor | Editor | |
| Kalart Victor | Mark II | |
| Keystone Camera Co. Inc. | K-250 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | 250 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | K-200 | Projector Slide / Filmstrip |
| Medical Dynamics | 10020 | Medical |
| Olympus | OL8-B151 | |
| Olympus | 8-B152 | |
| Olympus | CHB | |
| Olympus | OL8-B152 | |
| Olympus | CHT | |
| Olympus | KK-2 | |
| Olympus | KHC | |
| Penncrest | 300S Super-8mm Editor Viewer | |
| Singer Corporation | Study Mate II | |
| Singer Corporation | Constellation Audio Study Mate | |
| Singer Corporation | Constellation Auto-Vance Study Mate II | |
| Singer Corporation | Study Mate Audio | |
| Singer Corporation | Graflex | |
| Singer Corporation | Graflex 2 | |
| Singer Corporation | Study Mate | |
| Singer Corporation | Auto-Vance 1 | |
| Singer Corporation | Study Mate Auto-Vance II | |
| Singer Corporation | Graflex 1 | |
| Singer Corporation | Constellation Auto-Vance Study Mate | |
| Standard Projector & Equipment | 111 Filmstrip Viewer | |
| Whitehouse Products | FS-150 | |
| Whitehouse Products | FS-250 | |
| Whitehouse Products | FS-100 | |
BLC may also be listed as: | |||
| 031293100207 EIKO | 048777103852 UPC | 1000060 BLV | 1000060 USHIO |
| 1000060-USHIO ANDRE | 10020 EIKO | 10020 UPC | 10020 WIKO |
| 15754 UNITRON | 29140 | 30-S11-DC-CLEAR-120V | 30/S11/DC/CL/120V |
| 30S11-93 WESTINGHOUSE | 30S11-93-120 WESTINGHOUSE | 30S11-93-120V WESTINGHOUSE | 30S11/93 GENERAL-ELECTRIC |
| 30S11DC120V | 30W/120V/S11/DC | 30W/S11/93 | 30W/S11/BA15D/CL/120V |
| 30WATT-S11-93 WESTINGHOUSE | 30WATT-S11-93-120 VOLT WESTINGHOUSE | 31-31-71-03 | 31-31-71-03 BULBDIRECT |
| 31-31-71-03/120 VOLT/30WATT BAUSCH/LOMB | 31-31-71-03/120V/130W BAUSCH/LOMB | 31-31-71-03/120V/30W BAUSCH/LOMB | 31-31-71-05 |
| 31-31-71-05 BULBDIRECT | 31-31-71-05/120 VOLT/30WATT BAUSCH/LOMB | 31-31-71-05/120V/130W BAUSCH/LOMB | 31-31-71-05/120V/30W BAUSCH/LOMB |
| 31-70-01 BAUSCH-LOMB | 3129310020 WIKO | 313171 BAUSCH-LOMB | 31317103 BAUSCH-LOMB |
| 31317105 BAUSCH-LOMB | 317001/MICROSCOPE BAUSCH-LOMB | 456-168 DUKANE | 5061 OLYMPUS |
| 8-B152 | 8-B152 BULBDIRECT | 8-B152 OLYMPUS | 8-B152/120 VOLT/30WATT OLYMPUS |
| 8-B152/120V/30W OLYMPUS | 8-B152/OLYMPUS INTERLIGHT | 8-C152 OLYMPUS | 8B152 USHIO |
| 8C152 | 8C152/120V/30W OLYMPUS | BA15D-30W-BLC-120V-T35MM-60.3MMMOL-34.9MMLCL-CC-2V-400L-2775K-50H-BD-HOR-1000060 BLV | BA15D-30W-BLC-120V-T35MM-60.3MMMOL-34.9MMLCL-CC-2V-400L-2775K-50H-BD-HOR-1000060 USHIO |
| BLC | BLC ANSI | BLC ASA | BLC BULB-DIRECT |
| BLC EIKO | BLC GENERAL-ELECTRIC | BLC INTERLIGHT | BLC KONDO |
| BLC LAMPTECH | BLC MICROLAMP | BLC SYLVANIA | BLC USHIO |
| BLC WESTINGHOUSE | BLC WIKO | BLC-115V/115V/30W/BA15D ANSI | BLC-120 ANSI |
| BLC-120 ASA | BLC-120 VOLT ANSI | BLC-120 VOLT ASA | BLC-120V |
| BLC-120V ANSI | BLC-120V ASA | BLC-120V-30W | BLC-120V-30W ANSI |
| BLC-120V-30W ASA | BLC-120V-30W-BA15D USHIO | BLC-120V-30W-BA15D-S11-CC2V-CLEAR-400L-2775K-50H-ANY-2-3/8MOL-1-3/8LCL-I-EDITOR-PROJECTOR | BLC-120V-T35MM-60.3MMMOL-34.9MMLCL-CC-2V-400L-2775K-50H-BD-HOR-1000060 BLV |
| BLC-120V-T35MM-60.3MMMOL-34.9MMLCL-CC-2V-400L-2775K-50H-BD-HOR-1000060 USHIO | BLC-120V/120V/30W/BA15D ANSI | BLC-125V/125V/30W/BA15D ANSI | BLC-30W-120V-BA15D USHIO |
| BLC-GE LAMPTECH | BLC-GE/PROJECTION-LAMP LAMPTECH | BLC-USHIO LAMPTECH | BLC-USHIO/30W-120V-S11-BA15D LAMPTECH |
| BLC/115V | BLC/115V-125V FOCUS | BLC/115V/30W ANSI | BLC/115V/30W/BA15D ANSI |
| BLC/120 | BLC/120V/30W/BA15D ANSI | BLC/125V ANSI | BLC/125V GENERAL-ELECTRIC |
| BLC/125V/30W ANSI | BLC/125V/30W/BA15D ANSI | BLC/30W/S11/120V/BA15D ANDRE | BLC/30W/S11/120V/BA15D/1000060 USHIO |
| BLC/30W/S11/120V/BA15D/1000060-USHIO ANDRE | BLC/S-11-120V-30W-DC-BAYONET LAMPTECH | BW-BLC | BW-BLC-GE |
| CH/MICROSCOPES OLYMPUS | CHB OLYMPUS | CHB/MICROSCOPE OLYMPUS | CHT OLYMPUS |
| CHT-MICROSCOPE OLYMPUS | CHT/MICROSCOPES OLYMPUS | CL70004 CARLEY-LAMPS | I/115V/30W/BA15D/S11/50H |
| I/115V/30W/BA15D/S11/CC2V/50H | I/115V/30W/BA15D/S11/CC2V/50H/BLC | I/115V/30W/BA15D/S11/CC2V/50H/BLC-115V | I/115V/30W/BA15D/S11/CL/50H |
| I/115V/30W/BA15D/S11/CL/50H/BLC-115V | I/115V/30W/BA15D/S11/PHOTO | I/120V/30W/BA15D/S11 | I/120V/30W/BA15D/S11/50H |
| I/120V/30W/BA15D/S11/CC2V/50H | I/120V/30W/BA15D/S11/CC2V/50H/BLC | I/120V/30W/BA15D/S11/CC2V/50H/BLC-120V | I/120V/30W/BA15D/S11/CL |
| I/120V/30W/BA15D/S11/CL/50H | I/120V/30W/BA15D/S11/CL/50H/BLC-120V | I/120V/30W/BA15D/S11/CL/50H/SP30S11DCCL120V | I/120V/30W/BA15D/S11/PHOTO |
| I/125V/30W/BA15D/S11/50H | I/125V/30W/BA15D/S11/CC2V/50H | I/125V/30W/BA15D/S11/CC2V/50H/BLC | I/125V/30W/BA15D/S11/CC2V/50H/BLC-125V |
| I/125V/30W/BA15D/S11/CL/50H | I/125V/30W/BA15D/S11/CL/50H/BLC-125V | INC-120V-30W-CC2V-50HR USHIO | INC-120V-30W-CC2V-50HR/120V/30W/BA15D USHIO |
| INC-120V-30W-CC2V-50HR/120V/30W/BA15D/BLC USHIO | INC-120V-30W-CC2V-50HR/BLC USHIO | KH-2 OLYMPUS | KHC OLYMPUS |
| KHC/8B152 OLYMPUS | KHC/MICROSCOPE/120V/30W OLYMPUS | KK-2 OLYMPUS | MICROSCOPE-31-70-01 BAUSCH-LOMB |
| MICROSCOPE-ILLUMINATOR-CHB OLYMPUS | MICROSCOPE-ILLUMINATOR-CHT OLYMPUS | MICROSCOPE-ILLUMINATOR-KHC/8B152 OLYMPUS | MICROSCOPE-ILLUMINATOR-KK2 OLYMPUS |
| MICROSCOPE/31-31-71-05 BAUSCH/LOMB | MK/MICROSCOPES UNITRON | MKK/MICROSCOPES UNITRON | PH-30-S11 WESTINGHOUSE |
| PH-30W-S11 WESTINGHOUSE | PH-30WATT-S11 WESTINGHOUSE | PH-30WATT-S11-93 WESTINGHOUSE | PH-30WATT-S11-93-120 VOLT WESTINGHOUSE |
| PH/30S11/93 GENERAL-ELECTRIC | PH/30W/S11/93 | PH30S11-93 WESTINGHOUSE | PH30S11-93-120 WESTINGHOUSE |
| PH30S11-93-120V WESTINGHOUSE | PH30WS11-93 WESTINGHOUSE | PH30WS11-93-120 WESTINGHOUSE | PH30WS11-93-120V WESTINGHOUSE |
| SP30S11BA15DCC2V-115V | SP30S11BA15DCC2V-120V | SP30S11BA15DCC2V-125V | SP30S11BA15DCC2V115V-BLC-115V |
| SP30S11BA15DCC2V120V-BLC-120V | SP30S11BA15DCC2V125V-BLC-125V | SP30S11BA15DCL115V | SP30S11BA15DCL115V-BLC-115V |
| SP30S11BA15DCL120V | SP30S11BA15DCL120V-BLC-120V | SP30S11BA15DCL125V | SP30S11BA15DCL125V-BLC-125V |
| SP30S11DCCC2V-115V | SP30S11DCCC2V-120V | SP30S11DCCC2V-125V | SP30S11DCCC2V115V-BLC-115V |
| SP30S11DCCC2V120V-BLC-120V | SP30S11DCCC2V125V-BLC-125V | SP30S11DCCL115V | SP30S11DCCL115V-BLC-115V |
| SP30S11DCCL120V | SP30S11DCCL120V-BLC | SP30S11DCCL120V-BLC-120V | SP30S11DCCL125V |
| SP30S11DCCL125V-BLC-125V | WB014 | WBO14 | |
