BMD ANSI Code
BMD ANSI is a S11 lamp with a BA15s base operating at 100 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BMD lamps.
Electrical Specifications | |
| Amps | 0.833 |
|---|---|
| Volts | 120 |
| Watts | 100 |
Photometrics | |
| Candlepower | 160 |
|---|---|
| Color Temperature | 3000 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 2000 |
Physical Characteristics | |
| Base | BA15s |
|---|---|
| Bulb Shape | S11 |
| Filament | CC-2V |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | BMD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
S11 Shape | |
 | |
| Diameter Designation | 11/8" |
|---|---|
| Glass Diameter | 1 3/8" (1.375") |
| Shape Code | S |
| Shape Classification | Straight Sided |

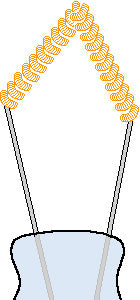

CC-2V Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
BA15s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 125-100-04 | ||
| Canimpex | 125-100-04 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Calvin Company | Movie-Mite 41 | Projector |
| Calvin Company | Movie-Mite 61 | Projector |
| Calvin Company | Movie-Mite 51 | Projector |
| Excel Movie Products | P-46 | |
| GM Laboratories | SP-100A SKAN | |
| GM Laboratories | 720-21-1 SKAN | |
| GM Laboratories | SP-100 SKAN | |
| GM Laboratories | SP-102 SKAN | |
| GM Laboratories | SP-101 SKAN | |
| Harwald Company | Movie Mite 41-51-61 | Projector |
| Keystone Camera Co. Inc. | L-892 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | D-883 | Projector Slide / Filmstrip |
| Keystone Camera Co. Inc. | L-992 | Projector Slide / Filmstrip |
| Mansfield Industries | 350 | |
| Mansfield Industries | A-35 | |
| Moviola Mfg. Co. | K-20 | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UD-20-S | 16mm & 35mm Viewer/Editing | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UD-20-CS | 16mm & 35mm Viewer/Editing | 16mm Viewer/Editing |
| Moviola Mfg. Co. | C-20 | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | L-20 | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UK-20-S | 16mm Viewer/Editing |
| Moviola Mfg. Co. | U1-20-CS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UL-20-CS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | D-20 | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | UL-20-S | 16mm Viewer/Editing |
| Moviola Mfg. Co. | 20 | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | UC-20-S | 16mm & 35mm Viewer/Editing | 16mm Viewer/Editing |
| Sears Roebuck | 6446 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 6446 TOWER | Projector Slide / Filmstrip |
| Society for Visual Education (SVE) | Electro-Acoustic B | Projector Slide / Filmstrip |
| Society for Visual Education (SVE) | RM | Projector Slide / Filmstrip |
BMD may also be listed as: | |||
| 00190 WIKO | 031293001900 EIKO | 100-S11-BA15S WESTINGHOUSE | 100-S11-BA15S-120 WESTINGHOUSE |
| 100-S11-BA15S-120V WESTINGHOUSE | 100-S11-SC WESTINGHOUSE | 100-S11-SC-120 WESTINGHOUSE | 100-S11-SC-120V WESTINGHOUSE |
| 1000063 USHIO | 100S11/SC GENERAL-ELECTRIC | 100W/S11/SC | 100WATT-S11-BA15S WESTINGHOUSE |
| 100WATT-S11-BA15S-120 VOLT WESTINGHOUSE | BMD ANSI | BMD ASA | BMD EIKO |
| BMD GENERAL-ELECTRIC | BMD INTERLIGHT | BMD USHIO | BMD WESTINGHOUSE |
| BMD WIKO | BMD-120 ANSI | BMD-120 ASA | BMD-120 VOLT ANSI |
| BMD-120 VOLT ASA | BMD-120V ANSI | BMD-120V ASA | BMD-120V-100W |
| BMD-120V-100W ANSI | BMD-120V-100W ASA | BMD-120V-100W-BA15S-S11-CC2V-CLEAR-2000L-3000K-25H-BDTH-2-3/8MOL-1-3/8LCL-I-TOY-PROJECTOR | BMD-120V/120V/100W/BA15S ANSI |
| BMD-125V/125V/100W/BA15S ANSI | BMD/120V GENERAL-ELECTRIC | BMD/120V/100W/BA15S ANSI | BMD/125V ANSI |
| BMD/125V/100W ANSI | BMD/125V/100W/BA15S ANSI | BW-BMD | I/120V/100W/BA15S/S11/CC2V/25H |
| I/120V/100W/BA15S/S11/CC2V/25H/BMD | I/120V/100W/BA15S/S11/CC2V/25H/BMD-120V | I/120V/100W/BA15S/S11/CL/25H | I/120V/100W/BA15S/S11/CL/25H/BMD-120V |
| I/125V/100W/BA15S/S11/CC2V/25H | I/125V/100W/BA15S/S11/CC2V/25H/BMD | I/125V/100W/BA15S/S11/CC2V/25H/BMD-125V | I/125V/100W/BA15S/S11/CL/25H |
| I/125V/100W/BA15S/S11/CL/25H/BMD-125V | PH-100-S11-BA15S WESTINGHOUSE | PH-100-S11-BA15S-120 WESTINGHOUSE | PH-100-S11-BA15S-120V WESTINGHOUSE |
| PH-100-S11-SC WESTINGHOUSE | PH-100-S11-SC-120 WESTINGHOUSE | PH-100-S11-SC-120V WESTINGHOUSE | PH-100W-S11-BA15S WESTINGHOUSE |
| PH-100W-S11-BA15S-120 WESTINGHOUSE | PH-100W-S11-BA15S-120V WESTINGHOUSE | PH-100W-S11-SC WESTINGHOUSE | PH-100W-S11-SC-120 WESTINGHOUSE |
| PH-100W-S11-SC-120V WESTINGHOUSE | PH-100WATT-S11-BA15S WESTINGHOUSE | PH-100WATT-S11-BA15S-120 VOLT WESTINGHOUSE | PH/100S11/SC GENERAL-ELECTRIC |
| PH/100W/S11/SC | SP100S11BA15SCC2V-120V | SP100S11BA15SCC2V-125V | SP100S11BA15SCC2V120V-BMD-120V |
| SP100S11BA15SCC2V125V-BMD-125V | SP100S11SCCC2V-120V | SP100S11SCCC2V-125V | SP100S11SCCC2V120V-BMD-120V |
| SP100S11SCCC2V125V-BMD-125V | SP100S11SCCL120V-25H | SP100S11SCCL120V-3000K | SP100S11SCCL120V-BMD |
| SP100S11SCCL125V | |||
