BRD ANSI Code

BRD ANSI is a T5 lamp with a BA15s base operating at 3 watts and 4 volts. It has a color temperature of 2800 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BRD lamps.

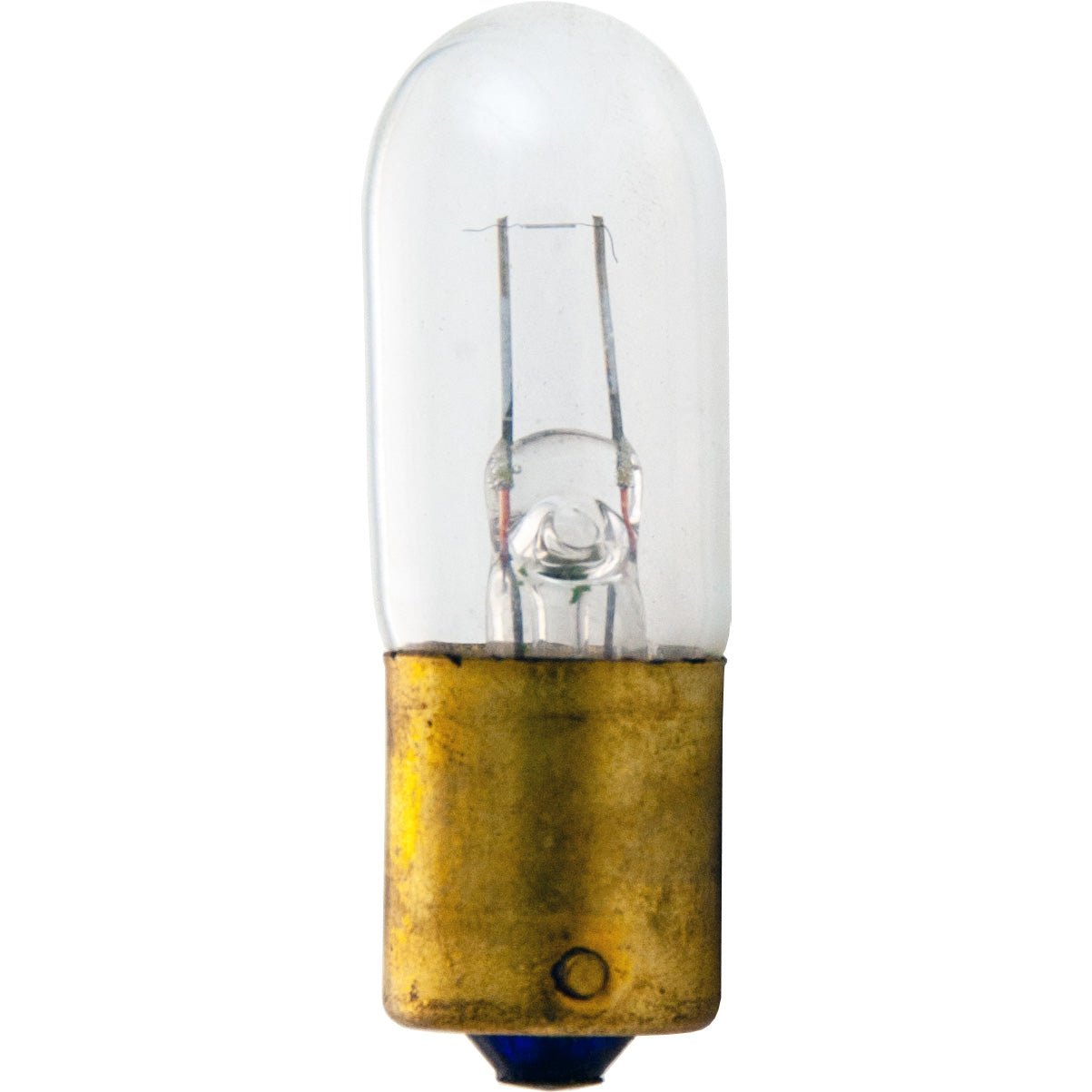

BRD Photograph

BRD

Electrical Specifications

Amps0.75
Volts4
Watts3

Photometrics

Candlepower2.4
Color Temperature2800
Light Center Length (LCL)1 1/4
Lumens30

Physical Characteristics

BaseBA15s
Bulb ShapeT5
FilamentC-6
FinishClear
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionAny
Life Hours50

General Information
Lamp CodeBRD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

C-6 Filament

C-6
Coil TypeC - Single Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites04-003-04
Canimpex04-003-04

Equipment Used In

BrandModelType
Bell and Howell Filmosound 120-F
Bell and Howell Filmosound 120-I
Bell and Howell Filmosound 120-D
Bell and Howell Filmosound 120-G
Bell and Howell Filmosound 142
Bell and Howell Filmosound 156
Bell and Howell Filmosound 120
Bell and Howell Filmosound 398
Bell and Howell Filmosound 02 (all)
Bell and Howell Filmosound 185
Bell and Howell Filmosound 130
Bell and Howell Filmosound 120-C
Bell and Howell Auditorium 130
Bell and Howell Filmosound 138
Bell and Howell Filmosound 285
Bell and Howell Filmosound 120-J
Bell and Howell Filmosound 120-K
Bell and Howell Filmosound 120-H
Bell and Howell Filmosound 99
Bell and Howell Filmosound 140
Bell and Howell Filmosound 120-E
Bell and Howell Filmosound 120-A
Bell and Howell Filmosound 120-B
Bell and Howell Filmo Auditorium 130
Bell and Howell Filmosound 179

BRD may also be listed as:
0.75A/T5/BA15S/CL/4V0.75A/T5/SC0.75A/T5/SC/CL/4V0.75AMP-T5-BA15S SYLVANIA
0.75AMP-T5-BA15S WESTINGHOUSE0.75AMP-T5-BA15S-4VOLT SYLVANIA00240 WIKO031293002402 EIKO
12134 BELL-HOWELL17110 SYLVANIA2341 BELL-HOWELL3129300240 WIKO
4V-0.75A-G19-B15S17 ROYAL-EDISWAN4V-0.75A-G19-SCC ATLAS4V-0.75A-G19-SCC. ATLAS4V-0.75A-T4-S.C.BAY-C6 FUJI-OPTICAL-SYSTEMS
4V-0.75A-T4-SCBAY-C6 FUJI-OPTICAL-SYSTEMS4V-0.75A-T4.S.C.BAY-C6 FUJI-OPTICAL-SYSTEMS4V/3W/G19-4V-3W LIF4VOLT-0.75AMP-BA15S
700-025 LEITZ-LEICA700-025/4V/3W LEITZ/LEICA7253-N PHILIPS7253N/4V/0.75A/BA15S/T16.5MM/31.8MMLCL/49MMMOL/50H PHILIPS
7253N/4V/0.75A/BA15S/T5.25/31.8MMLCL/49MMMOL/50H PHILIPS7253N/8003-OSRAM PHILIPS7253N/BRD-ANSI PHILIPS7253N/G19-LIF PHILIPS
75A-T5SC PHILIPS75A-T5SC USA75A/T5/BA15S/CL/4V75A/T5/SC/CL/4V
75A/T5SC GENERAL-ELECTRIC75AMP-T5-BA15S SYLVANIA75AMP-T5-BA15S WESTINGHOUSE75AMP-T5-BA15S-4VOLT SYLVANIA
8003 OSRAM8003-BRD BULBDIRECT8003/4V/3W8003/7253N-PHILIPS OSRAM
BRD ANSIBRD ASABRD EIKOBRD GENERAL-ELECTRIC
BRD INTERLIGHTBRD MICROLAMPBRD SYLVANIABRD WESTINGHOUSE
BRD WIKOBRD-4V ANSIBRD-4V ASABRD-4V-0.75A
BRD-4V-0.75A ANSIBRD-4V-0.75A-BA15S-T5-C6-CLEAR-30L-50H-ANY-2MOL-1-1/4LCL-I-SOUND-REPRODUCTION-BASE-PINS-PERPENDICULAR-TO-PLANE-OF-LEAD-WIRESBRD-4V-3W ANSIBRD-4V-3W ASA
BRD-4V/4V/3W/BA15S ANSIBRD-4VOLT ANSIBRD-4VOLT ASABRD-75A/T5/SC
BRD/4V GENERAL-ELECTRICBRD/4V/3W/BA15S ANSIBRD/7253N-PHILIPS ANSIBW-BRD
E-1026E1026 THORNEQ-G/19 ELECTROQUIPEQ-G/19/P30S-4V-0.75A ELECTROQUIP
F/12-4V-3W-BA15S-T16-CLEAR-30L-50H-VBD15-48MMMOL-7.5MMLCL-PLUS-MINUS-2MM-I-LCL-MEASURED-FROM-BULB-CROWNF12-4V-3WF12-4V-3W ATLASF12-4V-3W LIF
F12-4V-3W THORNF12-4V-3W-BA15S LIFG-0.19G-19 ATLAS
G-19 CINETONEG-19 LIFG-19 MAZDAG/19 THORN
G/19-4V LIFG/19-4V-0.75A-BA15S-T16-C6-CLEAR-30L-50H-ANY-50MMMOL-28.5MMLCL-PLUS-MINUS-0.5MM-IG19 ROYAL-EDISWANG19-4V-0.75A
G19-4V-0.75A ATLASG19-4V-0.75A LIFG19-4V-0.75A THORNG19-4V-0.75A-B15S CINETONE
G19-4V-0.75A-B15S17 CINETONEG19-4V-3W LIFG19/7253N-PHILIPS LIFI/4V/0.75A/BA15S/T16MM/C6/32MMLCL/30L/50MMMOL/50H/7253N PHILIPS
I/4V/0.75A/BA15S/T5/CL/50H/SP3T5SCCL4VI/4V/3W/BA15S/T5/C6/32MMLCL/30L/50MMMOL/50H/7253N PHILIPSI/4V/3W/BA15S/T5/C6/50HI/4V/3W/BA15S/T5/C6/50H/BRD
I/4V/3W/BA15S/T5/CL/50H/BRDI/4V/3W/BA15S/T5/CL/50H/F12-4V-3W-BA15S LIFI/4V/3W/BA15S/T5/CL/50H/SP3T5SCCL4VKE-030 KONDO
KE030-4V-0.75A KONDOMAZDA-0.75AMP-4VOLTPH-0.75AMP-T5-BA15S WESTINGHOUSEPH-0.75AMP-T5-BA15S-4VOLT WESTINGHOUSE
PH-75AMP-T5-BA15S WESTINGHOUSEPH-75AMP-T5-BA15S-4VOLT WESTINGHOUSEPH/0.75A/T5/SCPH/75A/T5SC GENERAL-ELECTRIC
SP3T5BA15SC6-4VSP3T5BA15SC64V-BRDSP3T5BA15SCL-4VSP3T5BA15SCL4V-BRD
SP3T5SCC6-4VSP3T5SCC64V-BRDSP3T5SCCL-4VSP3T5SCCL4V-31.8MMLCL
SP3T5SCCL4V-7.5MMLCL-FROM-TOPSP3T5SCCL4V-BRDSRAS NORELCOSRAS RADIANT
