BRH ANSI Code
BRH ANSI is a T5 lamp with a R7s base operating at 1000 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BRH lamps.

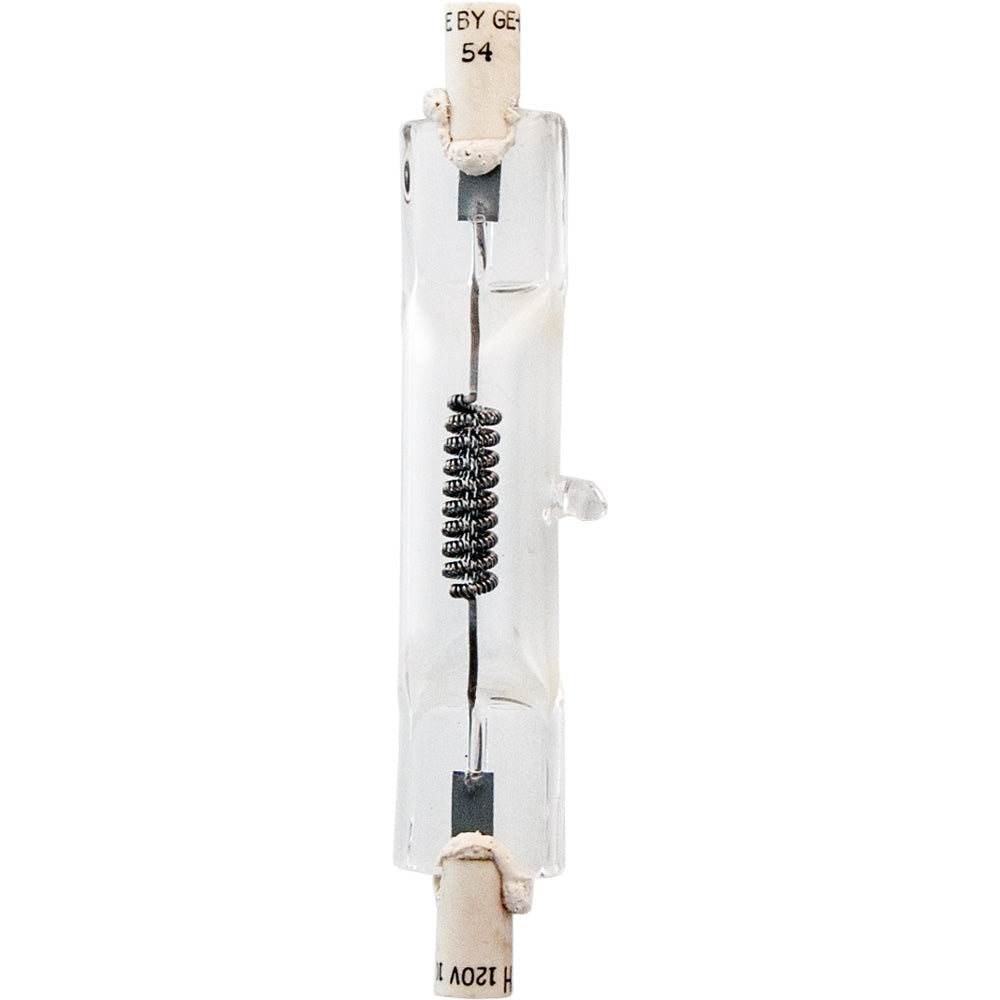

BRH Photograph |
 |
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 120 |
| Watts | 1000 |
Photometrics | |
| Candlepower | 2400 |
|---|---|
| Color Temperature | 3300 |
| Light Center Length (LCL) | 91.8 |
| Lumens | 30000 |
Physical Characteristics | |
| Base | R7s |
|---|---|
| Bulb Shape | T5 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 3/4 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 75 |
General Information | |
| Lamp Code | BRH |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
R7s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | BRH | 1000W, 120V | |
| Standard Products | 11937 | T-5/1000W/120V/RSC/R7S/BRH | |
| Bulbrite | 761015 | BRH | |
| Eiko | 00250 | BRH | |
| Hikari | S-02501 | BRH 120V/1000W-R7S, STS-BRH | |
| Microlites | 120-1000-75H | ||
| Canimpex | 120-1000-75H | ||
Equipment Used In | ||
| Brand | Model | Type |
| 3M | Model 66 (serials over 66AG1101E) | |
| 3M | Model 42D | |
| 3M | 42-D | |
| 3M | Model 66 (serials over 66AG1101E, can use BRH w/ heat adaptor kit) | |
| 3M | Model 66-AG (serials over 1101E, can use BRH w/ heat adaptor kit) | |
| 3M | Model 66-AG | |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17681-BB | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17680-EE | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta Scribe 17626-EE | |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17626-CC | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17625-EE | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta Scribe 17622-CC | |
| Beseler Photo Marketing (Charles Beseler) | Porta Scribe 17626-AA | |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17681-CC | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17681-EE | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17625-CC | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17680-CC | Overhead Projector |
| Beseler Photo Marketing (Charles Beseler) | Porta-Scribe 17681-AA | Overhead Projector |
| Buhl | Supreme E-600 | |
| Buhl | 80/14-1000 | |
| Buhl | 80/14-TC-1000 | |
| Buhl | Supreme 600/12EB | |
| Buhl | 80/14-TC-100 | |
| Buhl | 80/12-TC-1000 | |
| Buhl | Supreme 600/14EB | |
| Buhl | Supreme 600/10EB | |
| Buhl | 80/12-1000 | |
| Buhl | Supreme 600 | |
| Buhl | 80/10-1000 | |
| Olec | AL1KT | |
| Olec | AAL1KT | Graphic Arts |
| Projection Optics Co. | Travel-Graph 21100-EE | Projector |
| Projection Optics Co. | Travel-Graph 21100-CC | Projector |
| Projection Optics Co. | Travel-Graph 21105 | Projector |
| Projection Optics Co. | Travel-Graph 21100-AA | Projector |
| Projection Optics Co. | Travel-Graph 21105 Resolute | Projector |
BRH may also be listed as: | |||
| 00250 UPC | 00250 WIKO | 048777104415 UPC | 1000-120-BRH-30000-CC-8-3350-60-R7S-24-29604 GENERAL-ELECTRIC |
| 1000068 BLV | 1000068 USHIO | 1000W-120V-BRH-30000-CC-8-3350-60-R7S-24-29604 GENERAL-ELECTRIC | 120V/1000W/R7S/BRH |
| 29604 GENERAL-ELECTRIC | 29604-SKU GENERAL-ELECTRIC | 3129300250 WIKO | 54563 OSRAM |
| 54563 SYLVANIA | 54563-1 SYLVANIA | 54563/BRH SYLVANIA | 78-8000-8096 3M |
| 78-8000-8096-8 3M | 78-8453-5107 3M | 944240 | B-213-P SYLVANIA |
| BRH ANSI | BRH ASA | BRH BULB-DIRECT | BRH GENERAL-ELECTRIC |
| BRH HIDSI | BRH INTERLIGHT | BRH KONDO | BRH LAMPTECH |
| BRH MICROLAMP | BRH OLEC | BRH OLEC-OLITE | BRH OLITE |
| BRH OSRAM | BRH PHILIPS | BRH SYLVANIA | BRH USHIO |
| BRH WIKO | BRH-1000W-120V-R7S GENERAL-ELECTRIC | BRH-1000W-120V-R7S-18 USHIO | BRH-120 VOLT ANSI |
| BRH-120 VOLT ASA | BRH-120V ANSI | BRH-120V ASA | BRH-120V-1000W |
| BRH-120V-1000W ANSI | BRH-120V-1000W ASA | BRH-120V-1000W-R7S-18 USHIO | BRH-120V-1000W-R7S-T5-CC8-CLEAR-30000L-3350K-75H-ANY-3-3/4MOL-3/4LCL-Q-OVERHEAD-PROJECTOR |
| BRH-120V/120V/1000W/R7S/95MMMOL/CL ANSI | BRH-GE LAMPTECH | BRH-GE/T5-1000W-T7S-120V LAMPTECH | BRH-JPD-120V/1000W |
| BRH-JPD120V1000WC1-T18MM-95MMMOL-89.6MMCC-CC-8-30000L-3350K-75H-CLEAR-1000068 BLV | BRH-JPD120V1000WC1-T18MM-95MMMOL-89.6MMCC-CC-8-30000L-3350K-75H-CLEAR-1000068 USHIO | BRH/120V/1000W/R7S ANSI | BRH/120V/1000W/R7S/60H |
| BRH/120V/1000W/R7S/95MMMOL ANSI | BRH/120V/1000W/R7S/95MMMOL/CL ANSI | BRH/120W/1000W PHILIPS | BRH/T5-120V-1000W-R7S LAMPTECH |
| BRH120V GENERAL-ELECTRIC | BRH120V/1000WR7S | BRH120W1000W/BRH-120W-1000W PHILIPS | BW-BRH |
| H/120V/1000W/R7S/94MMMOL/75H | H/120V/1000W/R7S/95.3MMMOL/75H | H/120V/1000W/R7S/95MMMOL/75H | H/120V/1000W/R7S/T5/CC8/75H |
| H/120V/1000W/R7S/T5/CC8/75H/BRH | JPD-120 VOLT-1000WATT-BRH | JPD-120 VOLT-1000WATT-C1 USHIO | JPD/120V/1000W/C1 |
| JPD120V-1000WC1 USHIO | JPD120V-1000WC1/BRH USHIO | JPD120V-1000WC1/R7S/75H USHIO | JPD120V-1000WC1/R7S/95MM USHIO |
| JPD120V1000WC1-CC8-75HR USHIO | JPD120V1000WC1-CC8-75HR/120V/1000W/R7S-18 USHIO | JPD120V1000WC1-CC8-75HR/120V/1000W/R7S-18/BRH USHIO | JPD120V1000WC1-CC8-75HR/BRH USHIO |
| L-1-K-3 | L1K3 OLEC | QI000T5/5CL GENERAL-ELECTRIC | QI000T5/5CL-120V GENERAL-ELECTRIC |
| R7S-18-120V-1000W-BRH-JPD120V-1000WC1-T18MM-95MMMOL-89.6MMCC-CC-8-30000L-3350K-75H-CLEAR-1000068 BLV | R7S-18-120V-1000W-BRH-JPD120V-1000WC1-T18MM-95MMMOL-89.6MMCC-CC-8-30000L-3350K-75H-CLEAR-1000068 USHIO | SPQ1000T5R7S120V-BRH | SPQ1000T5RSC120V-BRH |
