BRK ANSI Code

BRK ANSI is a T5 lamp with a P15s30A base operating at 3 watts and 4 volts. It has a color temperature of 2800 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BRK lamps.

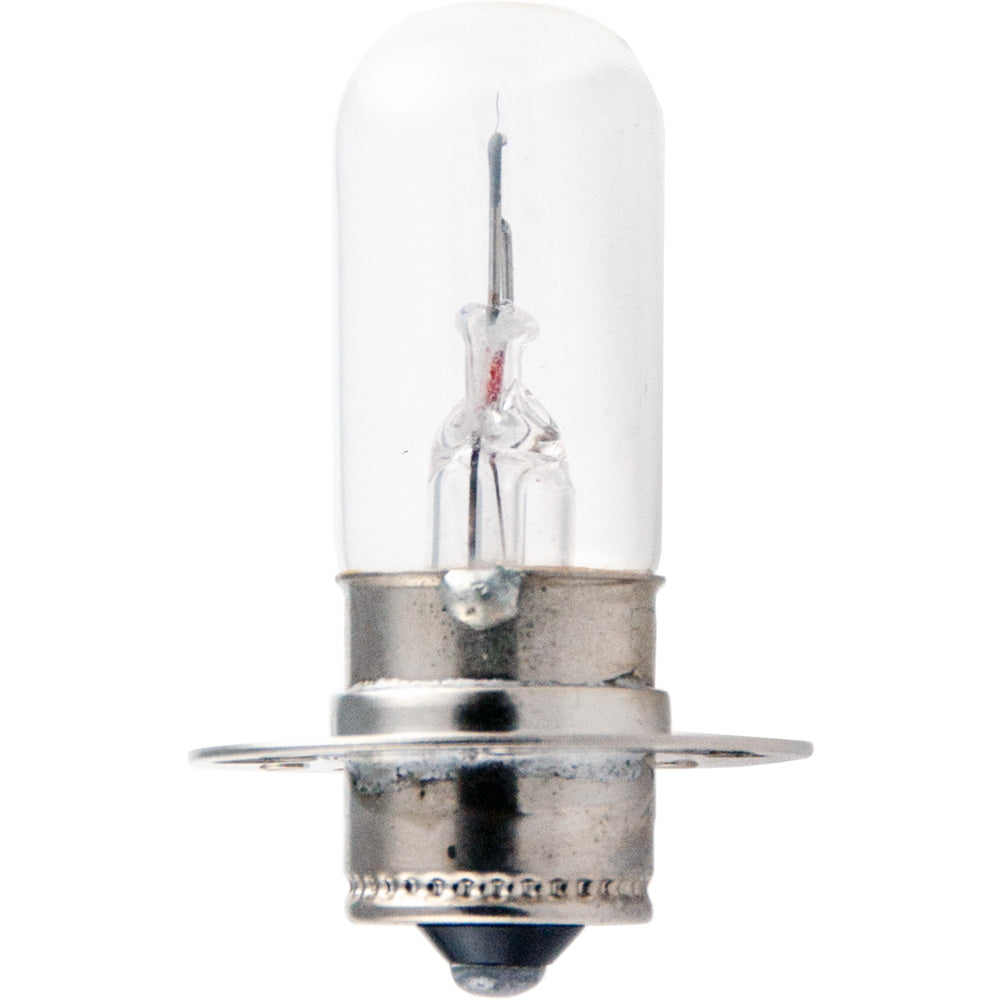

BRK Photograph

BRK

Electrical Specifications

Amps0.75
Volts4
Watts3

Photometrics

Candlepower2.2
Color Temperature2800
Light Center Length (LCL)1 1/8
Lumens28

Physical Characteristics

BaseP15s30A
Bulb ShapeT5
FilamentC-8
FinishClear
Max Overall Length (MOL)2 3/8

Operating Characteristics

Burn PositionAny
Life Hours50

General Information
Lamp CodeBRK
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsG/27

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites04-003-64
Canimpex04-003-64

Equipment Used In

BrandModelType
Ampro Corporation Deluxe Stylist 568 Projector
Ampro Corporation Super Stylist Projector
Ampro Corporation Stylist Super 510 Projector
Ampro Corporation DEC-479 Projector
Ampro Corporation Deluxe Stylist Projector
Ampro Corporation Stylist Super 512 Projector
Ampro Corporation Deluxe Stylist 548 Projector
Ampro Corporation Compact Projector
Ampro Corporation Military 479 Projector
Ampro Corporation Stylist Super 508 Projector
Ampro Corporation Stylist Maquine Projector
Arriflex Siemens 2000 Marc Stage / Studio
DeVry DeVrylite 5 16mm Movie Projector
DeVry Bantam 16mm Movie Projector
DeVry DeVrylite 16mm Movie Projector
Dukane Super 8 Sound Projector
EIKI M-3
EIKI M-3-CAK
EIKI Trojan TRM-0
EIKI ST-3-CAK
EIKI M-1
EIKI RST-3
EIKI RM-1
EIKI M-0
EIKI RST-2
EIKI ST-3H
EIKI RT-3
EIKI RM-2
EIKI RT-0
EIKI NT-1
EIKI NT-0
EIKI M-2
EIKI ENT-1
EIKI NT-2
EIKI M-2-CAK
EIKI ST-2H
EIKI SSL-0L
EIKI SL-0
EIKI ST-2-CAK
EIKI Trojan TRM-0-TRST-OH
EIKI M-0-CAK
EIKI SL-1
EIKI ENT-2
EIKI ENT-0
EIKI ST-1H
EIKI RM-0
EIKI RST-1
EIKI SNT-0
EIKI ST-1-CAK
EIKI RT-2
EIKI SNT-2
EIKI ST-0H
EIKI ESL-1
EIKI RM-3
EIKI ENT-3
EIKI SNT-1
EIKI RST-0
EIKI ST-0-CAK
EIKI NT-3
EIKI ESL-2
EIKI RT-1
EIKI M-1-CAK
Elmo 16-CL TC
Elmo 16-CL
Elmo 16-TC
Fairway Products Visomatic 8mm Projector Movie
Forway Industries 16-CL-TC
Fuji Electric SM-8004
Graflex Galaxy
Graflex 800 35mm Sound Movie Projector
Graflex Graflex 16 Projector Slide / Filmstrip
Graflex Ampro-Stylist
Graflex Super Stylist-510
Graflex Stylist Deluxe Projector Filmstrip Sound
Graflex Super Stylist-508
Graflex Stylist Deluxe-548 Projector Filmstrip Sound
Graflex Compact Filmstrip Projector
Graflex 815 35mm Sound Movie Projector
Graflex Stylist
Graflex 820
Graflex Stylist Deluxe-568 Projector Filmstrip Sound
Graflex Military 479 35mm Sound Movie Projector
Graflex Super Stylist-512
International Audio Visual Ltd. Trojan TRM-O Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-3-H Projector Slide / Filmstrip
International Audio Visual Ltd. Royal M-2 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-3 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-86-D Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-860 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-862 Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-850 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-2 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-1-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-2-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. Trojan TRST-OH Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-0-H Projector Slide / Filmstrip
International Audio Visual Ltd. Royal M-0 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal M-1 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal M-3 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-2-H Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-0 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-3-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-863 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-1 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-1-H Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-0-CAK Projector Slide / Filmstrip
International Audio Visual Ltd. 1-AV-MS-861 Projector Slide / Filmstrip
Revere Camera Co. SP-16 (serial over 15000) Projector Slide / Filmstrip
Revere Camera Co. SPR-64 Projector Slide / Filmstrip
Singer Corporation Stylist
Singer Corporation Galaxy 15
Singer Corporation Educational
Singer Corporation Ampro
Singer Corporation Gralfex-16 815
Singer Corporation Gralfex-16 820
Singer Corporation Super-15 10
Singer Corporation Super-15 15 Super-15
Singer Corporation Galaxy 10
Singer Corporation Gralfex-16 800
Technical Service Inc. (TSI) DeVrylite DU15 Projector
Technical Service Inc. (TSI) DeVrylite DU5 Projector
Technical Service Inc. (TSI) DeVrylite D3 Projector
Technical Service Inc. (TSI) DeVrylite 15R Projector
Technical Service Inc. (TSI) DeVrylite D3 Suitcase Projector
Van Der Scharlie Corp. Contimovie

BRK may also be listed as:
0-3/4AT5-1 SYLVANIA0-3/4AT5-1 WESTINGHOUSE0-3/4AT5-1-4 SYLVANIA0-3/4AT5-1-4V SYLVANIA
0.75A/T5/10.75A/T5/P15S30/CL/C8/4V0.75A/T5/SCP/CL/C8/4V0.75AMP-T5-1 SYLVANIA
0.75AMP-T5-1 WESTINGHOUSE0.75AMP-T5-1-4VOLT SYLVANIA0.75AT5-1 SYLVANIA0.75AT5-1 WESTINGHOUSE
0.75AT5-1-4 SYLVANIA0.75AT5-1-4V SYLVANIA00260 EIKO00260 UPC
00260 WIKO031293002600 EIKO048777104552 UPC1000070 BLV
1000070 USHIO112640 ORBITEC112640-P8005-P30S-15X57-4V-0.75A-AXIA ORBITEC112640/4V/0.75A ORBITEC
112640/4V/0.75A/P15S ORBITEC1235-8 DR-FISCHER131862 NARVA131862 ORBITEC
131862/245V/1000W NARVA3077283129300260 WIKO39705
4-.75A FUJIOPTICALSYSTEMS4-.75A HOSOBUCHI4-.75A KONDO4-.75A88E HOSOBUCHI
4-.75AC8 FUJIOPTICALSYSTEMS4-.75AP15S DRFISCHER4-.75AP30S DRFISCHER4-.75ASCP DRFISCHER
4-0.75A FUJIOPTICALSYSTEMS4-0.75A HOSOBUCHI4-0.75A KONDO4-0.75A88E HOSOBUCHI
4-0.75AC8 FUJIOPTICALSYSTEMS4-0.75AP15S DRFISCHER4-0.75AP30S DRFISCHER4-0.75ASCP DRFISCHER
4-3/4A FUJIOPTICALSYSTEMS4-3/4A HOSOBUCHI4-3/4A KONDO4-3/4A88E HOSOBUCHI
4-3/4AC8 FUJIOPTICALSYSTEMS4-3/4AP15S DRFISCHER4-3/4AP30S DRFISCHER4-3/4ASCP DRFISCHER
4V-.75A FUJI-OPTICAL-SYSTEMS4V-.75A HOSOBUCHI4V-.75A KONDO4V-.75A-88-E HOSOBUCHI
4V-.75A-C-8 FUJI-OPTICAL-SYSTEMS4V-.75A-P15S DR-FISCHER4V-.75A-P30S DR-FISCHER4V-.75A-SCP DR-FISCHER
4V-0.75A FUJI-OPTICAL-SYSTEMS4V-0.75A HOSOBUCHI4V-0.75A KONDO4V-0.75A-88-E HOSOBUCHI
4V-0.75A-C-8 FUJI-OPTICAL-SYSTEMS4V-0.75A-P15S30 DR-FISCHER4V-0.75A-P30S DR-FISCHER4V-0.75A-SCP DR-FISCHER
4V-3/4A FUJI-OPTICAL-SYSTEMS4V-3/4A HOSOBUCHI4V-3/4A KONDO4V-3/4A-88-E HOSOBUCHI
4V-3/4A-C-8 FUJI-OPTICAL-SYSTEMS4V-3/4A-P15S DR-FISCHER4V-3/4A-P30S DR-FISCHER4V-3/4A-SCP DR-FISCHER
4V/3W/G27-4V-3W LIF4V0.75A-P15S DR-FISCHER4VOLT-0.75AMP FUJI-OPTICAL-SYSTEMS4VOLT-0.75AMP HOSOBUCHI
4VOLT-0.75AMP KONDO4VOLT-0.75AMP-88-E HOSOBUCHI4VOLT-0.75AMP-C-8 FUJI-OPTICAL-SYSTEMS4VOLT-0.75AMP-P15S
4VOLT-0.75AMP-P15S30 DR-FISCHER5104 EIKI53017090-C PHILIPS
7090C/4V/0.75A/P30S/T16.5MM/28.6MMLCL/59MMMOL/50H PHILIPS7090C/4V/0.75A/P30S/T5.25/28.6MMLCL/59MMMOL/50H PHILIPS7090C/8005-OSRAM PHILIPS7090C/G27-LIF PHILIPS
75A/T5/1 GENERAL-ELECTRIC75A/T5/P15S30/CL/C8/4V75A/T5/SCP/CL/C8/4V75AT5-1 SYLVANIA
75AT5-1 WESTINGHOUSE75AT5-1-4 SYLVANIA75AT5-1-4V SYLVANIA8005 BULB-DIRECT
8005 LAMPTECH8005 OSRAM8005-BRK BULBDIRECT8005/4V-.75A-P30S LAMPTECH
8005/4V/0.75A OSRAM8005/7090C-PHILIPS OSRAMBRK ANSIBRK ASA
BRK BULB-DIRECTBRK EIKOBRK GENERAL-ELECTRICBRK HIDSI
BRK INTERLIGHTBRK LAMPTECHBRK SYLVANIABRK USHIO
BRK WESTINGHOUSEBRK WIKOBRK-3W-4V-P30S USHIOBRK-4 ANSI
BRK-4 ASABRK-4V ANSIBRK-4V ASABRK-4V-0.75A
BRK-4V-0.75A ANSIBRK-4V-0.75A-P30S-T5-C8-CLEAR-28L-50H-ANY-2-3/8MOL-1-1/8LCL-I-SOUND-REPRODUCTION-EXCITERBRK-4V-0.75A-T16MM-60MMMOL-28.5MMLCL-C-8-30L-50H-ANY-1000070 BLVBRK-4V-0.75A-T16MM-60MMMOL-28.5MMLCL-C-8-30L-50H-ANY-1000070 USHIO
BRK-4V-3W ANSIBRK-4V-3W ASABRK-4V-3W-P30S USHIOBRK-4V/4V/3W/P15S30A ANSI
BRK-4VOLT ANSIBRK-4VOLT ASABRK-GE LAMPTECHBRK-GE/4V-0.75A-P30S LAMPTECH
BRK/4V GENERAL-ELECTRICBRK/4V/0.75A/P15S ANSIBRK/4V/3W/P15S30A ANSIBRK/T-5-.74A-4V-SC-PREF LAMPTECH
BW-BRKEQ-G/27 ELECTROQUIPEQ-G/27/P30S-4V-0.75A ELECTROQUIPG-.27
G-0.27G-27 THORNG/27 ATLASG/27 LIF
G/27-4V LIFG/27-4V-0.75A-P30S-T16-C8-CLEAR-30L-50H-ANY-50MMMOL-28.5MMLCL-PLUS-MINUS-0.5MM-IG27-4V-0.75AG27-4V-0.75A ATLAS
G27-4V-0.75A LIFG27-4V-0.75A THORNG27-4V-3W LIFG27/7090C-PHILIPS LIF
GEBRKGEBRK-4GEBRK-4VGEBRK-4VOLT
H-8005 ORBITECI/4V/0.75A/P15S/T16MM/C8/29MMLCL/30L/50MMMOL/50H/7090C PHILIPSI/4V/0.75A/P15S/T5/8/28.5MMLCL/47.3MMMOL/50HI/4V/0.75A/P15S/T5/8/50H
I/4V/0.75A/P15S/T5/AX/28.5MMLCL/47.3MMMOL/50HI/4V/0.75A/P15S/T5/AX/50HI/4V/0.75A/P15S30/T5/8/28.5MMLCL/47.3MMMOL/50HI/4V/0.75A/P15S30/T5/8/50H
I/4V/0.75A/P15S30/T5/AX/28.5MMLCL/47.3MMMOL/50HI/4V/0.75A/P15S30/T5/AX/50HI/4V/0.75A/P15S30/TUBE/AX/50HI/4V/0.75A/P30S/T15MM/S8
I/4V/0.75A/P30S/T15MM/S8/50HI/4V/0.75A/P30S/T4.75/S8I/4V/0.75A/P30S/T4.75/S8/50HI/4V/3W/P15S30/T4.75/28.5MMLCL/C8/50H
I/4V/3W/P15S30/T5/AX/50HI/4V/3W/P15S30/T5/AX/50H/BRKI/4V/3W/P15S30/T5/AX/BRKI/4V/3W/P15S30/T5/C8/29MMLCL/30L/50MMMOL/50H/7090C PHILIPS
I/4V/3W/P15S30/T5/C8/50HI/4V/3W/P15S30/T5/C8/50H/BRKI/4V/3W/P15S30/T5/C8/BRKI/4V/3W/P15S30A/T5/AX/50H
I/4V/3W/P15S30A/T5/AX/50H/BRKI/4V/3W/P15S30A/T5/AX/BRKI/4V/3W/P15S30A/T5/C8/50HI/4V/3W/P15S30A/T5/C8/50H/BRK
I/4V/3W/P15S30A/T5/C8/BRKI/4V/3W/P15S30A/T5/CL/50H/BRKINC-4V-3W-0.75A-C8-50HR USHIOINC-4V-3W-0.75A-C8-50HR/4V/3W/P30S USHIO
INC-4V-3W-0.75A-C8-50HR/4V/3W/P30S/BRK USHIOINC-4V-3W-0.75A-C8-50HR/BRK USHIOKE-04 KONDOKE-04-0-4VOLT-0.75AMP KONDO
KE-040-4VOLT-75AMPKE04-0 KONDOKE04-0-4-.75A KONDOKE04-0-4-0.75A KONDO
KE04-0-4-3/4A KONDOKE04-0-4V.75A KONDOKE04-0-4V0.75A KONDOKE04-0-4V3/4A KONDO
KE040-4-75AKE040-4V75AP-7502 HOSOBUCHIP-7502/4V/0.75A/P30S10.3/T16MM/C8/28.5MMLCL/55MMMOL/30L/50H/GAS/BRK ANSI
P-8005 ORBITECP004.0003BRK BAILEYP0040003BRK BAILEYP30S-15X57-4V-0.75A-AXIA ORBITEC
P30S-15X57-4V-0.75A-AXIAL/P8005/112640 ORBITECP30S-15X57MM-4V-0.75A-AXIAL/P8005/112640 ORBITECP30S-3W-BRK-4V-0.75A-T16MM-60MMMOL-28.5MMLCL-C-8-30L-50H-ANY-1000070 BLVP30S-3W-BRK-4V-0.75A-T16MM-60MMMOL-28.5MMLCL-C-8-30L-50H-ANY-1000070 USHIO
P8005-P30S-15X57-4V-0.75A-AXIA ORBITECP8005/4V/0.75A ORBITECP8005/4V/0.75A/P15S ORBITECPH-.75A-T5-1 WESTINGHOUSE
PH-.75A-T5-1-4 WESTINGHOUSEPH-.75A-T5-1-4V WESTINGHOUSEPH-0.75A-T5-1 WESTINGHOUSEPH-0.75AMP-T5-1 WESTINGHOUSE
PH-0.75AMP-T5-1-4VOLT WESTINGHOUSEPH-3/4A-T5-1 WESTINGHOUSEPH-3/4A-T5-1-4 WESTINGHOUSEPH-3/4A-T5-1-4V WESTINGHOUSE
PH-75A-T5-1 WESTINGHOUSEPH-75A-T5-1-4 WESTINGHOUSEPH-75A-T5-1-4V WESTINGHOUSEPH-75AMP-T5-1 WESTINGHOUSE
PH-75AMP-T5-1-4VOLT WESTINGHOUSEPH/0.75A/T5/1PH/75A/T5/1 GENERAL-ELECTRICPH0.75AT5-1-4 WESTINGHOUSE
PH0.75AT5-1-4V WESTINGHOUSEPROJECTION/4V/0.75A/P30S/59X16.5H ELECTROQUIPSM-8005 OSRAMSP3T5P15S30AC8-4V
SP3T5P15S30AC84V-BRKSP3T5P15S30ACL4V-BRKSP3T5SCPAC8-4VSP3T5SCPAC84V-BRK
SP3T5SCPACL4V-BRKSP3T5SCPAX4VSP3T5SCPC8-4VSP3T5SCPC84V-BRK
SP3T5SCPCL4V-BRK
