BRN ANSI Code

BRN ANSI is a T7 lamp with a G17t-A2 base operating at 1200 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Clear finish. The average rated life is 20 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BRN lamps.

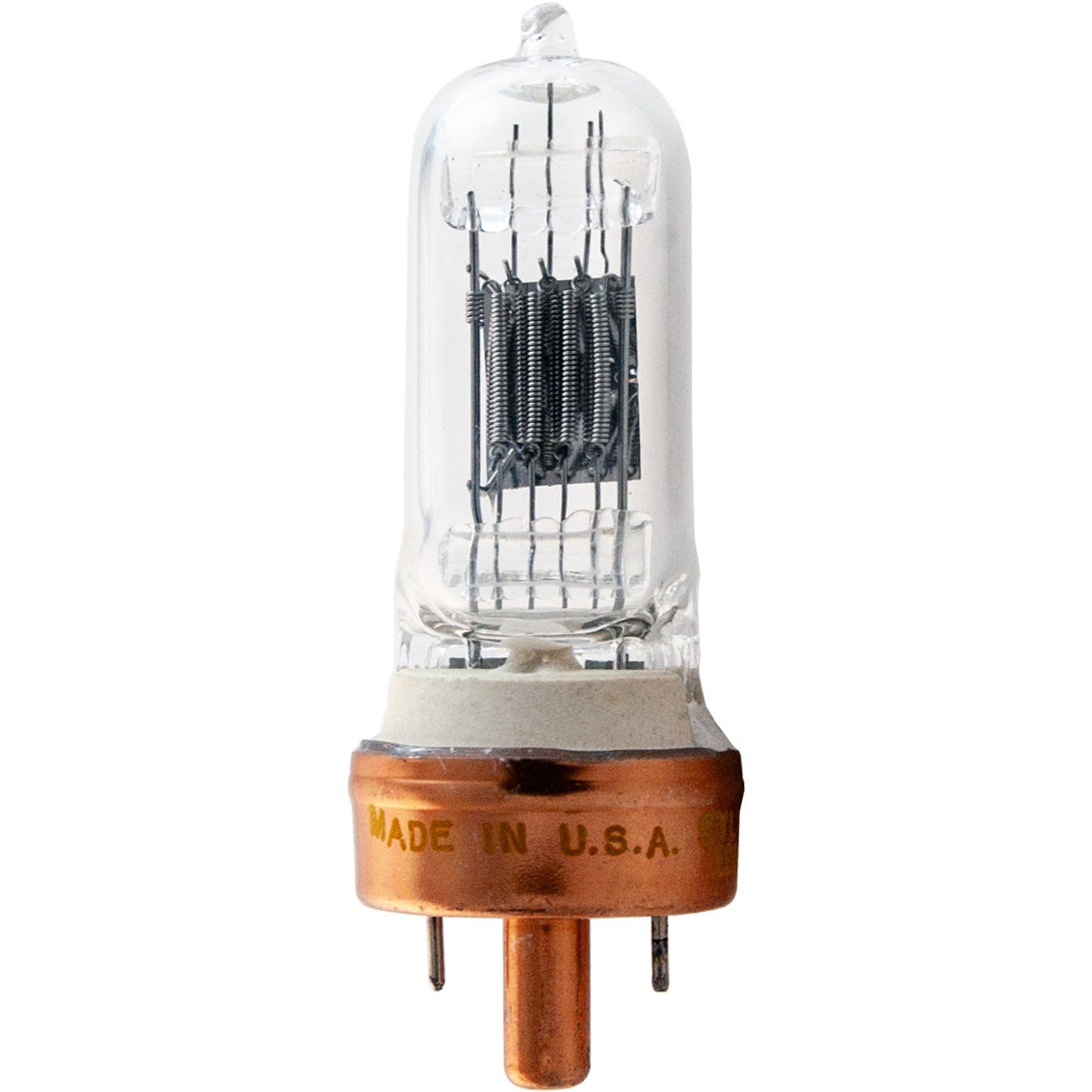

BRN Photograph

BRN

Electrical Specifications

Amps10
Volts120
Watts1200

Photometrics

Color Temperature3350
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17t-A2
Bulb ShapeT7
FilamentC-13D
FinishClear
Max Overall Length (MOL)3 3/4

Operating Characteristics

Burn PositionBase Down
Life Hours20

General Information
Lamp CodeBRN
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T7 Shape

T7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Kahoku Lighting Solutions (KLS)62003-KLSBRN Japan
Norman LampsBRN1200W, 120V
Microlites120-1200-31N
Canimpex120-1200-31N

Equipment Used In

BrandModelType
Buhl Ektagraphic
Buhl Ektagraphic Hi-Lite
George R. Snell Associates RA-1000
George R. Snell Associates RA-500
Realist 3402
Spindler & Sauppe Selectroslide SLD-1200A/766 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide SLR-1200A/766 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 1200 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide SLD-1200A Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 900 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide SLR-1200A Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 1200 Ultrabright Projector Slide / Filmstrip
