BSS ANSI Code
BSS ANSI is a T5 lamp with a P15s30A base operating at 6 watts and 6 volts. It has a color temperature of 2860 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BSS lamps.

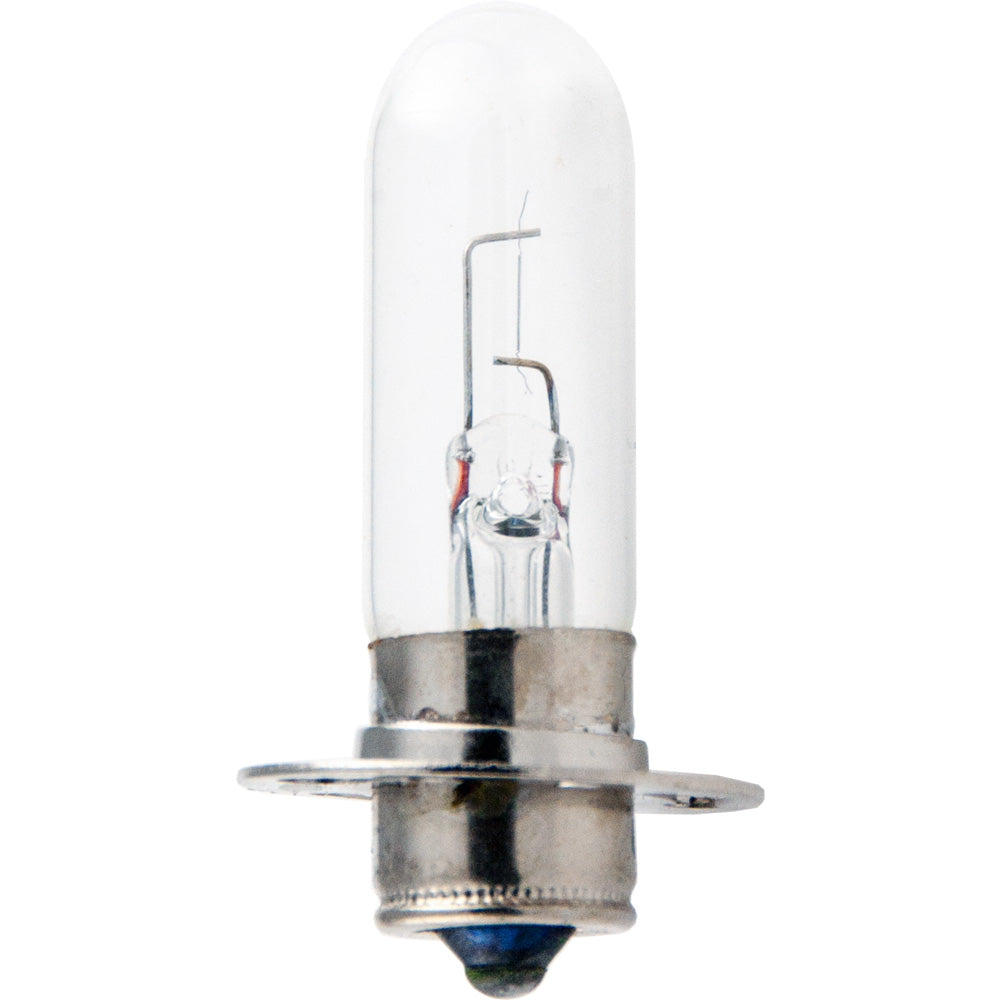

BSS Photograph |
 |
Electrical Specifications | |
| Amps | 1 |
|---|---|
| Volts | 6 |
| Watts | 6 |
Photometrics | |
| Candlepower | 5.6 |
|---|---|
| Color Temperature | 2860 |
| Light Center Length (LCL) | 1 1/8 |
| Lumens | 70 |
Physical Characteristics | |
| Base | P15s30A |
|---|---|
| Bulb Shape | T5 |
| Filament | C-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 100 |
General Information | |
| Lamp Code | BSS |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | BSB, G/5 |
Substitution Notes | |
| Possible Substitution | BSB |
|---|---|
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

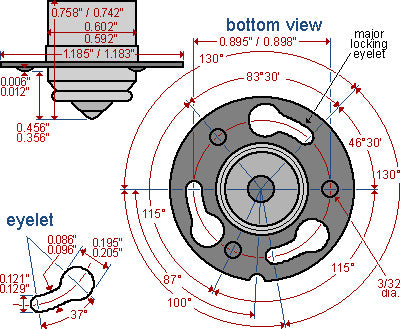

P15s30A Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | BSS | 1.0A, 6V | |
| Microlites | 06-006-64 | ||
| Canimpex | 06-006-64 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Ampro Corporation | UAB | Projector |
| Ampro Corporation | Century 10-A | Projector |
| Ampro Corporation | Paramount 20 | Projector |
| Ampro Corporation | UA | Projector |
| Ampro Corporation | Century 10 | Projector |
| Ampro Corporation | AA | Projector |
| Ampro Corporation | YA | Projector |
| Ampro Corporation | YSA | Projector |
| Ampro Corporation | Premier 20 | Projector |
| Ampro Corporation | XC | Projector |
| Ampro Corporation | XA | Projector |
| Ampro Corporation | Premier 10 | Projector |
| Apollo | QL-100 | |
| Connecticut Telephone & Electric | Sound Kong C-1 | 16mm Movie Projector |
| DeVry | Z | 16mm Movie Projector |
| DeVry | Paromel 3500 (w/ #1000 condenser system) | 35mm Sound Movie Projector |
| DeVry | Paromel 10 | 35mm Sound Movie Projector |
| DeVry | D | 35mm Sound Movie Projector |
| DeVry | Paromel 2810 | 35mm Sound Movie Projector |
| DeVry | Paromel 2810 (w/ #1000 condenser system) | 35mm Sound Movie Projector |
| DeVry | Paromel 3500 (w/ old condenser system) | 35mm Sound Movie Projector |
| DeVry | XD | 35mm Sound Movie Projector |
| DeVry | Paromel 2802 (w/ #1000 condenser system) | 35mm Sound Movie Projector |
| DeVry | Paromel 2802 | 35mm Sound Movie Projector |
| DeVry | Paromel 12000 | 35mm Sound Movie Projector |
| DeVry | Paromel 2800 (w/ old condenser system) | 35mm Sound Movie Projector |
| DeVry | 15 Super 16 | 16mm Movie Projector |
| DeVry | 14000-AA | 16mm Movie Projector |
| Empire Projector Corp. | Empire PX | |
| Graflex | UAB | |
| Graflex | Century-10 | |
| Graflex | UA | |
| Graflex | Paramount-20 | Projector Slide / Filmstrip |
| Graflex | Premier-10 | Projector Slide / Filmstrip |
| Graflex | Premier-20 | Projector Slide / Filmstrip |
| Graflex | AA | |
| Graflex | Century-10A | |
| Graflex | YA | |
| Graflex | YSA | |
| Graflex | XA | |
| Helene Curtis Industries | Natco 3030 | Medical |
| Helene Curtis Industries | Natco 3015 | Medical |
| Hokusin / Hokushin | SC-10 | |
| Hokusin / Hokushin | SC-10S | |
| Holmes Projector Company | Television | |
| Holmes Projector Company | Rex II-A (excluding first 100 machines) | 35mm Sound Movie Projector |
| Holmes Projector Company | 7-A | 35mm Sound Movie Projector |
| Holmes Projector Company | All Others | |
| Holmes Projector Company | Rex II | |
| Holmes Projector Company | TP Television | |
| Holmes Projector Company | ITP Television | |
| Holmes Projector Company | Tutor | |
| Kalart Victor | Moviematic STM-18-MCC | |
| Kalart Victor | Moviematic 70-25 | |
| Kalart Victor | Moviematic 70-25-RP | |
| Kalart Victor | Moviematic TM-3-C | |
| Kalart Victor | Moviematic 70-15 | |
| Kalart Victor | Sovereign 25 | |
| Kalart Victor | Moviematic ST-18 | |
| Kalart Victor | Moviematic STM-18 | |
| Kalart Victor | 82-25-MPR | |
| Kalart Victor | Moviematic Duolite ST-18 | |
| Kalart Victor | Moviematic STM-3 | |
| Kalart Victor | Duolite STV-18 | |
| Kalart Victor | Moviematic 70-15-MP | |
| Kalart Victor | Duolite ST-18 | |
| Kalart Victor | Moviematic STM-3-C | |
| Kalart Victor | Mark V | |
| Kalart Victor | Moviematic Sovereign 25 | |
| Kalart Victor | Moviematic Mark V | |
| Kalart Victor | Duolite STVA-18 | |
| Kalart Victor | 80-1600 | |
| Kalart Victor | Duolite STM-18 | |
| Kalart Victor | Moviematic Duolite STVA-18 | |
| Kalart Victor | Moviematic 70-15-RP | |
| Kalart Victor | Moviematic STVA-18 | |
| Kalart Victor | Mark V-MC-3 | |
| Kalart Victor | Moviematic Duolite STV-18 | |
| Kalart Victor | Moviematic STV-18 | |
| Kalart Victor | STM-18-MCC | |
| Kalart Victor | Moviematic Mark V-MC3 | |
| Kalart Victor | Moviematic Classmate 4 | |
| Kalart Victor | Moviematic 82-25-MPR | |
| Kalart Victor | Moviematic STM-18-MC-3 | |
| Kalart Victor | Moviematic STV-TB | |
| Kalart Victor | Moviematic 90-12 | |
| Kalart Victor | Moviematic Assembly 10 | |
| Kalart Victor | Moviematic TM-3 | |
| Kalart Victor | 7015 | |
| Moviola Mfg. Co. | K-20 | 16mm Viewer/Editing |
| Moviola Mfg. Co. | LVR | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UK-20-S | 16mm Viewer/Editing |
| Moviola Mfg. Co. | L-20 | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UDC | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UD-20-CS | 16mm & 35mm Viewer/Editing | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UC-20-S | 16mm & 35mm Viewer/Editing | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UDS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | D-20 | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | UL-20-CS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | LP | 16mm Viewer/Editing |
| Moviola Mfg. Co. | Preview | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | UKPS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | 20 | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | UL-20-S | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UCS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | UDCS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | ULPS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | ULPCS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | U1-20-CS | 16mm Viewer/Editing |
| Moviola Mfg. Co. | KP | 16mm Viewer/Editing |
| Moviola Mfg. Co. | Series 20 | |
| Moviola Mfg. Co. | C-20 | 16mm & 35mm Viewer/Editing |
| Moviola Mfg. Co. | UD-20-S | 16mm & 35mm Viewer/Editing | 16mm Viewer/Editing |
| Precision Laboratories | 650-RL | |
| Precision Laboratories | 800-RL | |
| Precision Laboratories | 600-RL | |
| Precision Laboratories | 600 | |
| Precision Laboratories | 800 | |
| RCA | TP-66 | Projector |
| Rangertone/Hokusin | X-310 | |
| Rangertone/Hokusin | SC-210 | |
| Rangertone/Hokusin | SC-10 | |
| Technical Service Inc. (TSI) | Moviematic STM-18 | Projector |
| Technical Service Inc. (TSI) | Moviematic TM-3 | Projector |
| Technical Service Inc. (TSI) | Duolite STM-18 | Projector |
| Technical Service Inc. (TSI) | Moviematic TM-3C | Projector |
| Technical Service Inc. (TSI) | Moviematic STM-3C | Projector |
| Technical Service Inc. (TSI) | Duolite STVA-18 | Projector |
| Technical Service Inc. (TSI) | Teclite S-18 | Projector |
| Technical Service Inc. (TSI) | Duolite ST-18 | Projector |
| Technical Service Inc. (TSI) | Teclite S-20 | Projector |
| Technical Service Inc. (TSI) | Duolite STV-18 | Projector |
| Technical Service Inc. (TSI) | Moviematic STM-3 | Projector |
| Technicolor | 1000A | |
| Technicolor | 1000B | |
| Technicolor | 1000 | |
| Technicolor | 1400 | |
| Technicolor | 1300 | |
BSS may also be listed as: | |||
| 00350 WIKO | 048777105184 UPC | 1000079 USHIO | 1A-6 GENERAL-ELECTRIC |
| 1A-6V GENERAL-ELECTRIC | 1A/T5/7 GENERAL-ELECTRIC | 1A/T5/P15S30/CL/C8/6V | 1AMP-6VOLT GENERAL-ELECTRIC |
| 1AMP-T5-7 SYLVANIA | 1AMP-T5-7 WESTINGHOUSE | 1AMP-T5-7-6VOLT SYLVANIA | 1AT5-7 SYLVANIA |
| 1AT5-7 WESTINGHOUSE | 1AT5-7-6 SYLVANIA | 1AT5-7-6V SYLVANIA | 39709 GENERAL-ELECTRIC |
| 6-1A GENERALELECTRIC | 6-6P15S | 6-6P30S | 6-6SCP |
| 6-6T5 | 6-6WP15S | 6-6WP30S | 6-6WSCP |
| 6-6WT5 | 6V-1A GENERAL-ELECTRIC | 6V-1A-G5-P30S THORN | 6V-1A-GF-PREF.COLLAR-G5 METROVICK |
| 6V-1A-GF-PREFCOLLAR-G5 METROVICK | 6V-6-P15S | 6V-6-P30S | 6V-6-SCP |
| 6V-6-T5 | 6V-6W-P15S | 6V-6W-P30S | 6V-6W-SCP |
| 6V-6W-T5 | 6VOLT-1AMP GENERAL-ELECTRIC | 6VOLT-6WATT-P15S30 | 6VOLT-6WATT-T5 |
| 7210-6-1A | 6/6/7210 | 7210-6-6W | 7210-6V1A |
| 7210-6V6 | 7210-6V6W | 7210-6VOLT-1AMP | 7210-6VOLT-6WATT |
| 7210-C PHILIPS | 7210C/6V/1A/P30S/T16.5MM/28.6MMLCL/49MMMOL/100H PHILIPS | 7210C/6V/1A/P30S/T5.25/28.6MMLCL/49MMMOL/100H PHILIPS | 7210C/BSS-ANSI PHILIPS |
| 7210C/BSS/BSB-ANSI PHILIPS | 7210C/G5-LIF PHILIPS | BSB/BSS ANSI | BSS ANSI |
| BSS ASA | BSS GENERAL-ELECTRIC | BSS INTERLIGHT | BSS MICROLAMP |
| BSS SYLVANIA | BSS USHIO | BSS WESTINGHOUSE | BSS-50MMMOL ANSI |
| BSS-6 ANSI | BSS-6 ASA | BSS-6V ANSI | BSS-6V ASA |
| BSS-6V-1A | BSS-6V-1A ANSI | BSS-6V-1A-P30S-T5-C8-CLEAR-70L-100H-ANY-2-3/8MOL-1-1/8LCL-I-SOUND-REPRODUCTION-EXCITER | BSS-6V-6W ANSI |
| BSS-6V-6W ASA | BSS-6V-6W-P30S USHIO | BSS-6V-SHORT/6V/6W/P15S30A ANSI | BSS-6V/6V/6W/P15S30A ANSI |
| BSS-6VOLT ANSI | BSS-6VOLT ASA | BSS-6W-6V-P30S USHIO | BSS-BSB ANSI |
| BSS-BSB ASA | BSS-BSB KONDO | BSS-BSB SYLVANIA | BSS-BSB WESTINGHOUSE |
| BSS-BSB/6V-1A-EXCITER LAMPTECH | BSS-SHORT ANSI | BSS-SHORT/6V/6W/P15S30A ANSI | BSS-USHIO LAMPTECH |
| BSS-USHIO/6V-1A-EXCITER LAMPTECH | BSS/6V GENERAL-ELECTRIC | BSS/6V/6W/P15S30A ANSI | BSS/7210C-PHILIPS ANSI |
| BSS/BSB BULB-DIRECT | BSS/BSB INTERLIGHT | BSS/BSB LAMPTECH | BSS/BSB USHIO |
| BSS/BSB WIKO | BSS/BSB-6V-6W-P30S USHIO | BSS/BSB-6W-6V-P30S USHIO | BSS/BSB/6V GENERAL-ELECTRIC |
| BSS/BSB/7210C-PHILIPS ANSI | BW-BSS | EQ-G/5 ELECTROQUIP | EQ-G/5/6V-1A ELECTROQUIP |
| G-.31 | G-.5 | G-0.31 | G-0.5 |
| G-05 | G-31 THORN | G-5 ATLAS | G-5 CINETONE |
| G-5 EKCO | G-5 LIF | G-5 METROVICK | G-5 THORN |
| G-5W THORN | G-5WATT THORN | G/40 THORN | G/5 MAZDA |
| G/5 OSRAM | G/5-6V-1A-P1519 ATLAS | G/5-6V-1A-P30S-T16-C8-CLEAR-74L-100H-VBD45-50MMMOL-28.5MMLCL-PLUS-MINUS-0.5MM-I | G/5-6V-1AMP-P1519 ATLAS |
| G/5/6V/1A MAZDA | G5-6V LIF | G5-6V-1A | G5-6V-1A ATLAS |
| G5-6V-1A LIF | G5-6V-1A THORN | G5-6V-1A-P15S ATLAS | G5-6V-1A-P15S19 ATLAS |
| G5-6V-1AMP-P15S ATLAS | G5-6V-1AMP-P15S19 ATLAS | G5/1A/6V MAZDA | G5/7210C-PHILIPS LIF |
| I/6V/1A/P15S/T16.25MM/C8/29MMLCL/80L/50MMMOL/100H/7210C PHILIPS | I/6V/6W/P15S30/T5/AX/100H | I/6V/6W/P15S30/T5/AX/100H/BSS | I/6V/6W/P15S30/T5/AX/100H/BSS-SHORT |
| I/6V/6W/P15S30/T5/AX/BSS | I/6V/6W/P15S30/T5/AX/BSS-SHORT | I/6V/6W/P15S30/T5/AX/SHORT/100H | I/6V/6W/P15S30/T5/C8/100H |
| I/6V/6W/P15S30/T5/C8/100H/BSS | I/6V/6W/P15S30/T5/C8/100H/BSS-SHORT | I/6V/6W/P15S30/T5/C8/29MMLCL/80L/50MMMOL/100H/7210C PHILIPS | I/6V/6W/P15S30/T5/C8/BSS |
| I/6V/6W/P15S30/T5/C8/BSS-SHORT | I/6V/6W/P15S30/T5/C8/SHORT/100H | I/6V/6W/P15S30A/T5/AX/100H | I/6V/6W/P15S30A/T5/AX/100H/BSS |
| I/6V/6W/P15S30A/T5/AX/100H/BSS-SHORT | I/6V/6W/P15S30A/T5/AX/BSS | I/6V/6W/P15S30A/T5/AX/BSS-SHORT | I/6V/6W/P15S30A/T5/AX/SHORT/100H |
| I/6V/6W/P15S30A/T5/C8/100H/BSS | I/6V/6W/P15S30A/T5/C8/100H/BSS-SHORT | I/6V/6W/P15S30A/T5/C8/BSS | I/6V/6W/P15S30A/T5/C8/BSS-SHORT |
| I/6V/6W/P15S30A/T5/C8/SHORT/100H | I/6V/6W/P15S30A/T5/CL/100H/BSS | I/6V/6W/P15S30A/T5/CL/100H/BSS-SHORT | INC-6V-6W-1.0A-C8-100HR USHIO |
| INC-6V-6W-1.0A-C8-100HR/6V/6W/P30S USHIO | INC-6V-6W-1.0A-C8-100HR/6V/6W/P30S/BSS/BSB USHIO | INC-6V-6W-1.0A-C8-100HR/BSS/BSB USHIO | KE-070 KONDO |
| KE-070-6VOLT-1AMP KONDO | KE070-6-1A KONDO | KE070-6V1A KONDO | P-7504 HOSOBUCHI |
| P7504/6V/1A/P30S10.3/T16MM/C8/28.5MMLCL/55MMMOL/75L/100H/GAS/BSS-BSB ANSI | PH-1AMP-T5-7 WESTINGHOUSE | PH-1AMP-T5-7-6VOLT WESTINGHOUSE | PH/1A/T5/7 GENERAL-ELECTRIC |
| PH1AT5-7 WESTINGHOUSE | PH1AT5-7-6 WESTINGHOUSE | PH1AT5-7-6V WESTINGHOUSE | SP6T5P15S30AC86V-BSS |
| SP6T5P15S30AC86V-BSS-SHORT | SP6T5P15S30ACL6V-BSS | SP6T5P15S30ACL6V-BSS-SHORT | SP6T5SCPAC86V-BSS |
| SP6T5SCPAC86V-BSS-SHORT | SP6T5SCPACL6V-BSS | SP6T5SCPACL6V-BSS-SHORT | SP6T5SCPAX6V |
| SP6T5SCPAX6V-BSS | SP6T5SCPAX6V-SHORT | SP6T5SCPC8-6V | SP6T5SCPC8-6V-SHORT |
| SP6T5SCPC86V-BSS | SP6T5SCPC86V-BSS-SHORT | SP6T5SCPCL6V-BSS | SP6T5SCPCL6V-BSS-SHORT |
