BSW ANSI Code
BSW ANSI is a T5 lamp with a P15s30A base operating at 1.4 watts and 7 volts. It has a color temperature of 2680 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BSW lamps.

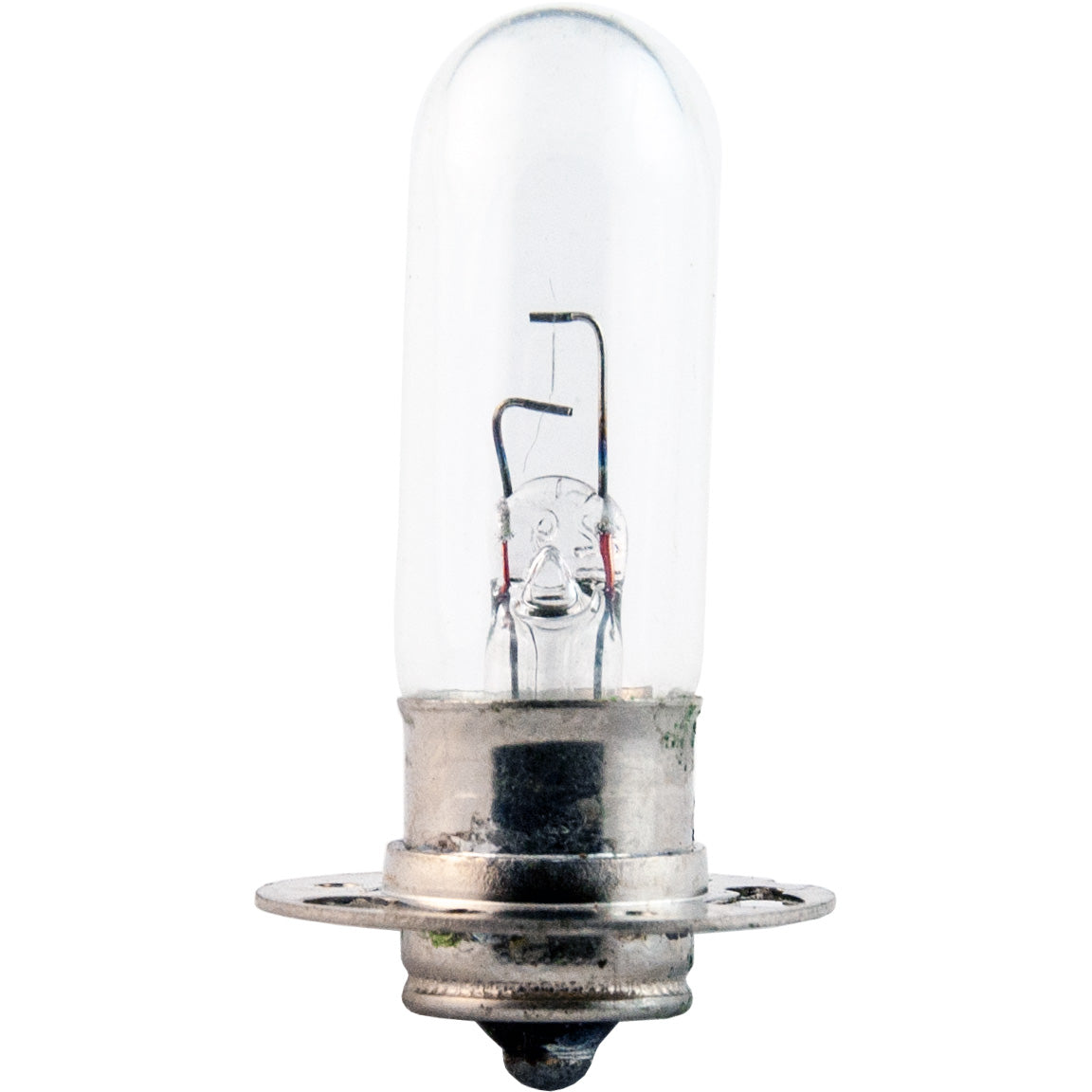

BSW Photograph |
 |
Electrical Specifications | |
| Amps | 0.2 |
|---|---|
| Volts | 7 |
| Watts | 1.4 |
Photometrics | |
| Candlepower | 1.2 |
|---|---|
| Color Temperature | 2680 |
| Light Center Length (LCL) | 1 1/8 |
| Lumens | 15 |
Physical Characteristics | |
| Base | P15s30A |
|---|---|
| Bulb Shape | T5 |
| Filament | C-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | BSW |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
P15s30A Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | BSW | 0.20A, 7V | |
| Microlites | 07-1.4-69 | ||
| Canimpex | 07-1.4-69 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Ampro Corporation | N | Projector |
| Ampro Corporation | YS | Projector |
| Ampro Corporation | Y | Projector |
| Ampro Corporation | U | Projector |
| Ampro Corporation | L | Projector |
| Ampro Corporation | M | Projector |
| Ampro Corporation | Century 5 | Projector |
| Ampro Corporation | X | Projector |
| Graflex | X | |
| Graflex | YS | |
| Graflex | L | |
| Graflex | Century-5 | |
| Graflex | Graflex 16 | Projector Slide / Filmstrip |
| Graflex | Y | |
| Graflex | 915 | 35mm Sound Movie Projector |
| Graflex | 920 | 35mm Sound Movie Projector |
| Graflex | 900 | |
| Graflex | U | |
| Graflex | Graflex 16-715 | |
| Graflex | M | Projector Filmstrip Sound |
| Graflex | N | Projector Slide / Filmstrip |
| Helene Curtis Industries | Natco 3030 | Medical |
| Helene Curtis Industries | Natco 3015 | Medical |
| Sears Roebuck | 8401 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 8401 SEARS | Projector Slide / Filmstrip |
| Singer Corporation | Insta Load 1120 | |
| Singer Corporation | Gralfex-16 915 | |
| Singer Corporation | Arc Light Projector 940 | |
| Singer Corporation | Gralfex-16 715 | |
| Singer Corporation | Arc Light Projector 2180 | |
| Singer Corporation | Graflex-16 1015 | |
| Singer Corporation | Gralfex-16 900 | |
| Singer Corporation | 092-BP | |
| Singer Corporation | Insta Load 1115 | |
| Singer Corporation | Insta Load 2110 | |
| Singer Corporation | Insta Load 2170 | |
| Singer Corporation | Insta Load 2160 | |
| Singer Corporation | Graflex-16 1020 | |
| Singer Corporation | Graflex-16 1050 | |
| Singer Corporation | Arc Light Projector 1040 | |
| Singer Corporation | Insta Load 2120 | |
| Singer Corporation | Arc Light Projector 1115 | |
| Singer Corporation | Arc Light Projector 1120 | |
| Singer Corporation | Gralfex-16 920 | |
| Victor Animatograph | 36 | |
| Victor Animatograph | 33 | |
| Victor Animatograph | 31 | |
