BTD ANSI Code
BTD ANSI is a T5 lamp with a P15d30A base operating at 1.4 watts and 7 volts. It has a color temperature of 2680 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BTD lamps.

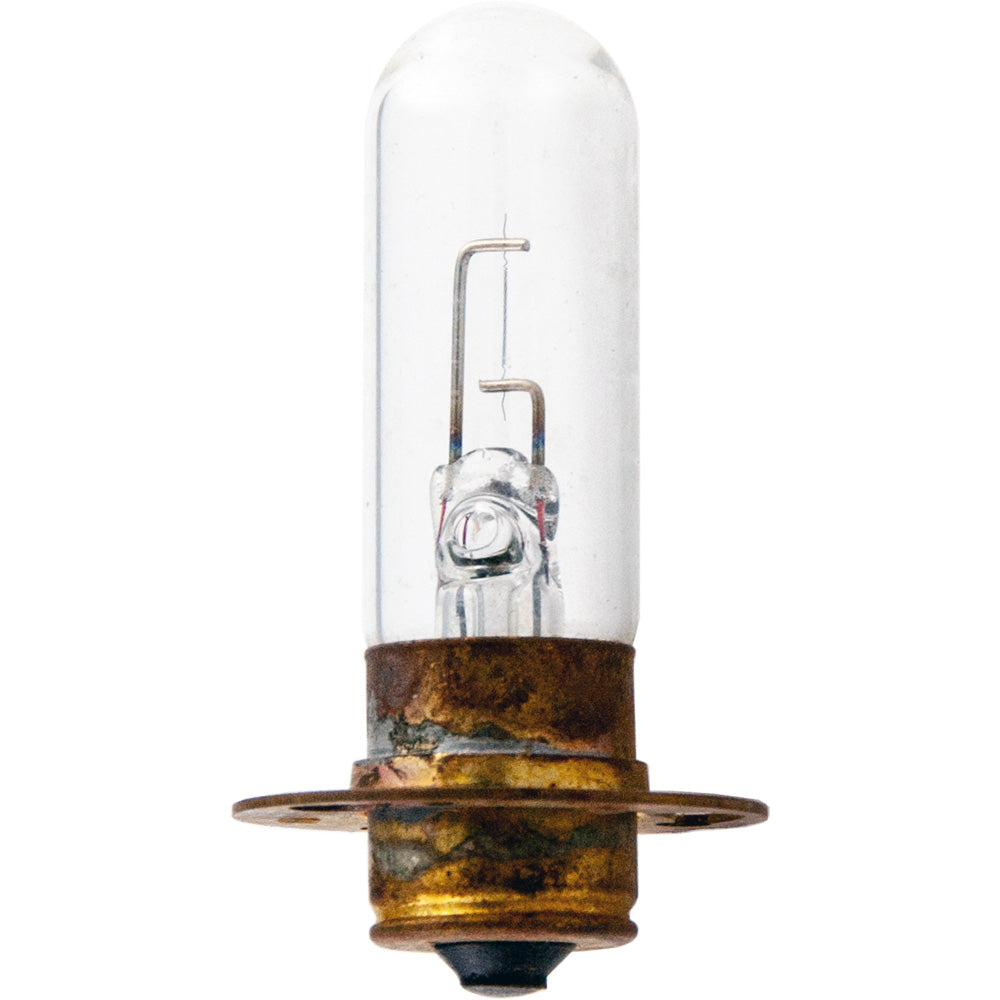

BTD Photograph |
 |
Electrical Specifications | |
| Amps | 0.2 |
|---|---|
| Volts | 7 |
| Watts | 1.4 |
Photometrics | |
| Candlepower | 1.3 |
|---|---|
| Color Temperature | 2680 |
| Light Center Length (LCL) | 1 1/8 |
| Lumens | 15 |
Physical Characteristics | |
| Base | P15d30A |
|---|---|
| Bulb Shape | T5 |
| Filament | C-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | BTD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
P15d30A Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 07-1.4-67 | ||
| Canimpex | 07-1.4-67 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Bolex | G8-16 | |
| Bolex | G-16 | |
| Busch Film & Equipment | Cinesalesman 4A | 16mm Projector Movie Sound |
| Busch Film & Equipment | Cinesalesman 4 | |
| Busch Film & Equipment | C-240D | |
| Busch Film & Equipment | Cartoon Circus 35 | Projector Slide / Filmstrip |
| Busch Film & Equipment | Cinesalesman 3 | |
| Busch Film & Equipment | Cinesalesman Senior 4 | |
| Busch Film & Equipment | C-240C | |
| Busch Film & Equipment | Cine-Educator | 16mm Projector Movie Sound |
| Busch Film & Equipment | Cartoon Circus | |
| Eastman Kodak | AV-154 | |
| Eastman Kodak | Pageant AV-126TR | |
| Eastman Kodak | Pageant Sound AV-154 | |
| Eastman Kodak | AV-256-TR | |
| Eastman Kodak | AV-255-S | |
| Eastman Kodak | Pageant Sound AV-154S Type II | |
| Eastman Kodak | Pageant Sound | |
| Eastman Kodak | Sound | |
| Paillard | Bolex G-8-16 | |
| Paillard | Bolex G-16 | |
| RCA | 35051-A | Projector |
| RCA | 1600-XL | Projector |
| RCA | M1-35051-A | Projector |
| RCA | 1600 | Projector |
Sources
- "Projection Lamp and Equipment Guide." Guide. GE Lighting, 1990.
- "Sylvania Photolamps." Catalog. GTE Sylvania, 1974.
- "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, 1970s.
- "Technical Manual: Photolamp Division." Manual. Sylvania Electric Products Inc., 1954.
