BTG ANSI Code

BTG ANSI is a T7 lamp with a G17T-7 base operating at 1200 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Clear finish. The average rated life is 20 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BTG lamps.

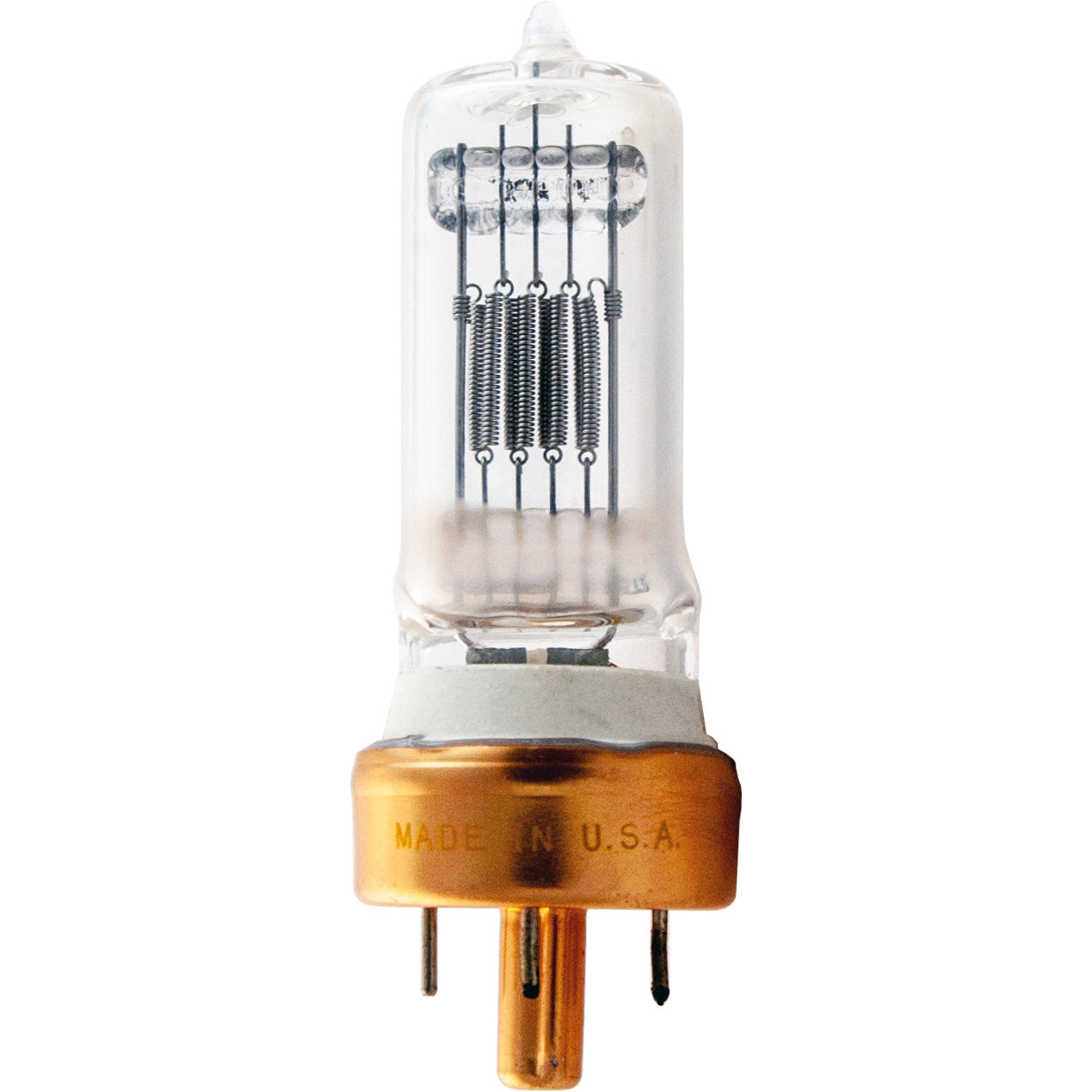

BTG Photograph

BTG

Electrical Specifications

Amps10
Volts120
Watts1200

Photometrics

Candlepower3000
Color Temperature3350
Light Center Length (LCL)1 9/16
Lumens38200

Physical Characteristics

BaseG17T-7
Bulb ShapeT7
FilamentC-13D
FinishClear
Max Overall Length (MOL)3 3/4
Diameter23 mm

Operating Characteristics

Burn PositionBase Down
Life Hours20

General Information
Lamp CodeBTG
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T7 Shape

T7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Ushio1000082BTG, JCS120V-1200W
Kahoku Lighting Solutions (KLS)62004-KLSBTG Japan
Microlites120-1200-31G
Canimpex120-1200-31G
