BTH ANSI Code

BTH ANSI is a T6 lamp with a P28s base operating at 575 watts and 115 volts. It has a color temperature of 3250 Kelvin. It has a Clear Glass finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BTH lamps.

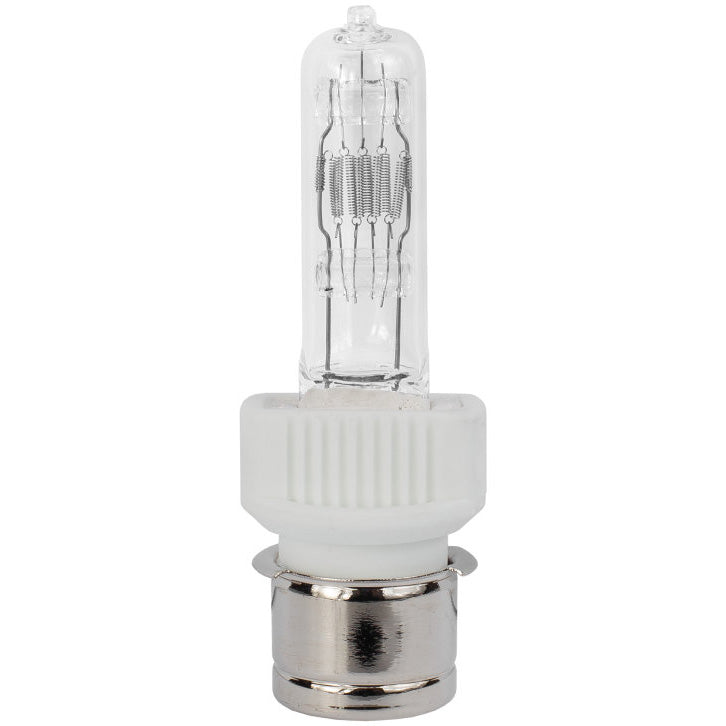

BTH Photograph

BTH

Electrical Specifications

Amps5
Volts115
Watts575

Photometrics

Color Temperature3250
Lumens15500

Physical Characteristics

BaseP28s
Bulb ShapeT6
FilamentC-13D
FinishClear Glass
Max Overall Length (MOL)2.168"

Operating Characteristics

Life Hours300

General Information
Lamp CodeBTH
Code TypeANSI

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Osram Sylvania54365BTH

Equipment Used In

BrandModelType
Selecon RAMA 150MM/6-IN FRESNEL 575W 115V BTH

BTH may also be listed as:
54365 OSRAMBTH ANSIBTH OSRAMBTH-115V/115V/575W/P28S ANSI
BTH-575W/115VBTH-OSRAM-54365-T-6-CL.-QUARTZ-575W/115V-P-28S-65Q-FRESNBTH/115V/575W ANSIBTH/115V/575W/P28S ANSI
H/115V/575W/P28S/T6/CL
