BTM ANSI Code

BTM ANSI is a T6 lamp with a P28s base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BTM lamps.

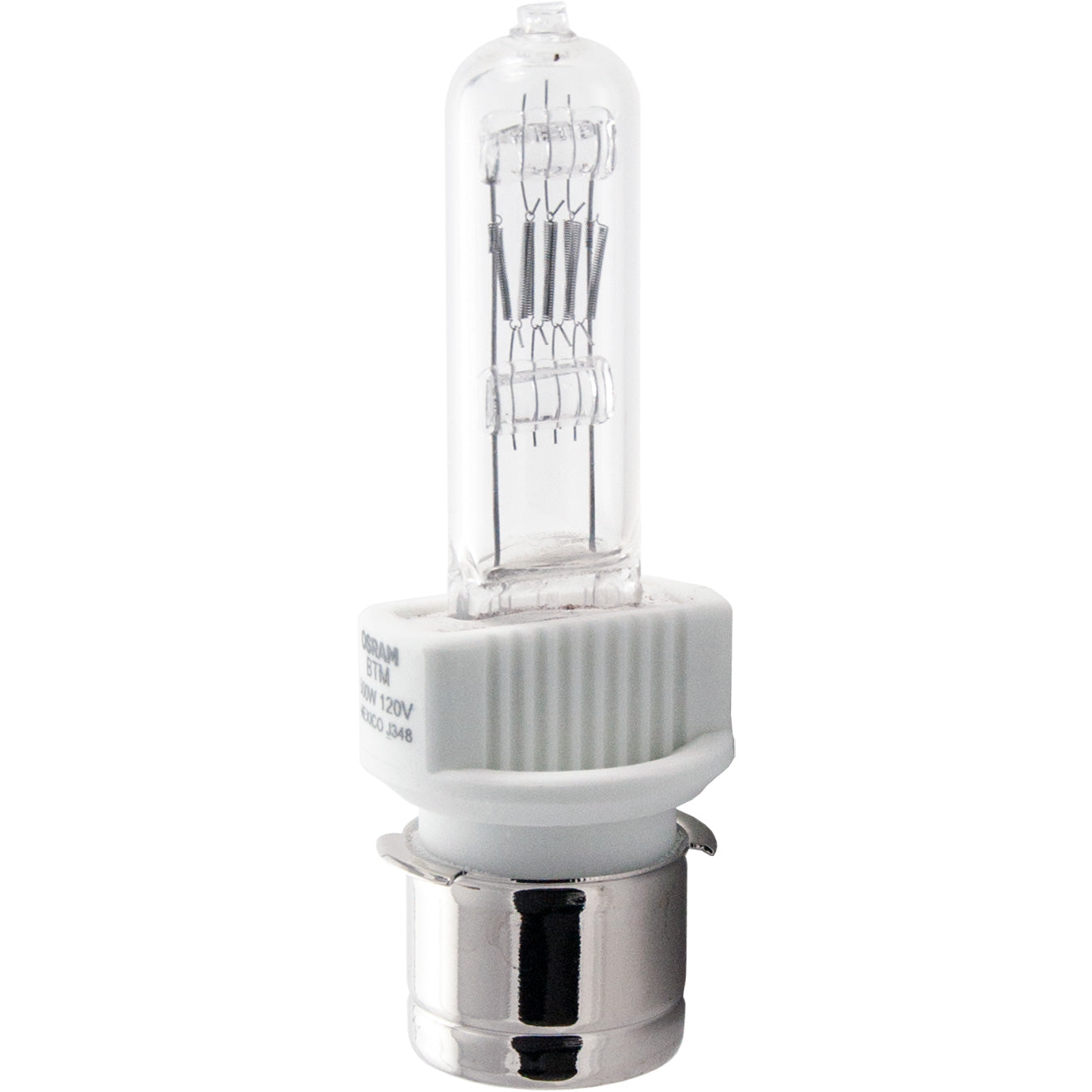

BTM Photograph

BTM

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower1000
Color Temperature3200
Light Center Length (LCL)2 3/16
Lumens13000

Physical Characteristics

BaseP28s
Bulb ShapeT6
FilamentC-13D
FinishClear
Max Overall Length (MOL)4 1/2

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours100

General Information
Lamp CodeBTM
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762015BTM
General Electric16465BTM-Q500T6/4CL/2P
Osram Sylvania54686BTM
Ushio1000084BTM, JCS120V-500WC
Microlites120-500-63TM
Canimpex120-500-63TM

Equipment Used In

BrandModelType
Altman Lighting 165Q 6-Fresnel
L&E 60-10 6 Fresenl Stage / Studio
