BTR ANSI Code

BTR ANSI is a T7 lamp with a P28s base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 250 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BTR lamps.

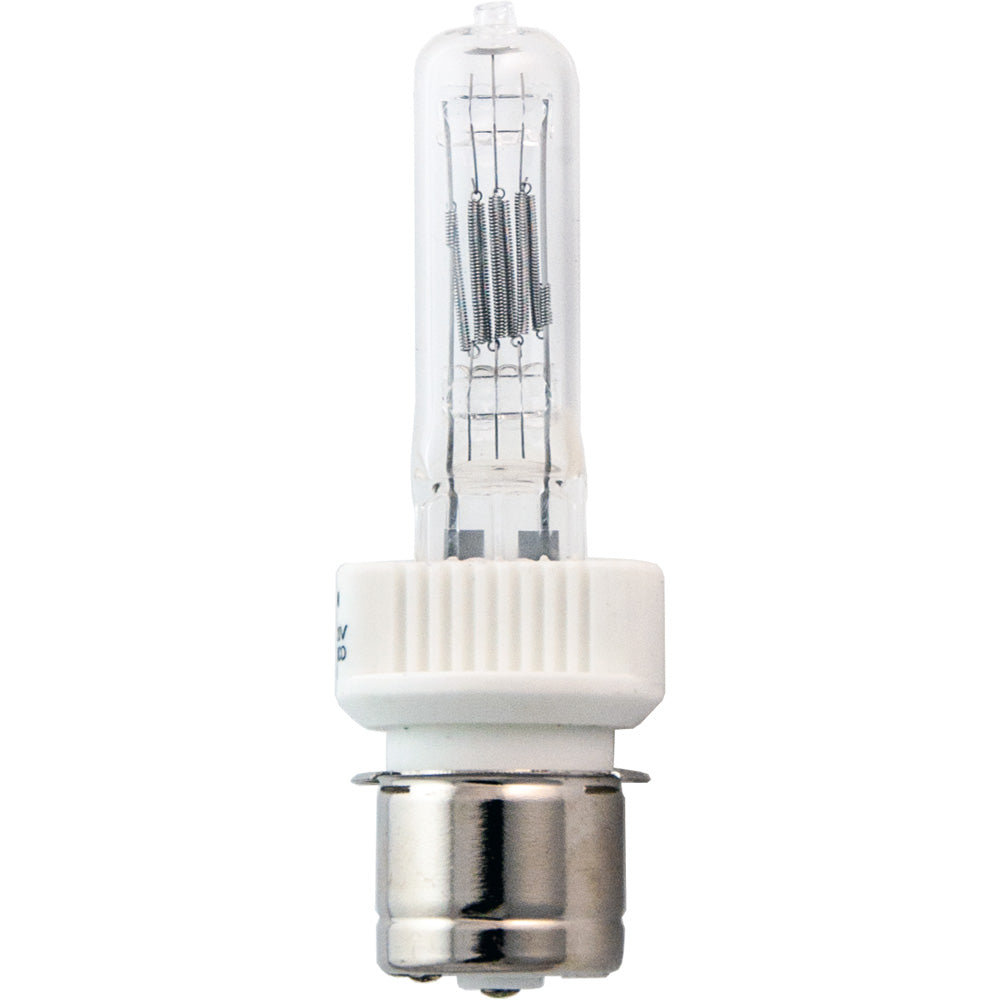

BTR Photograph

BTR

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3200
Light Center Length (LCL)2 3/16
Lumens28500

Physical Characteristics

BaseP28s
Bulb ShapeT7
FilamentC-13D
FinishClear
Max Overall Length (MOL)4 1/2

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours250

General Information
Lamp CodeBTR
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T7 Shape

T7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
3M78-8454-3456-8
Altman Lighting1KAF-MPF
Bulbrite762030BTR
Colortran176-171
General Electric11955BTR-Q1000T74CL2P
Grainger6VN50
Osram Sylvania54689BTR 120V STUDIO
Philips305334BTR 1000T7Q/4CL/2P 120V 10PK
Sunlite70505BTR
Ushio1000087BTR, JCS120V-1000WC
Green Energy Lighting (GELCO)63204-GELBTR
Norman LampsBTR1000W, 120V
Microlites120-1000-63Q
Canimpex120-1000-63Q

Equipment Used In

BrandModelType
Altman Lighting CCT 6-Inch Fresnel
Altman Lighting 1KAF-MPF 6-Inch Fresnel
Altman Lighting 1-KAF-MPF 6-Die Case Stage Fresnel Stage / Studio
L&E 60-10 6 Fresenl Stage / Studio
Strand Lighting 6" Fresnelite
Strand Lighting Strand 6 Fresnelite Stage / Studio
