BVA ANSI Code
BVA ANSI is a T7 lamp with a GY9.5 base operating at 900 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Proximity Reflector finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVA lamps.

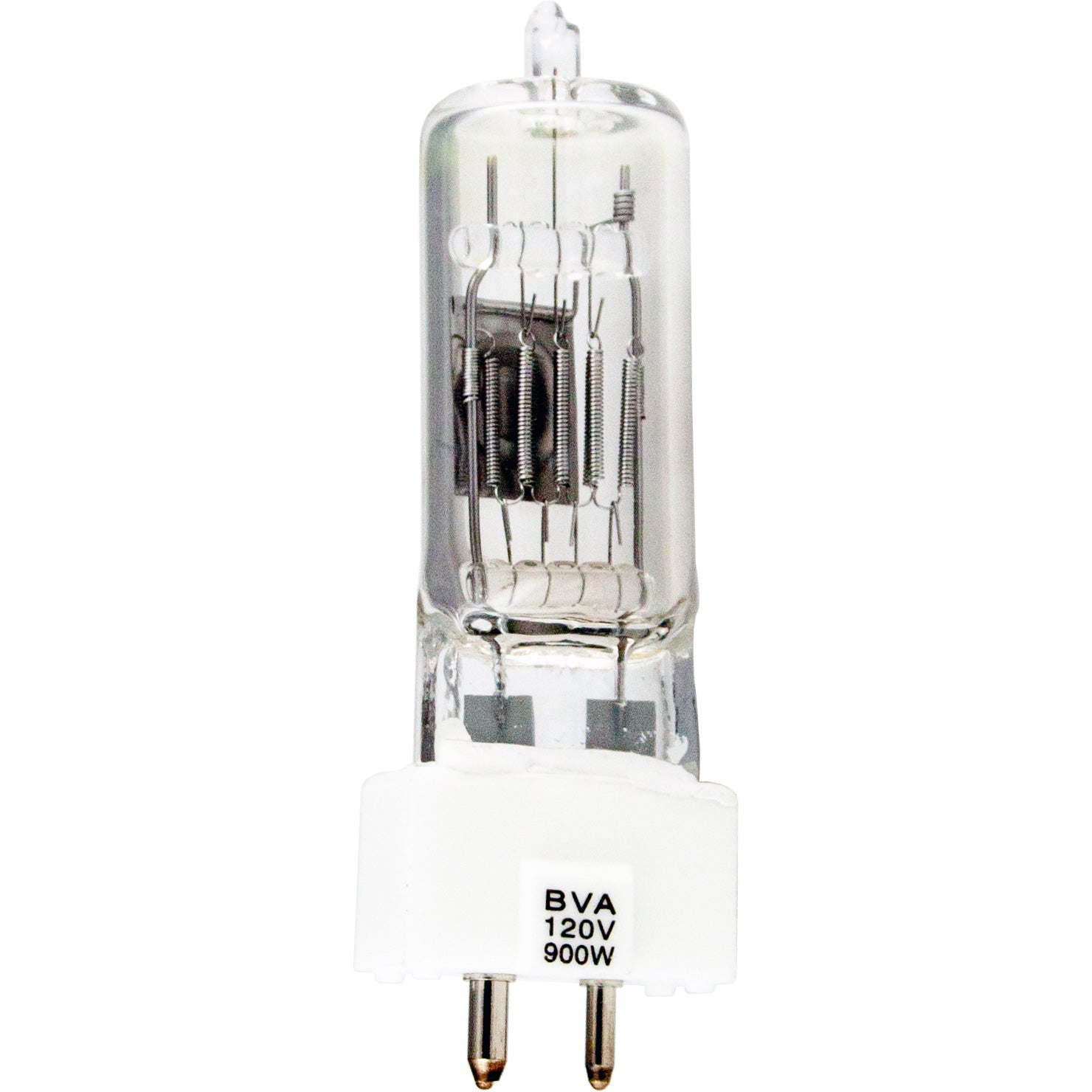

BVA Photograph |
 |
Electrical Specifications | |
| Amps | 7.5 |
|---|---|
| Volts | 120 |
| Watts | 900 |
Photometrics | |
| Color Temperature | 3300 |
|---|---|
| Light Center Length (LCL) | 1 3/4 |
| Lumens | 75 |
Physical Characteristics | |
| Base | GY9.5 |
|---|---|
| Bulb Shape | T7 |
| Filament | C-13D |
| Finish | Proximity Reflector |
| Max Overall Length (MOL) | 3 1/2 |
| Diameter | 23 mm |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 75 |
General Information | |
| Lamp Code | BVA |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T7 Shape | |
 | |
| Diameter Designation | 7/8" |
|---|---|
| Glass Diameter | 7/8" (0.875") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
GY9.5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| 3M | 78-8000-7618-0 | ||
| 3M | 78-8003-9159-7 | ||
| Osram Sylvania | 54673 | BVA | |
| Osram Sylvania | 64732 | ||
| Philips | 7804 | ||
| Ushio | 1000088 | BVA, JCS120V-900W | |
| Norman Lamps | BVA | 900W, 120V | |
| Microlites | 120-900-29 | ||
| Canimpex | 120-900-29 | ||
Equipment Used In | ||
| Brand | Model | Type |
| 3M | Model 521 | |
| 3M | Model 522 (Glare Free, serial numbers to 300001 w/ heat filter) | |
| 3M | 526 (serials to 300001 w/ heat filter) | |
| 3M | Model 66-AG | |
| 3M | Model 121 | |
| 3M | Model 522 (Glare Free) | |
| 3M | Model 66 (over 66ARC291001) | |
| 3M | Model 121 (Glare Free) | |
| 3M | Model 66-ARC (serials over 291001) | |
| 3M | Model 66 (serials over 66ARC291001) | |
| 3M | Standard 121 | |
| 3M | Model 521 (Glare Free, serial numbers to 300001 w/ heat filter) | |
