BVE ANSI Code

BVE ANSI is a T6 lamp with a GZ9.5 base operating at 600 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Proximity Reflector finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVE lamps.

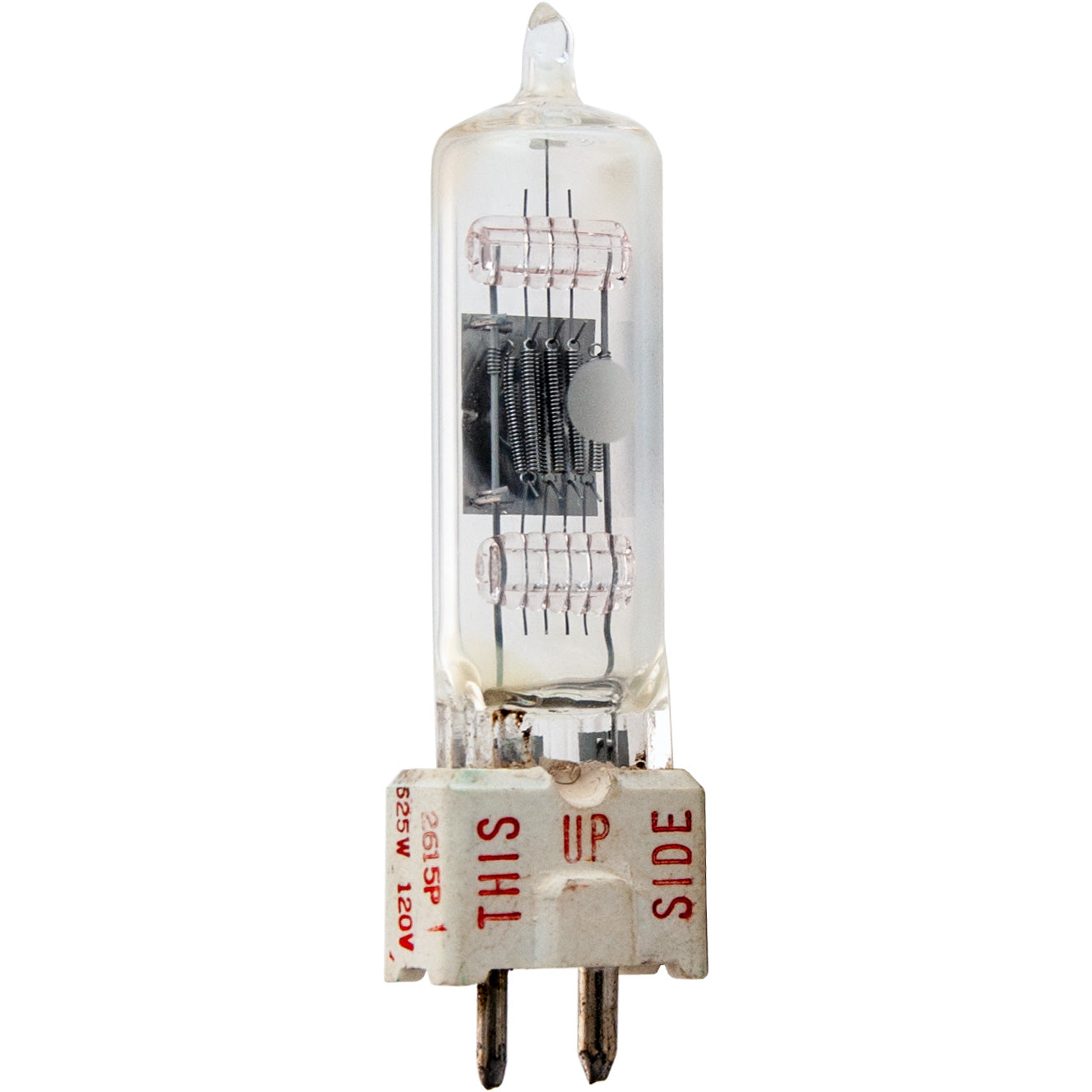

BVE Photograph

BVE

Electrical Specifications

Amps5
Volts120
Watts600

Photometrics

Color Temperature3350
Light Center Length (LCL)1 3/4

Physical Characteristics

BaseGZ9.5
Bulb ShapeT6
FilamentC-13D
FinishProximity Reflector
Max Overall Length (MOL)3 1/2

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours75

General Information
Lamp CodeBVE
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-003-3324

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

GZ9.5 Base

GZ9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Kahoku Lighting Solutions (KLS)62006-KLSBVE Japan
Microlites120-625-29
Microlites125-625-29
Canimpex120-625-29
Canimpex125-625-29

Equipment Used In

BrandModelType
3M Model 521
3M Model M526
3M Model M567
3M M-526
3M Model 522
Buhl OSP
H. Wilson Corp. 2300
