BVK ANSI Code

BVK ANSI is a T8 lamp with a P15s30A base operating at 32.5 watts and 5 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVK lamps.

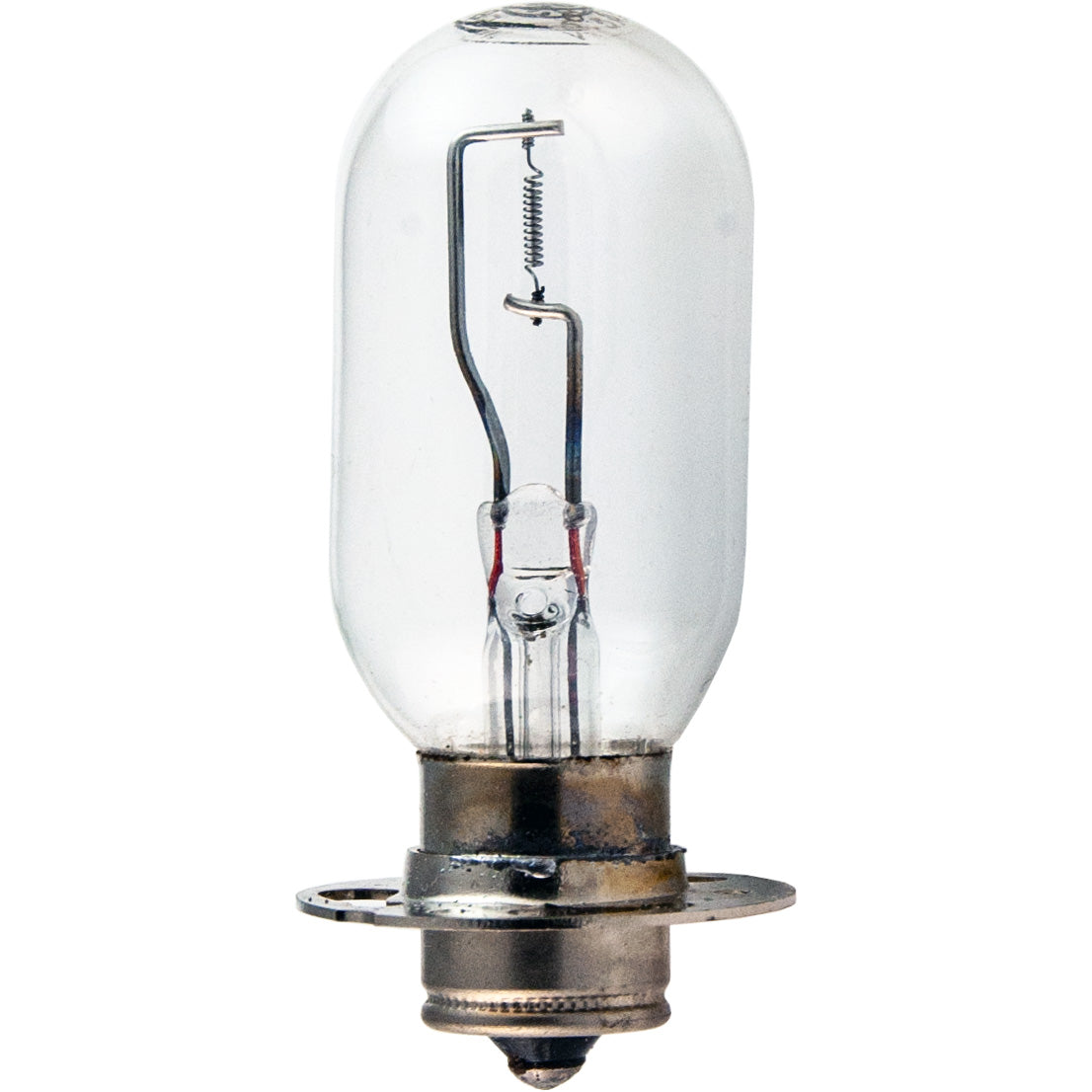

BVK Photograph

BVK

Electrical Specifications

Amps6.5
Volts5
Watts32.5

Photometrics

Candlepower29
Color Temperature2950
Light Center Length (LCL)1 5/8
Lumens350

Physical Characteristics

BaseP15s30A
Bulb ShapeT8
FilamentC-8
FinishClear
Max Overall Length (MOL)2 5/8

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeBVK
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
EikoBVKBVK (WIKO)

Equipment Used In

BrandModelType
Kalart Victor Moviematic 90-25
Kalart Victor Moviematic 75-15-MP
Kalart Victor Moviematic Classmate 4
Kalart Victor Moviematic 70-15
Kalart Victor Moviematic 70-15-MC-3
Kalart Victor Moviematic 70-1600
Kalart Victor Moviematic 1600
Kalart Victor Moviematic 75-15
Kalart Victor Moviematic 75-15-MC-3
Kalart Victor Moviematic Sovereign 25
Kalart Victor Moviematic 70-25-MC-3
Kalart Victor Moviematic 90-25-TV
Kalart Victor Moviematic 90-25-MC-3
Kalart Victor Moviematic 70-15-RP
Kalart Victor Moviematic 75-25
Kalart Victor Moviematic 65-10
Kalart Victor Moviematic 70-25-RP
Kalart Victor Moviematic 70-25
Kalart Victor Moviematic 75-15-RP
Kalart Victor Moviematic 75-25-MC-3
Kalart Victor Moviematic 70-15-MP
Kalart Victor Moviematic 90-25-MPR
Kalart Victor Moviematic 75-25-RP
Kalart Victor Moviematic 65-25
Kalart Victor Moviematic 90-25-PA
Kalart Victor Moviematic 90-12
Kalart Victor Moviematic 75-25-MP
Kalart Victor Moviematic 65-4
Kalart Victor Moviematic 90-25-MP
Kalart Victor Moviematic Assembly 10
SOS Photo Cine Optics Acmade Pic-Sync Viewer/Editing
Victor Animatograph 55
Victor Animatograph 60-25
Victor Animatograph 41-B (serials over 63929)
Victor Animatograph 65-55
Victor Animatograph 60-4
Victor Animatograph 65-4
Victor Animatograph 1600 Arc
Victor Animatograph 65-10
Victor Animatograph EE-ARC
Victor Animatograph 41-C
Victor Animatograph 56
Victor Animatograph 60 Triumph
Victor Animatograph 40-B
Victor Animatograph 40-A 16mm Movie Projector
Victor Animatograph 60-10
Victor Animatograph 40-C
Victor Animatograph Envoy
Victor Animatograph 60-2
Victor Animatograph Lite-Weight
Victor Animatograph 41-A (serials over 64055)

BVK may also be listed as:
30419 GENERAL-ELECTRIC5V-6.5A-T8-SCPF-C8 FUJI-OPTICAL-SYSTEMS5V-6.5A-T8.SC.PF-C-8 FUJI-OPTICAL-SYSTEMS6.5A/T8/1SCP GENERAL-ELECTRIC
6.5AMP-T8-1-P15S30 WESTINGHOUSE6.5AMP-T8-1-P15S30-5VOLT WESTINGHOUSEBVK ANSIBVK ASA
BVK GENERAL-ELECTRICBVK HIDSIBVK LAMPTECHBVK WESTINGHOUSE
BVK-5V ANSIBVK-5V ASABVK-5V-32.5W ANSIBVK-5V-32.5W ASA
BVK-5V-6.5ABVK-5V-6.5A ANSIBVK-5V-6.5A-P30S-T8-C8-CLEAR-350L-50H-BDTH-2-5/8MOL-1-5/8LCL-I-SOUND-REPRODUCTION-EXCITERBVK-5V/5V/32.5W/P15S30A ANSI
BVK-5VOLT ANSIBVK-5VOLT ASABVK-BVS ANSIBVK-BVS ASA
BVK/5V GENERAL-ELECTRICBVK/5V/32.5W/P15S30A ANSIBVK/5V/6.5A/P15S30A ANSIBVK/BVS GENERAL-ELECTRIC
BVK/BVS LITE-SOURCEBVK/BVS-GE-5V/6.5A-SINGLE-CONTACT-PREFOCUS-BULB LITE-SOURCEBVK/BVS/5V GENERAL-ELECTRICBVK/BVS/5V/6.5A/SINGLE-CONTACT-PREFOCUS
BVK/T8-5V-6.5A-SC-PRFCS LAMPTECHBW-BVK-BVSI/5V/32.5W/P15S30/T8/AX/39MMLCL/50H/63MMMOLI/5V/32.5W/P15S30/T8/AX/39MMLCL/63MMMOL
I/5V/32.5W/P15S30/T8/AX/39MMLCL/HO/63MMMOLI/5V/32.5W/P15S30/T8/AX/50HI/5V/32.5W/P15S30/T8/AX/50H/BVKI/5V/32.5W/P15S30/T8/AX/BVK
I/5V/32.5W/P15S30/T8/C8/39MMLCL/63MMMOLI/5V/32.5W/P15S30/T8/C8/39MMLCL/63MMMOL/50HI/5V/32.5W/P15S30/T8/C8/39MMLCL/HO/63MMMOLI/5V/32.5W/P15S30/T8/C8/50H
I/5V/32.5W/P15S30/T8/C8/50H/BVKI/5V/32.5W/P15S30/T8/C8/BVKI/5V/32.5W/P15S30A/T8/AX/50HI/5V/32.5W/P15S30A/T8/AX/50H/BVK
I/5V/32.5W/P15S30A/T8/AX/BVKI/5V/32.5W/P15S30A/T8/C8/50H/BVKI/5V/32.5W/P15S30A/T8/C8/BVKI/5V/32.5W/P15S30A/T8/CL/50H/BVK
I/5V/6.5A/P15S30/T8/AX/39MMLCL/63MMMOLI/5V/6.5A/P15S30/T8/AX/39MMLCL/63MMMOL/50HI/5V/6.5A/P15S30/T8/AX/39MMLCL/HO/63MMMOLI/5V/6.5A/P15S30/T8/C8/39MMLCL/63MMMOL
I/5V/6.5A/P15S30/T8/C8/39MMLCL/63MMMOL/50HI/5V/6.5A/P15S30/T8/C8/39MMLCL/HO/63MMMOLPH-6.5AMP-T8-1-P15S30 WESTINGHOUSEPH-6.5AMP-T8-1-P15S30-5VOLT WESTINGHOUSE
PH/6.5A/T8/1SCP GENERAL-ELECTRICSP32.5T8P15S30AC85V-BVKSP32.5T8P15S30ACL5V-BVKSP32.5T8SCPAC85V-BVK
SP32.5T8SCPACL5V-BVKSP32.5T8SCPAX5VSP32.5T8SCPAX5V-BVKSP32.5T8SCPAX5V-SHORT
SP32.5T8SCPC8-5VSP32.5T8SCPC8-5V-SHORTSP32.5T8SCPC85V-BVKSP32.5T8SCPCL5V-BVK
