BVL ANSI Code
BVL ANSI is a T5 lamp with a P15s30A base operating at 6 watts and 6 volts. It has a Clear finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVL lamps.

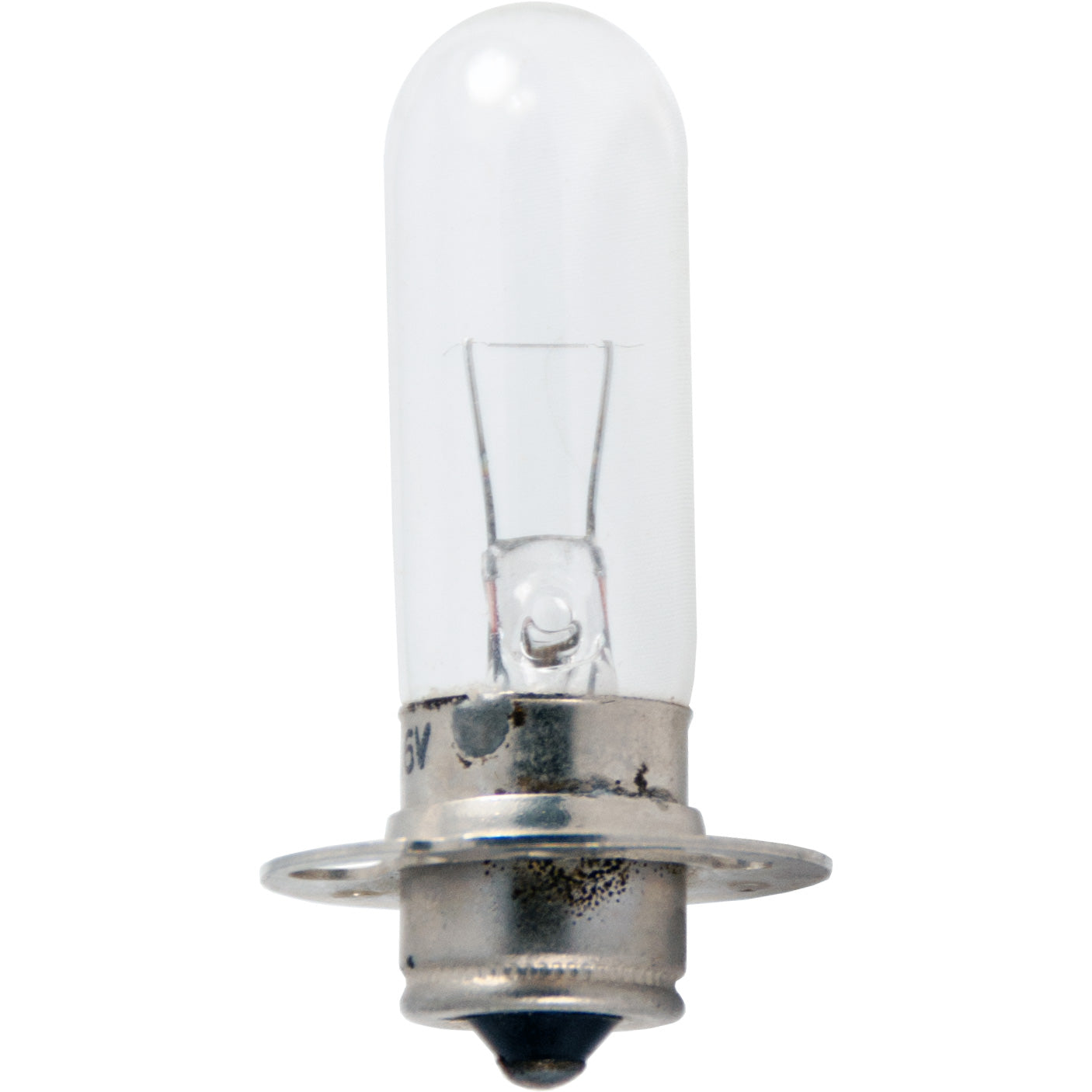

BVL Photograph |
 |
Electrical Specifications | |
| Amps | 1 |
|---|---|
| Volts | 6 |
| Watts | 6 |
Photometrics | |
| Candlepower | 6.8 |
|---|---|
| Light Center Length (LCL) | 1 1/8 |
| Lumens | 85 |
Physical Characteristics | |
| Base | P15s30A |
|---|---|
| Bulb Shape | T5 |
| Filament | C-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 400 |
General Information | |
| Lamp Code | BVL |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
P15s30A Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | BVL | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Chevron Supermatic 30 | |
| Eastman Kodak | 16mm Model 30 | |
| Eastman Kodak | Television CM350 | |
| Eastman Kodak | 250E | |
| Eastman Kodak | Television 300 | |
| Eastman Kodak | Pageant 126-TR | |
| Eastman Kodak | Eastman 25-C | |
| Eastman Kodak | Television 250 | |
| Eastman Kodak | 120M | |
| Eastman Kodak | AV-12-M-6 | |
| Eastman Kodak | 25-B | |
| Eastman Kodak | AV-12-M-6-L | |
| Eastman Kodak | 256TR | |
| Eastman Kodak | 12M6 | |
| Eastman Kodak | Pageant 256-TR | |
| Eastman Kodak | 250S | |
| Eastman Kodak | Television | |
| Eastman Kodak | AV-12-M-6-K | |
| Eastman Kodak | 250A | |
| Eastman Kodak | Television 275 | |
| Eastman Kodak | 16mm Model 40 | |
| Eastman Kodak | Kodascope Eight 25 | |
| Eastman Kodak | Eastman 40 | |
| Eastman Kodak | Pageant AV-12E6 | |
| Eastman Kodak | AV-12-E-6 | |
| Eastman Kodak | Television 285 | |
| Eastman Kodak | Analyst | |
| Eastman Kodak | 16mm Model 25B | |
| Eastman Kodak | 16mm Model 25 | |
| Eastman Kodak | Supermatic 30 | |
BVL may also be listed as: | |||
| 39714 GENERAL-ELECTRIC | BVL ANSI | BVL ASA | BVL INTERLIGHT |
| BVL-6V ANSI | BVL-6V ASA | BVL-6V-1A | BVL-6V-1A ANSI |
| BVL-6V-1A-P30S-T5-C6-CLEAR-85L-400H-ANY-2-3/8MOL-1-1/8LCL-I-SOUND-REPRODUCTION-EXCITER | BVL-6V-6W ANSI | BVL-6V-6W ASA | BVL-6V/6V/6W/P15S30A ANSI |
| BVL-6VOLT ANSI | BVL-6VOLT ASA | BVL/6V GENERAL-ELECTRIC | BVL/6V/1A/P15S30A ANSI |
| BVL/6V/6W/P15S30A ANSI | I/6V/6W/P15S30/T5/C6/400H | I/6V/6W/P15S30/T5/C6/400H/BVL | I/6V/6W/P15S30/T5/C6/BVL |
| I/6V/6W/P15S30/T5/CL/400H | I/6V/6W/P15S30/T5/CL/400H/BVL | I/6V/6W/P15S30/T5/CL/BVL | I/6V/6W/P15S30A/T5/C6/400H |
| I/6V/6W/P15S30A/T5/C6/400H/BVL | I/6V/6W/P15S30A/T5/C6/BVL | I/6V/6W/P15S30A/T5/CL/400H | I/6V/6W/P15S30A/T5/CL/400H/BVL |
| I/6V/6W/P15S30A/T5/CL/BVL | SP6T5P15S30AC66V-BVL | SP6T5P15S30ACL6V-BVL | SP6T5SCPAC66V-BVL |
| SP6T5SCPACL6V-BVL | SP6T5SCPC6-6V-400H | SP6T5SCPC66V-BVL | SP6T5SCPCL6V-400H |
| SP6T5SCPCL6V-BVL | |||
