BVS ANSI Code

BVS ANSI is a T8 lamp with a P15s30A base operating at 32.5 watts and 5 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVS lamps.

Electrical Specifications

Amps6.5
Volts5
Watts32.5

Photometrics

Candlepower44
Color Temperature2950
Light Center Length (LCL)1 5/8
Lumens350

Physical Characteristics

BaseP15s30A
Bulb ShapeT8
FilamentC-8
FinishClear
Max Overall Length (MOL)2 3/8

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeBVS
Code TypeANSI

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

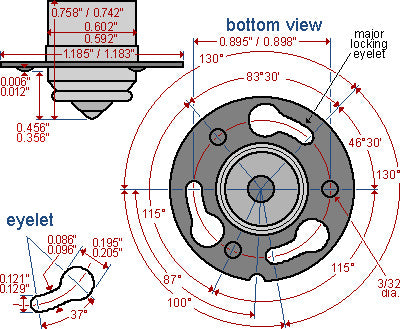

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites05-033-69
Canimpex05-033-69

Equipment Used In

BrandModelType
Kalart Victor MP
Kalart Victor 70-15-MC-3
Kalart Victor Moviematic 90-25
Kalart Victor Moviematic 75-15-MP
Kalart Victor 90-25-MC-3
Kalart Victor Moviematic Classmate 4
Kalart Victor Moviematic 70-15
Kalart Victor 75-15-MC-3
Kalart Victor Moviematic 70-15-MC-3
Kalart Victor Moviematic 70-1600
Kalart Victor Moviematic 1600
Kalart Victor Moviematic 75-15
Kalart Victor Moviematic 75-15-MC-3
Kalart Victor Moviematic Sovereign 25
Kalart Victor Moviematic 70-25-MC-3
Kalart Victor Moviematic 90-25-TV
Kalart Victor Moviematic 90-25-MC-3
Kalart Victor Sovereign 25
Kalart Victor Moviematic 70-15-RP
Kalart Victor Moviematic 75-25
Kalart Victor 75-25-MC-3
Kalart Victor 70-MP
Kalart Victor Moviematic 65-10
Kalart Victor 70-160
Kalart Victor Moviematic 70-25-RP
Kalart Victor 90-25-MPR
Kalart Victor Moviematic 70-25
Kalart Victor 75-25-RP
Kalart Victor Moviematic 75-15-RP
Kalart Victor Moviematic 75-25-MC-3
Kalart Victor Moviematic 70-15-MP
Kalart Victor 90-25-PA
Kalart Victor 70-RP
Kalart Victor Moviematic 90-25-MPR
Kalart Victor 70-25-RP
Kalart Victor 70-15-MP
Kalart Victor 70-25-MC-3
Kalart Victor Moviematic 75-25-RP
Kalart Victor Moviematic 65-25
Kalart Victor 90-25-TV
Kalart Victor Moviematic 90-25-PA
Kalart Victor 75-25-MP
Kalart Victor Classmate IV
Kalart Victor 90-25-MP
Kalart Victor 75-15-RP
Kalart Victor 70-15-RP
Kalart Victor Moviematic 90-12
Kalart Victor Moviematic 75-25-MP
Kalart Victor Moviematic 65-4
Kalart Victor Moviematic 90-25-MP
Kalart Victor Moviematic Assembly 10
Kalart Victor 70-25-MP
Kalart Victor 75-15-MP
SOS Photo Cine Optics Pic-Sync Viewer/Editing
SOS Photo Cine Optics Acmade Pic-Sync Viewer/Editing
Victor Animatograph 60-25
Victor Animatograph 41-A (serials over 64056)
Victor Animatograph 70-15
Victor Animatograph 41-B (serials over 63929)
Victor Animatograph 70-0-MP
Victor Animatograph 65-55
Victor Animatograph 60-4
Victor Animatograph 65-4
Victor Animatograph MP
Victor Animatograph 1600 Arc
Victor Animatograph 65-10
Victor Animatograph 56 Envoy
Victor Animatograph EE-ARC
Victor Animatograph 41-C
Victor Animatograph 65-25
Victor Animatograph 70-15-MP
Victor Animatograph 70-25
Victor Animatograph 55 Lite-Weight
Victor Animatograph 65-0
Victor Animatograph 60 Triumph
Victor Animatograph 70-25-MP
Victor Animatograph 40-A (serials over 64056)
Victor Animatograph 40-B
Victor Animatograph 40-B (serials over 63930)
Victor Animatograph 60-11
Victor Animatograph 40-A 16mm Movie Projector
Victor Animatograph 40-C
Victor Animatograph 70-0
Victor Animatograph 60-10
Victor Animatograph 41-B (serials over 63930)
Victor Animatograph Envoy
Victor Animatograph 60-2
Victor Animatograph 41-A (serials over 64055)

BVS may also be listed as:
00490 WIKO031293004901 EIKO1000090 USHIO3129300490 WIKO
5V/32.5W/G23-5V-32.5W LIF6-1/2AT8P15S WESTINGHOUSE6-1/2AT8P15S5 WESTINGHOUSE6-1/2AT8P15S5V WESTINGHOUSE
6-1/2AT8P15SC56-1/2AT8P15SC5V6-1/2AT8P15SCL56-1/2AT8P15SCL5V
6-1/2AT8P30S WESTINGHOUSE6-1/2AT8P30S5 WESTINGHOUSE6-1/2AT8P30S5V WESTINGHOUSE6-1/2AT8P30SC5
6-1/2AT8P30SC5V6-1/2AT8P30SCL56-1/2AT8P30SCL5V6-1/2AT8SCP WESTINGHOUSE
6-1/2AT8SCP5 WESTINGHOUSE6-1/2AT8SCP5V WESTINGHOUSE6-1/2AT8SCPC56-1/2AT8SCPC5V
6-1/2AT8SCPCL56-1/2AT8SCPCL5V6.5A-T8-P15S WESTINGHOUSE6.5A-T8-P15S-5 WESTINGHOUSE
6.5A-T8-P15S-5V WESTINGHOUSE6.5A-T8-P15S-C-56.5A-T8-P15S-C-5V6.5A-T8-P15S-CL-5
6.5A-T8-P15S-CL-5V6.5A-T8-P30S WESTINGHOUSE6.5A-T8-P30S-5 WESTINGHOUSE6.5A-T8-P30S-5V WESTINGHOUSE
6.5A-T8-P30S-C-56.5A-T8-P30S-C-5V6.5A-T8-P30S-CL-56.5A-T8-P30S-CL-5V
6.5A-T8-SCP WESTINGHOUSE6.5A-T8-SCP-5 WESTINGHOUSE6.5A-T8-SCP-5V WESTINGHOUSE6.5A-T8-SCP-C-5
6.5A-T8-SCP-C-5V6.5A-T8-SCP-CL-56.5A-T8-SCP-CL-5V6.5AMP-T8-P15S30 WESTINGHOUSE
6.5AMP-T8-P15S30-5VOLT WESTINGHOUSE6.5AMP-T8-P15S30-CLEAR-5VOLT7255-C PHILIPSBVS ANSI
BVS ASABVS GENERAL-ELECTRICBVS INTERLIGHTBVS MAZDA
BVS USHIOBVS WESTINGHOUSEBVS WIKOBVS-5 ANSI
BVS-5 ASABVS-5V ANSIBVS-5V ASABVS-5V-32.5W ANSI
BVS-5V-32.5W ASABVS-5V-6.5ABVS-5V-6.5A ANSIBVS-5V-6.5A-P30S-T8-C8-CLEAR-350L-50H-BDTH-2-3/8MOL-1-5/8LCL-I-SOUND-REPRODUCTION-EXCITER
BVS-5V/5V/32.5W/P15S30A ANSIBVS-5VOLT ANSIBVS-5VOLT ASABVS-BVK ANSI
BVS-BVK ASABVS-BVK EIKOBVS-BVK WIKOBVS/5V/32.5W/P15S30A ANSI
BVS/BVK INTERLIGHTEL5-5V-32.5W-P15S30 LIFEL5-5V-6.5AEL5-5V-6.5A ATLAS
EL5-5V-6.5A LIFEL5-5V-6.5A THORNEL5-5V-6.5A-P30S-T25-C6-CLEAR-747.5L-100H-VBD25-78MMMOL-44MMLCL-I-EXCITER-LAMP-FOR-SOUND-REPRODUCTIONEQ-G/23 ELECTROQUIP
G-.23G-0.23G-23 THORNG/23 ATLAS
G/23 LIFG/23-5V-6.5A-P30S-T25-C8-CLEAR-700L-50H-HOR120-78MMMOL-41MMLCL-PLUS-MINUS-0.5MM-IG23-5V-32.5W LIFG23-5V-6.5A
G23-5V-6.5A ATLASG23-5V-6.5A LIFG23-5V-6.5A THORNGP-11970
I/5V/32.5W/G23-5V-32.5W LIFI/5V/32.5W/P15S30/T8/AX/100HI/5V/32.5W/P15S30/T8/AX/100H/BVSI/5V/32.5W/P15S30/T8/AX/BVS
I/5V/32.5W/P15S30/T8/C6/100HI/5V/32.5W/P15S30/T8/C6/100H/EL5-5V-32.5W-P15S30 LIFI/5V/32.5W/P15S30/T8/C8/100HI/5V/32.5W/P15S30/T8/C8/100H/BVS
I/5V/32.5W/P15S30/T8/C8/42MMLCL/100H/7255C PHILIPSI/5V/32.5W/P15S30/T8/C8/42MMLCL/700L/76MMMOL/100H/7255C PHILIPSI/5V/32.5W/P15S30/T8/C8/BVSI/5V/32.5W/P15S30/T8/CL/100H
I/5V/32.5W/P15S30/T8/CL/100H/EL5-5V-32.5W-P15S30 LIFI/5V/32.5W/P15S30A/T8/AX/100HI/5V/32.5W/P15S30A/T8/AX/100H/BVSI/5V/32.5W/P15S30A/T8/AX/BVS
I/5V/32.5W/P15S30A/T8/C8/100HI/5V/32.5W/P15S30A/T8/C8/100H/BVSI/5V/32.5W/P15S30A/T8/C8/50H/BVSI/5V/32.5W/P15S30A/T8/C8/BVS
I/5V/32.5W/P15S30A/T8/CL/50H/BVSI/5V/6.5A/P15S/T26MM/C8/42MMLCL/700L/76MMMOL/100H/7255C PHILIPSKE-116 KONDOP30S-5V-6.5A-SOUND-EXCITER-PROJECTION ELECTROQUIP
PH-6.5A-T8-P15S WESTINGHOUSEPH-6.5A-T8-P15S-5 WESTINGHOUSEPH-6.5A-T8-P15S-5V WESTINGHOUSEPH-6.5A-T8-P30S WESTINGHOUSE
PH-6.5A-T8-P30S-5 WESTINGHOUSEPH-6.5A-T8-P30S-5V WESTINGHOUSEPH-6.5A-T8-SCP WESTINGHOUSEPH-6.5A-T8-SCP-5 WESTINGHOUSE
PH-6.5A-T8-SCP-5V WESTINGHOUSEPH-6.5AMP-T8-P15S30 WESTINGHOUSEPH-6.5AMP-T8-P15S30-5VOLT WESTINGHOUSEPH6-1/2AT8P15S WESTINGHOUSE
PH6-1/2AT8P15S5 WESTINGHOUSEPH6-1/2AT8P15S5V WESTINGHOUSEPH6-1/2AT8P30S WESTINGHOUSEPH6-1/2AT8P30S5 WESTINGHOUSE
PH6-1/2AT8P30S5V WESTINGHOUSEPH6-1/2AT8SCP WESTINGHOUSEPH6-1/2AT8SCP5 WESTINGHOUSEPH6-1/2AT8SCP5V WESTINGHOUSE
PROJECTION/5V/6.5A/P30S/79X36H ELECTROQUIPSP32.5T8P15S30AC85V-BVSSP32.5T8P15S30ACL5V-BVSSP32.5T8SCPAC85V-BVS
SP32.5T8SCPACL5V-BVSSP32.5T8SCPAX5V-BVSSP32.5T8SCPAX5V-LONGSP32.5T8SCPC8-5V-LONG
SP32.5T8SCPC85V-BVSSP32.5T8SCPCL5V-BVS
