BVT ANSI Code
BVT ANSI is a T7 lamp with a P40s base operating at 1000 watts and 120 volts. It has a color temperature of 3050 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVT lamps.

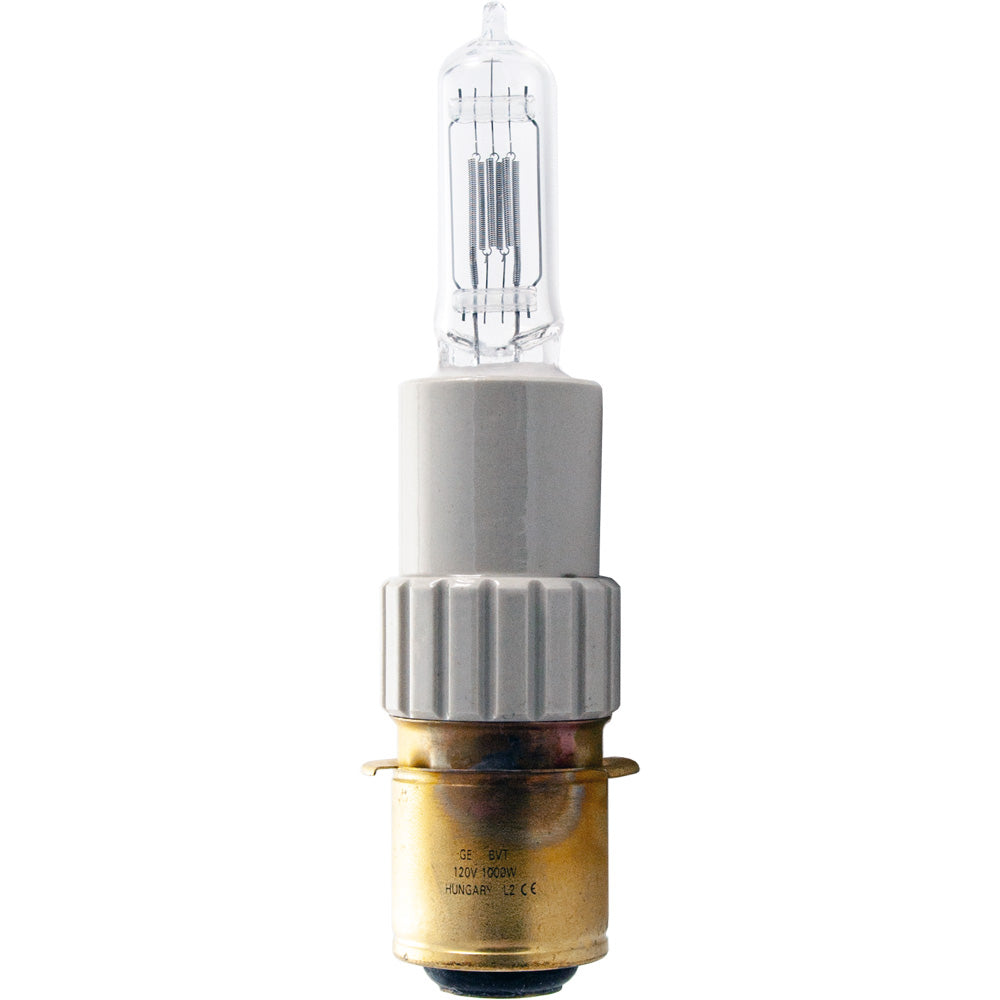

BVT Photograph |
 |
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 120 |
| Watts | 1000 |
Photometrics | |
| Candlepower | 1800 |
|---|---|
| Color Temperature | 3050 |
| Light Center Length (LCL) | 3 15/16 |
| Lumens | 24500 |
Physical Characteristics | |
| Base | P40s |
|---|---|
| Bulb Shape | T7 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 7 1/4 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 500 |
General Information | |
| Lamp Code | BVT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T7 Shape | |
 | |
| Diameter Designation | 7/8" |
|---|---|
| Glass Diameter | 7/8" (0.875") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
P40s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Bulbrite | 762035 | BVT | |
| General Electric | 12554 | BVT-Q1MT7/CL/MP | |
| Grainger | 1E704 | ||
| Osram Sylvania | 54690 | BVT | Available |
| Sunlite | 70012 | BVT | |
| Ushio | 1000091 | BVT, JCS120V-1000WB | Available |
| General Electric | 88608 | BVT-Q1MT7/CL/MP 120V | |
| Microlites | 120-1000-66T | ||
| Canimpex | 120-1000-66T | ||
Equipment Used In | ||
| Brand | Model | Type |
| Altman Lighting | 75Q 8-Fresnel | |
| Altman Lighting | Fresnel 8 Inch | Stage / Studio |
| Altman Lighting | 75 8-FRESNEL | Stage / Studio |
| Altman Lighting | 175 8-Fresnel | Stage / Studio |
| Altman Lighting | 175Q 8-Fresnel | |
| L&E | Fresnel 8 | Stage / Studio |
| Strand Lighting | Fresnalite | Stage / Studio |
| Strand Lighting | 8" Fresnelite | Stage / Studio |
