BVV ANSI Code

BVV ANSI is a T7 lamp with a P40s base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVV lamps.

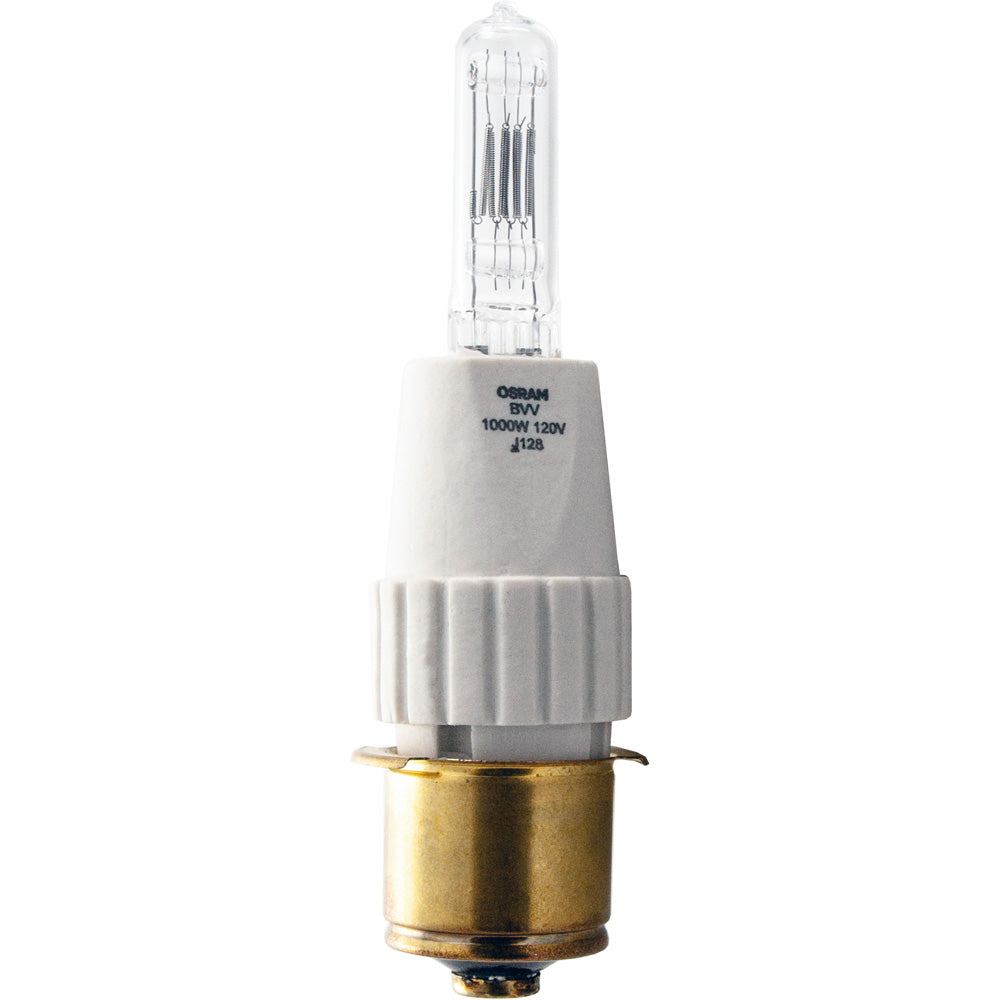

BVV Photograph

BVV

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2200
Color Temperature3200
Light Center Length (LCL)3 15/16
Lumens28500

Physical Characteristics

BaseP40s
Bulb ShapeT7
FilamentC-13D
FinishClear
Max Overall Length (MOL)7 1/4

Operating Characteristics

Burn PositionAny
Life Hours200

General Information
Lamp CodeBVV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T7 Shape

T7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

P40s Base

P40s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762040BVV
General Electric12553BVV-Q1000T7/4CL/MP
Industry CodeQ1000T7/4CL/MP
Osram Sylvania54691BVV
Ushio1000092BVV, JCS120V-1000WC
Norman LampsBVV1000W, 120V
Microlites120-1000-66V
Canimpex120-1000-66V

Equipment Used In

BrandModelType
Altman Lighting 75Q 8-Fresnel
Altman Lighting 75 8-FRESNEL Stage / Studio
Altman Lighting 175 8-Fresnel Stage / Studio
Altman Lighting 175Q 8-Fresnel
L&E Fresnel 8 Stage / Studio
Strand Lighting 3480-1000W Stage / Studio
Strand Lighting Bambino Stage / Studio
