BVW ANSI Code

BVW ANSI is a T11 lamp with a P40s base operating at 2000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 350 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BVW lamps.

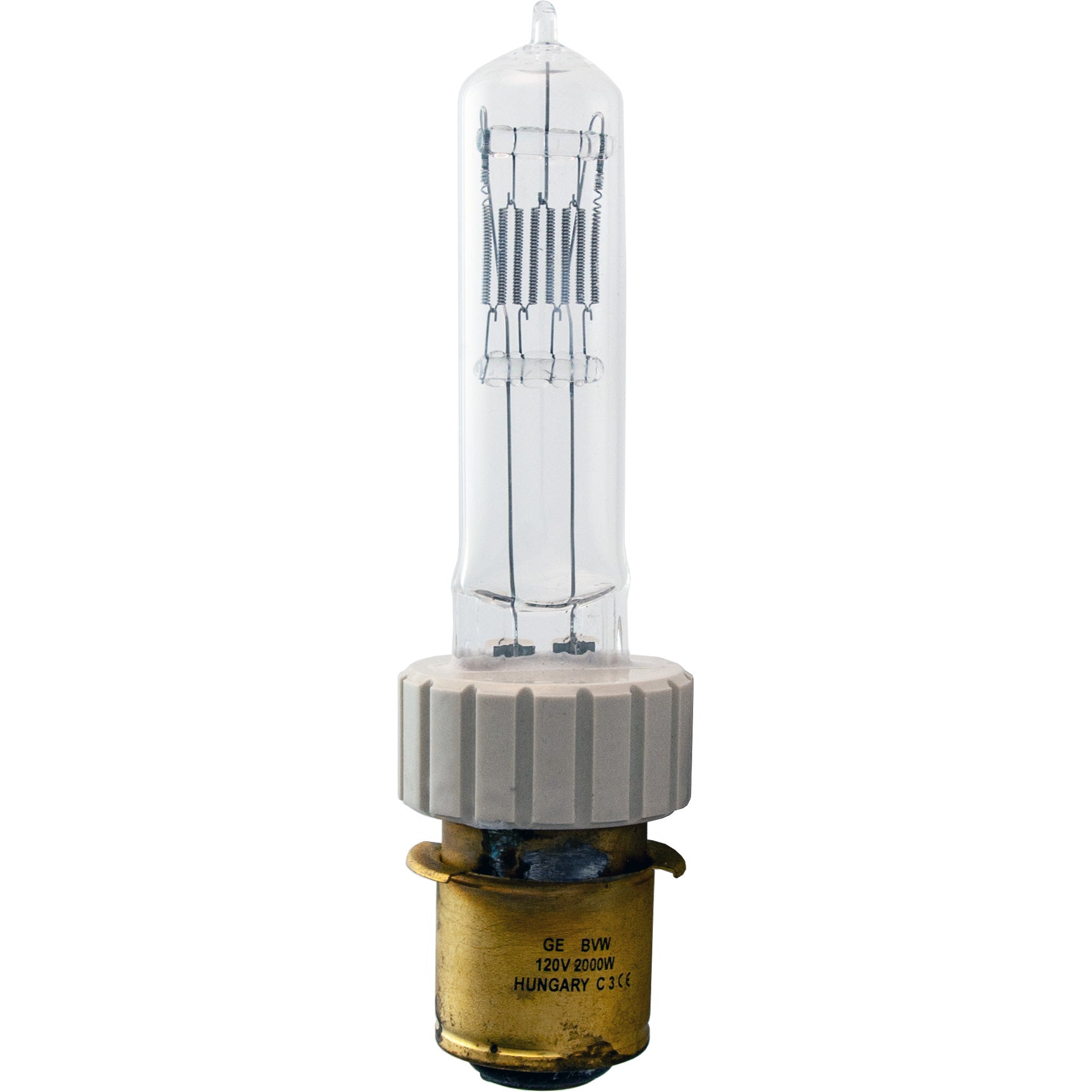

BVW Photograph

BVW

Electrical Specifications

Amps16.7
Volts120
Watts2000

Photometrics

Candlepower4600
Color Temperature3200
Light Center Length (LCL)3 15/16
Lumens59000

Physical Characteristics

BaseP40s
Bulb ShapeT11
FilamentC-13
FinishClear
Max Overall Length (MOL)8

Operating Characteristics

Burn PositionBDTH
Life Hours350

General Information
Lamp CodeBVW
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsCP/53 117V

T11 Shape

T11
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P40s Base

P40s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762045BVW
General Electric12555BVW-Q2000T10/4CL/MP
Osram Sylvania54692BVW
Sunlite70011BVW
Ushio1000093BVW, JCS120V-2000WC
Microlites120-2000-66W
Canimpex120-2000-66W

BVW may also be listed as:
00520 EIKO00520 UPC00520 WIKO031293005205 EIKO
04613554692 SYLVANIA048777106167 UPC1000-BVW1000093 USHIO
1000WATT-BVW1255512555 GENERAL-ELECTRIC2000-Q-4-C-MP
2000-Q-4-C-MP-1202000-Q-4-C-MP-120V2000-Q-4-C-P40S2000-Q-4-C-P40S-120
2000-Q-4-C-P40S-120V2000-Q-4-CL-MP2000-Q-4-CL-MP-1202000-Q-4-CL-MP-120V
2000-Q-4-CL-P40S2000-Q-4-CL-P40S-1202000-Q-4-CL-P40S-120V2000T10 MICROLAMP
2000T10-4CLMO2000T10-4CLMO1202000T10-4CLMO120V2000T10-4CMO
2000T10-4CMO1202000T10-4CMO120V2000T10/4CL/MP MICROLAMP2000T9-1/2-4CLMO
2000T9-1/2-4CLMO1202000T9-1/2-4CLMO120V2000T9-1/2-4CMO2000T9-1/2-4CMO120
2000T9-1/2-4CMO120V2000T9.5-4CLMO2000T9.5-4CLMO1202000T9.5-4CLMO120V
2000T9.5-4CMO2000T9.5-4CMO1202000T9.5-4CMO120V2000T9.5/4CLMO-BVW OSRAM
2000WATT-QUARTZ-4-CLEAR-P40S2000WATT-QUARTZ-4-CLEAR-P40S-120 VOLT2000WATT-T10-4-CLEAR-MO2000WATT-T10-4-CLEAR-MO-120 VOLT
2000WATT-T9.5-4-CLEAR-MO2000WATT-T9.5-4-CLEAR-MO-120 VOLT356254692 OSRAM
54692 SYLVANIA72.02.362 LOHUIS762045 BULBRITE857 PERKO-MARINE
88609 GENERAL-ELECTRICBVW ANSIBVW ASABVW ATLAS
BVW BULB-DIRECTBVW BULBRITEBVW EIKOBVW HIDSI
BVW INTERLIGHTBVW LAMPTECHBVW MICROLAMPBVW OSRAM
BVW SYLVANIABVW THORNBVW USHIOBVW WESTINGHOUSE
BVW WIKOBVW-120 ANSIBVW-120 ASABVW-120 VOLT ANSI
BVW-120 VOLT ASABVW-120V ANSIBVW-120V ASABVW-120V-2000W
BVW-120V-2000W ANSIBVW-120V-2000W ASABVW-120V-2000W-P40S USHIOBVW-120V-2000W-P40S-T10-C13-CLEAR-59000L-3200K-350H-BDTH-8MOL-3-15/16LCL-Q-STTV-FRESNEL-SPOTLIGHT-LOW-NOISE-CONSTRUCTION
BVW-120V/04613554692 SYLVANIABVW-120V/120V/2000W/P40S ANSIBVW-120V/54692 SYLVANIABVW-2000 THORN
BVW-2000W THORNBVW-2000W-120V-P40S USHIOBVW-2000WATT THORNBVW-Q2MT10/4CL/MP-OLD-CODE-12555-2000W-120V-P40S GENERAL-ELECTRIC
BVW-QUARTZ-2000WATT-T10-4-CLEAR-P40S EIKOBVW/120V-2000W-STUDIO LAMPTECHBVW/120V/2000W OSRAMBVW/120V/2000W/P40S ANSI
BVW120VBVWQ2000T10-4CLMP EIKOBVWQ2000T10-4CLP40S EIKOBVWQ2000T10-4CMP EIKO
BVWQ2000T10-4CP40S EIKOBVWQ2000WT10-4CLMP EIKOBVWQ2000WT10-4CLP40S EIKOBVWQ2000WT10-4CMP EIKO
BVWQ2000WT10-4CP40S EIKOBVWQ2MT10/4CL/MP GENERAL-ELECTRICBVWQ2MT10/4CL/MP/120V GENERAL-ELECTRICH/120V/2000W/P40S/T11/C13/200H
H/120V/2000W/P40S/T11/C13/200H/BVWJCS-120 VOLT-2000WATT-C-P40S USHIOJCS-120V-2000-C-MP USHIOJCS-120V-2000-C-P40S USHIO
JCS-120V-2000W-C-MP USHIOJCS/120V/2000W/CP40JCS120-2000CMP USHIOJCS120-2000CP40S USHIO
JCS120-2000WCMP USHIOJCS120-2000WCP40S USHIOJCS120V-2000WC USHIOJCS120V-2000WCP40 USHIO
JCS120V-2000WCP40/BVW USHIOJCS120V-2000WCP40/P40S USHIOJCS120V-2000WCP40/P40S/300H USHIOJCS120V2000WC-C13-300HR USHIO
JCS120V2000WC-C13-300HR/120V/2000W/P40S USHIOJCS120V2000WC-C13-300HR/120V/2000W/P40S/BVW USHIOJCS120V2000WC-C13-300HR/BVW USHIOJCS120V2000WC-P40S USHIO
Q-2000-4-C-MP-120Q-2000-4-C-MP-120VQ-2000-4-C-P40S-120Q-2000-4-C-P40S-120V
Q-2000-4-CL-MP-120Q-2000-4-CL-MP-120VQ-2000-4-CL-P40S-120Q-2000-4-CL-P40S-120V
Q-2000-T10-4-C-MP GENERAL-ELECTRICQ-2000-T10-4-C-MP-120 GENERAL-ELECTRICQ-2000-T10-4-C-MP-120V GENERAL-ELECTRICQ-2000-T10-4-C-P40S GENERAL-ELECTRIC
Q-2000-T10-4-C-P40S-120 GENERAL-ELECTRICQ-2000-T10-4-C-P40S-120V GENERAL-ELECTRICQ-2000-T10-4-CL-MP GENERAL-ELECTRICQ-2000-T10-4-CL-MP-120 GENERAL-ELECTRIC
Q-2000-T10-4-CL-MP-120V GENERAL-ELECTRICQ-2000-T10-4-CL-P40S GENERAL-ELECTRICQ-2000-T10-4-CL-P40S-120 GENERAL-ELECTRICQ-2000-T10-4-CL-P40S-120V GENERAL-ELECTRIC
Q-2000-T10-4-MP-CQ-2000-T10-4-MP-C-120Q-2000-T10-4-MP-C-120VQ-2000-T10-4-MP-CL
Q-2000-T10-4-MP-CL-120Q-2000-T10-4-MP-CL-120VQ-2000-T10-4-P40S-CQ-2000-T10-4-P40S-C-120
Q-2000-T10-4-P40S-C-120VQ-2000-T10-4-P40S-CLQ-2000-T10-4-P40S-CL-120Q-2000-T10-4-P40S-CL-120V
Q-2000-T10-MP-4-C GENERAL-ELECTRICQ-2000-T10-MP-4-CL GENERAL-ELECTRICQ-2000-T10-P40S-4-C GENERAL-ELECTRICQ-2000-T10-P40S-4-CL GENERAL-ELECTRIC
Q-2000W-4-C-MP-120Q-2000W-4-C-MP-120VQ-2000W-4-C-P40S-120Q-2000W-4-C-P40S-120V
Q-2000W-4-CL-MP-120Q-2000W-4-CL-MP-120VQ-2000W-4-CL-P40S-120Q-2000W-4-CL-P40S-120V
Q-2000W-T10-4-C-MP GENERAL-ELECTRICQ-2000W-T10-4-C-MP-120 GENERAL-ELECTRICQ-2000W-T10-4-C-MP-120V GENERAL-ELECTRICQ-2000W-T10-4-C-P40S GENERAL-ELECTRIC
Q-2000W-T10-4-C-P40S-120 GENERAL-ELECTRICQ-2000W-T10-4-C-P40S-120V GENERAL-ELECTRICQ-2000W-T10-4-CL-MP GENERAL-ELECTRICQ-2000W-T10-4-CL-MP-120 GENERAL-ELECTRIC
Q-2000W-T10-4-CL-MP-120V GENERAL-ELECTRICQ-2000W-T10-4-CL-P40S GENERAL-ELECTRICQ-2000W-T10-4-CL-P40S-120 GENERAL-ELECTRICQ-2000W-T10-4-CL-P40S-120V GENERAL-ELECTRIC
Q-2000W-T10-4-MP-CQ-2000W-T10-4-MP-C-120Q-2000W-T10-4-MP-C-120VQ-2000W-T10-4-MP-CL
Q-2000W-T10-4-MP-CL-120Q-2000W-T10-4-MP-CL-120VQ-2000W-T10-4-P40S-CQ-2000W-T10-4-P40S-C-120
Q-2000W-T10-4-P40S-C-120VQ-2000W-T10-4-P40S-CLQ-2000W-T10-4-P40S-CL-120Q-2000W-T10-4-P40S-CL-120V
Q-2000W-T10-MP-4-C GENERAL-ELECTRICQ-2000W-T10-MP-4-CL GENERAL-ELECTRICQ-2000W-T10-P40S-4-C GENERAL-ELECTRICQ-2000W-T10-P40S-4-CL GENERAL-ELECTRIC
QUARTZ-2000WATT-4-CLEAR-P40S-120 VOLTQUARTZ-2000WATT-T10-4-CLEAR-P40S GENERAL-ELECTRICQUARTZ-2000WATT-T10-4-CLEAR-P40S-120 VOLT GENERAL-ELECTRICQUARTZ-2000WATT-T10-4-P40S-CLEAR
QUARTZ-2000WATT-T10-4-P40S-CLEAR-120 VOLTQUARTZ-2000WATT-T10-P40S-4-CLEAR GENERAL-ELECTRICSPQ2000T11P40SC13-120VSPQ2000T11P40SC13120V-BVW
SPQ2000T11P40SCL-120VSPQ2000T11P40SCL120V-BVW
