BWF ANSI Code

BWF ANSI is a T8 lamp with a E39 base operating at 2000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BWF lamps.

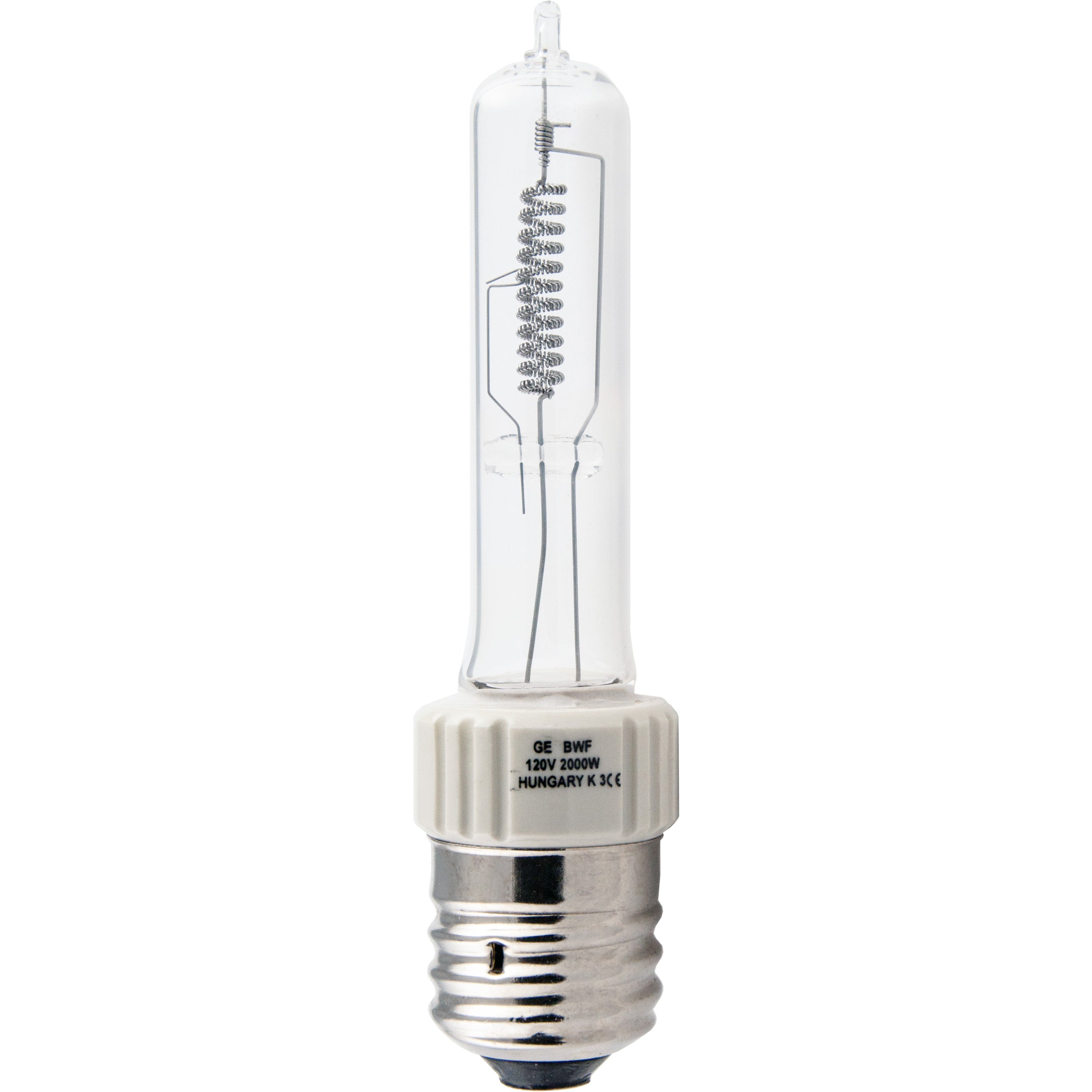

BWF Photograph

BWF

Electrical Specifications

Amps16.7
Volts120
Watts2000

Photometrics

Candlepower4700
Color Temperature3200
Light Center Length (LCL)5 1/4
Lumens59000

Physical Characteristics

BaseE39
Bulb ShapeT8
FilamentCC-8
FinishClear
Max Overall Length (MOL)7 1/2

Operating Characteristics

Burn PositionAny
Life Hours500

General Information
Lamp CodeBWF
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E39 Base

E39

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
General Electric88611BWF-Q2000/4CL 120V
Norman LampsBWF2000W, 120V
Microlites120-2000-49
Canimpex120-2000-49

BWF may also be listed as:
00540 EIKO00540 UPC00540 WIKO031293005403 EIKO
3971048777106303 UPC1000095 BLV1000095 USHIO
11524 STANDARDPRO176-1332000WATT-QUARTZ-4-CLEAR-120 VOLT3530
37086 GENERAL-ELECTRIC471-023 SIMMON-OMEGA6954911524869549115248UPC STANDARDPRO
6994-G PHILIPS6994-G-CP59 PHILIPS6994-G-CP76 PHILIPS6994Y/CP59-LIF-120V PHILIPS
88611 GENERAL-ELECTRIC945505BW-F-Q2000/4CL-120V-OLD-CODE-37086-2000W-120V-E39 GENERAL-ELECTRICBWF ANSI
BWF ASABWF BULB-DIRECTBWF EIKOBWF GENERAL-ELECTRIC
BWF INTERLIGHTBWF LAMPTECHBWF MICROLAMPBWF STANDARDPRO
BWF SYLVANIABWF USHIOBWF WIKOBWF-120 VOLT ANSI
BWF-120 VOLT ASABWF-120V ANSIBWF-120V ASABWF-120V-2000W
BWF-120V-2000W ANSIBWF-120V-2000W ASABWF-120V-2000W-E39 USHIOBWF-120V-2000W-E39-T8-CC8-CLEAR-59000L-3200K-500H-ANY-7-1/2MOL-5-1/4LCL-Q-THEATRE-FRESNELS
BWF-120V-2000W-E39S-T-8-CC-8-CLEAR-59000L-3200K-500H-ANY-7-1/2MOL-5-1/4LCL-Q-THEATRE-FRESNELSBWF-120V/120V/2000W/E39 ANSIBWF-2000W-120V-E39 USHIOBWF-CG2000-4CL-120V GENERAL-ELECTRIC
BWF-JCV120V2000W-T25MM-190.5MMMOL-133.4MMLCL-CC-8-59000L-3200K-500H-CLEAR-1000095 BLVBWF-JCV120V2000W-T25MM-190.5MMMOL-133.4MMLCL-CC-8-59000L-3200K-500H-CLEAR-1000095 USHIOBWF-Q2000/4CL GENERAL-ELECTRICBWF-Q2000/4CL/120V GENERAL-ELECTRIC
BWF-USHIO-1000095-T-8-CL-QUARTZ-2-KW.-E-39-18INCH-SCOOPBWF/120V/2000W/E39 ANSIBWF/2000W-T4-120V-CL LAMPTECHCP-59 ANSI
CP-59 ASACP-59 PHILIPSCP-76 PHILIPSCP/59 LIF
CP/59 MICROLAMPCP/59-120V-2000W-E40-T28-CC8-CLEAR-50000L-300H-ANY-190MMMOL-133MMLCL-PLUS-MINUS-2MM-Q-59000LM-FOR-LV-LAMPCP/59-120V-2000W-E40S-T-28-CC-8-CLEAR-50000L-300H-ANY-190MMMOL-133MMLCL-PLUS-MINUS-2MM-Q-59000LM-FOR-LV-LAMPCP59-120V ANSI
CP59-120V ASACP59-120V LIFCP59-120V MICROLAMPCP59-120V PHILIPS
CP59-120V-2000WCP59-120V-2000W ATLASCP59-120V-2000W LIFCP59-120V-2000W THORN
CP59-120V-2000W-E39 LIFCP59-120V-2000W-E40 LIFCP59/6994Y-CP/76-PHILIPS-120V LIFCP59/6994Y-PHILIPS-120V LIF
E39-120V-2000W-BWF-JCV120V-2000W-T25MM-190.5MMMOL-133.4MMLCL-CC-8-59000L-3200K-500H-CLEAR-1000095 BLVE39-120V-2000W-BWF-JCV120V-2000W-T25MM-190.5MMMOL-133.4MMLCL-CC-8-59000L-3200K-500H-CLEAR-1000095 USHIOH/120V/2000W/E39/T8/AX/300H/CP59-120V-2000W-E39 LIFH/120V/2000W/E39/T8/AX/500H
H/120V/2000W/E39/T8/AX/500H/HX162-120V-2000W-E39 LIFH/120V/2000W/E39/T8/CC8/500HH/120V/2000W/E39/T8/CC8/500H/BWFH/120V/2000W/E39/T8/CC8/500H/HX162-120V-2000W-E39 LIF
H/120V/2000W/E40/T8/AX/500H/HX162-120V-2000W-E40 LIFH/120V/2000W/E40/T8/CC8/500H/HX162-120V-2000W-E40 LIFH/120V/2000W/E40/T9/AX/300HH/120V/2000W/E40/T9/AX/300H/CP59-120V-2000W-E40 LIF
H/120V/2000W/E40/T9/AX/300H/HX28-120V-2000W-E40 LIFH/120V/2000W/E40/T9/CC8/300HH/120V/2000W/E40/T9/CC8/300H/CP59-120V-2000W-E40 LIFH/120V/2000W/E40/T9/CC8/300H/HX28-120V-2000W-E40 LIF
HX/162-120V-2000W-E39-T26-CC8-CLEAR-56000L-3200K-BDTH-222MMMOL-128MMLCL-Q-SCOOPSHX/162-120V-2000W-E39S-T-26-CC-8-CLEAR-56000L-3200K-BDTH-222MMMOL-128MMLCL-Q-SCOOPSHX/162-120V-2000W-E40-T26-CC8-CLEAR-56000L-3200K-BDTH-222MMMOL-128MMLCL-Q-SCOOPSHX/162-120V-2000W-E40S-T-26-CC-8-CLEAR-56000L-3200K-BDTH-222MMMOL-128MMLCL-Q-SCOOPS
HX/28-120V-2000W-E40-T28-CC8-CLEAR-59000L/50000L-3200K-300H-ANY-190MMMOL-133MMLCL-PLUS-MINUS-2MM-Q-59000LM-FOR-LV-LAMPHX/28-120V-2000W-E40S-T-28-CC-8-CLEAR-59000L/50000L-3200K-300H-ANY-190MMMOL-133MMLCL-PLUS-MINUS-2MM-Q-59000LM-FOR-LV-LAMPHX162-120V-2000WHX162-120V-2000W ATLAS
HX162-120V-2000W LIFHX162-120V-2000W THORNHX162-120V-2000W-E39 LIFHX162-120V-2000W-E40 LIF
HX28-120V-2000WHX28-120V-2000W ATLASHX28-120V-2000W LIFHX28-120V-2000W THORN
HX28-120V-2000W-E40 LIFJCV120V-2000W USHIOJCV120V-2000W/AX/500H USHIOJCV120V-2000W/BWF USHIO
JCV120V2000W-AX USHIOJCV120V2000W-CC8 USHIOJCV120V2000W-CC8-500HR USHIOJCV120V2000W-CC8-500HR/120V/2000W/E39 USHIO
JCV120V2000W-CC8-500HR/120V/2000W/E39/BWF USHIOJCV120V2000W-CC8-500HR/BWF USHIOJCV120V2000W-E39 USHIOJCV120V2000W-E39-AX USHIO
JCV120V2000W-E39-CC8 USHIOQ2000 MICROLAMPQ2000/4CL MICROLAMPQUARTZ-2000WATT-4-CLEAR
QUARTZ-2000WATT-4-CLEAR-120 VOLTSPQ2000T8E39AX-120VSPQ2000T8E39AX120V-BWFSPQ2000T8E39CC8-120V
SPQ2000T8E39CC8120V-BWFSPQ2000T8MOGAX-120VSPQ2000T8MOGAX120V-BWFSPQ2000T8MOGCC8-120V
SPQ2000T8MOGCC8120V-BWF
