BWG ANSI Code

BWG ANSI is a T8 lamp with a E39 base operating at 2000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Ext. frosted finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BWG lamps.

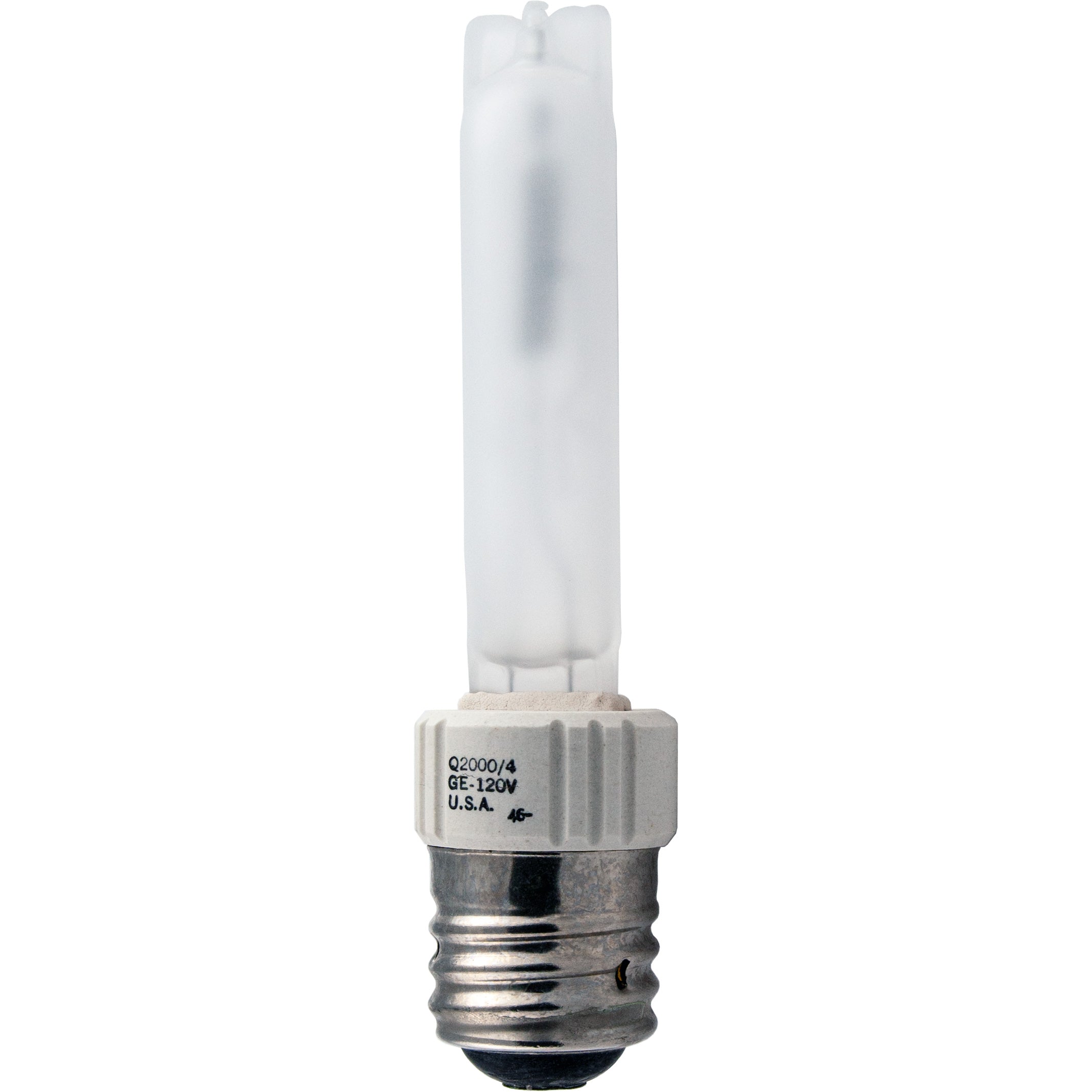

BWG Photograph

BWG

Electrical Specifications

Amps16.7
Volts120
Watts2000

Photometrics

Candlepower4600
Color Temperature3200
Light Center Length (LCL)5 1/4
Lumens57200

Physical Characteristics

BaseE39
Bulb ShapeT8
FilamentCC-8
FinishExt. frosted
Max Overall Length (MOL)7 1/2

Operating Characteristics

Burn PositionAny
Life Hours500

General Information
Lamp CodeBWG
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E39 Base

E39

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsBWG2000W, 120V
Microlites120-2000-54F
Canimpex120-2000-54F
