BWM ANSI Code

BWM ANSI is a T7 lamp with a G9.5 base operating at 750 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BWM lamps.

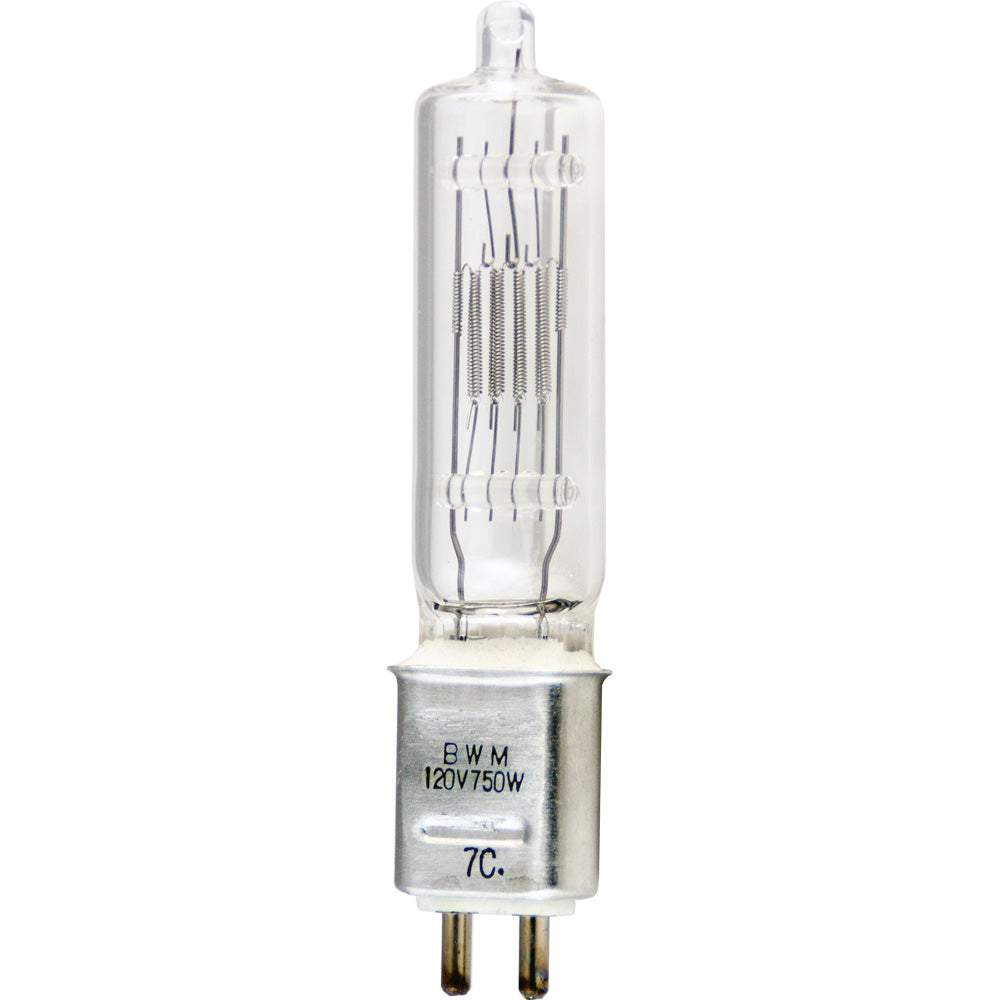

BWM Photograph

BWM

Electrical Specifications

Amps6.25
Volts120
Watts750

Photometrics

Candlepower1700
Color Temperature3200
Light Center Length (LCL)2 3/8
Lumens21000

Physical Characteristics

BaseG9.5
Bulb ShapeT7
FilamentC-13D
FinishClear
Max Overall Length (MOL)4 1/2

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours200

General Information
Lamp CodeBWM
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T7 Shape

T7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-750-28
Microlites120-750-75M
Canimpex120-750-28
Canimpex120-750-75M

Equipment Used In

BrandModelType
Henke Sass Wolf 5120 Endoscopy
