BXA ANSI Code

BXA ANSI is a T8 lamp with a P15s30A base operating at 75 watts and 10 volts. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BXA lamps.

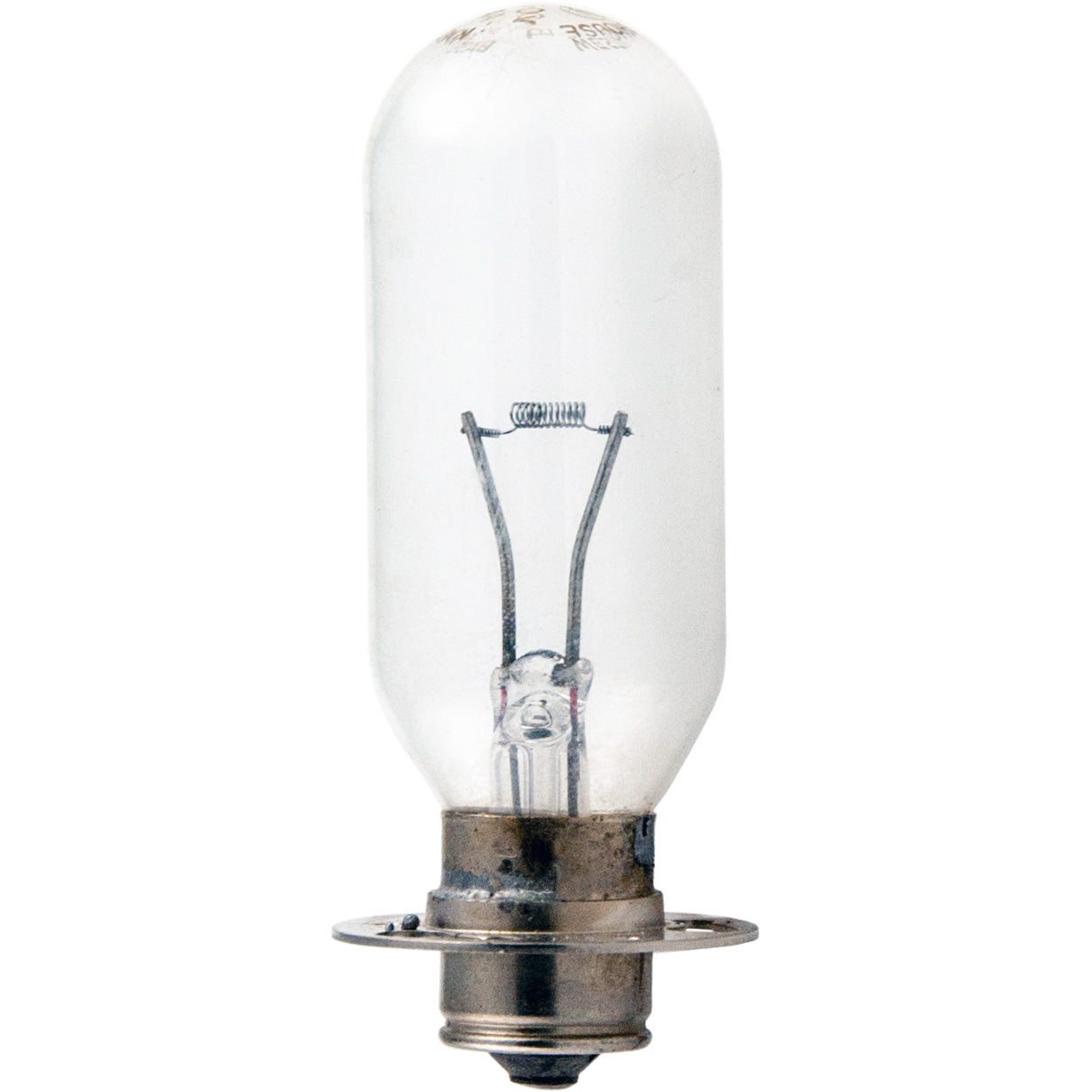

BXA Photograph

BXA

Electrical Specifications

Amps7.5
Volts10
Watts75

Photometrics

Candlepower110
Light Center Length (LCL)1 5/8
Lumens1430

Physical Characteristics

BaseP15s30A
Bulb ShapeT8
FilamentC-6
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours100

General Information
Lamp CodeBXA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

C-6 Filament

C-6
Coil TypeC - Single Coil

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites10-075-64
Canimpex10-075-64

Equipment Used In

BrandModelType
AO Reichert Reader 16mm
Projectograph Deluxe 1850W
Projectograph Deluxe 1875
Projectograph Deluxe 1775
Projectograph Deluxe 1750
Projectograph Deluxe 1650

BXA may also be listed as:
233206056-C PHILIPS6056C/10V/75W PHILIPS7.5A/T8/P15S30/CL/10V
7.5A/T8SCP GENERAL-ELECTRIC7.5A/T8SCP/10V GENERAL-ELECTRIC7.5A/T8SCP10V7.5AMP-T8-P15S30 WESTINGHOUSE
7.5AMP-T8-P15S30-10VOLT WESTINGHOUSE7.5AMP-T8-P15S30-CLEAR-10VOLT7.5AMP-T8-SSCP-10VOLTBXA ANSI
BXA ASABXA INTERLIGHTBXA MICROLAMPBXA WESTINGHOUSE
BXA-10V ANSIBXA-10V ASABXA-10V-7.5ABXA-10V-7.5A ANSI
BXA-10V-7.5A-P30S-T-8-C-6-CLEAR-1430L-100H-BD-78MMMOL-37.5MMLCL-I-SOUND-REPRODUCTION-EXCITER.-SOURCE-WXH-5.6-X-1.8MMBXA-10V-7.5A-P30S-T8-C6-CLEAR-1430L-100H-BD-78MMMOL-37.5MMLCL-I-SOUND-REPRODUCTION-EXCITER-SOURCE-WXH-5.6X1.8MMBXA-10V-75W ANSIBXA-10V-75W ASA
BXA-10V/10V/75W/P15S30A ANSIBXA-10VOLT ANSIBXA-10VOLT ASABXA/10V/75W/P15S30 ANSI
BXA/10V/75W/P15S30A ANSIEL6A-10V-7.5AEL6A-10V-7.5A ATLASEL6A-10V-7.5A LIF
EL6A-10V-7.5A THORNEL6A-10V-7.5A-P30S-T25-CLEAR-1762.5L-100H-VBD25-78MMMOL-37.3MMLCL-I-EXCITER-LAMP-FOR-SOUND-REPRODUCTIONEL6A-10V-75W-P15S30 LIFG/13-10V-7.5A-P30S-T25-C6-CLEAR-1762.5L-100H-VBD25-78MMMOL-37.3MMLCL-I
G/34-10V-7.5A-P30S-CLEARG13-10V-7.5AG13-10V-7.5A ATLASG13-10V-7.5A LIF
G13-10V-7.5A THORNG13-10V-75W-P15S30 LIFG34-10V-7.5AG34-10V-7.5A ATLAS
G34-10V-7.5A LIFG34-10V-7.5A THORNG34-10V-75W-P15S30 LIFI/10V/7.5A/P15S/T26MM/C6/37MMLCL/1650L/75MMMOL/100H/6056C PHILIPS
I/10V/7.5A/P15S30/T8I/10V/7.5A/P15S30/T8/100HI/10V/75W/P15S30/CL/100H/G34-10V-75W-P15S30 LIFI/10V/75W/P15S30/CL/G34-10V-75W-P15S30 LIF
I/10V/75W/P15S30/T8I/10V/75W/P15S30/T8/100HI/10V/75W/P15S30/T8/C6/100HI/10V/75W/P15S30/T8/C6/100H/BXA
I/10V/75W/P15S30/T8/C6/100H/G13-10V-75W-P15S30 LIFI/10V/75W/P15S30/T8/C6/37MMLCL/1650L/75MMMOL/100H/6056C PHILIPSI/10V/75W/P15S30/T8/C6/BXAI/10V/75W/P15S30/T8/CL
I/10V/75W/P15S30/T8/CL/100HI/10V/75W/P15S30/T8/CL/100H/BXAI/10V/75W/P15S30/T8/CL/100H/EL6A-10V-75W-P15S30 LIFI/10V/75W/P15S30/T8/CL/100H/G13-10V-75W-P15S30 LIF
I/10V/75W/P15S30/T8/CL/BXAI/10V/75W/P15S30/TUBEI/10V/75W/P15S30/TUBE/100HI/10V/75W/P15S30A/T8/C6/100H
I/10V/75W/P15S30A/T8/C6/100H/BXAI/10V/75W/P15S30A/T8/C6/BXAI/10V/75W/P15S30A/T8/CL/100H/BXAI/10V/75W/P15S30A/T8/CL/BXA
KE-106 KONDOPH-7.5AMP-T8-P15S30 WESTINGHOUSEPH-7.5AMP-T8-P15S30-10VOLT WESTINGHOUSEPH/7.5A/T8/P15S30/CL/10V
PH/7.5A/T8SCP GENERAL-ELECTRICSP75T8P15S30AC6-10VSP75T8P15S30AC610V-BXASP75T8P15S30ACL-10V
SP75T8P15S30ACL10V-BXASP75T8SCPAC6-10VSP75T8SCPAC610V-BXASP75T8SCPACL-10V
SP75T8SCPACL10V-BXASP75T8SCPC6-10VSP75T8SCPC610V-BXASP75T8SCPCL-10V
SP75T8SCPCL10V-BXA
