BZA ANSI Code

BZA ANSI is a T8 lamp with a BA15s base operating at 100/110 watts and 20 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI BZA lamps.

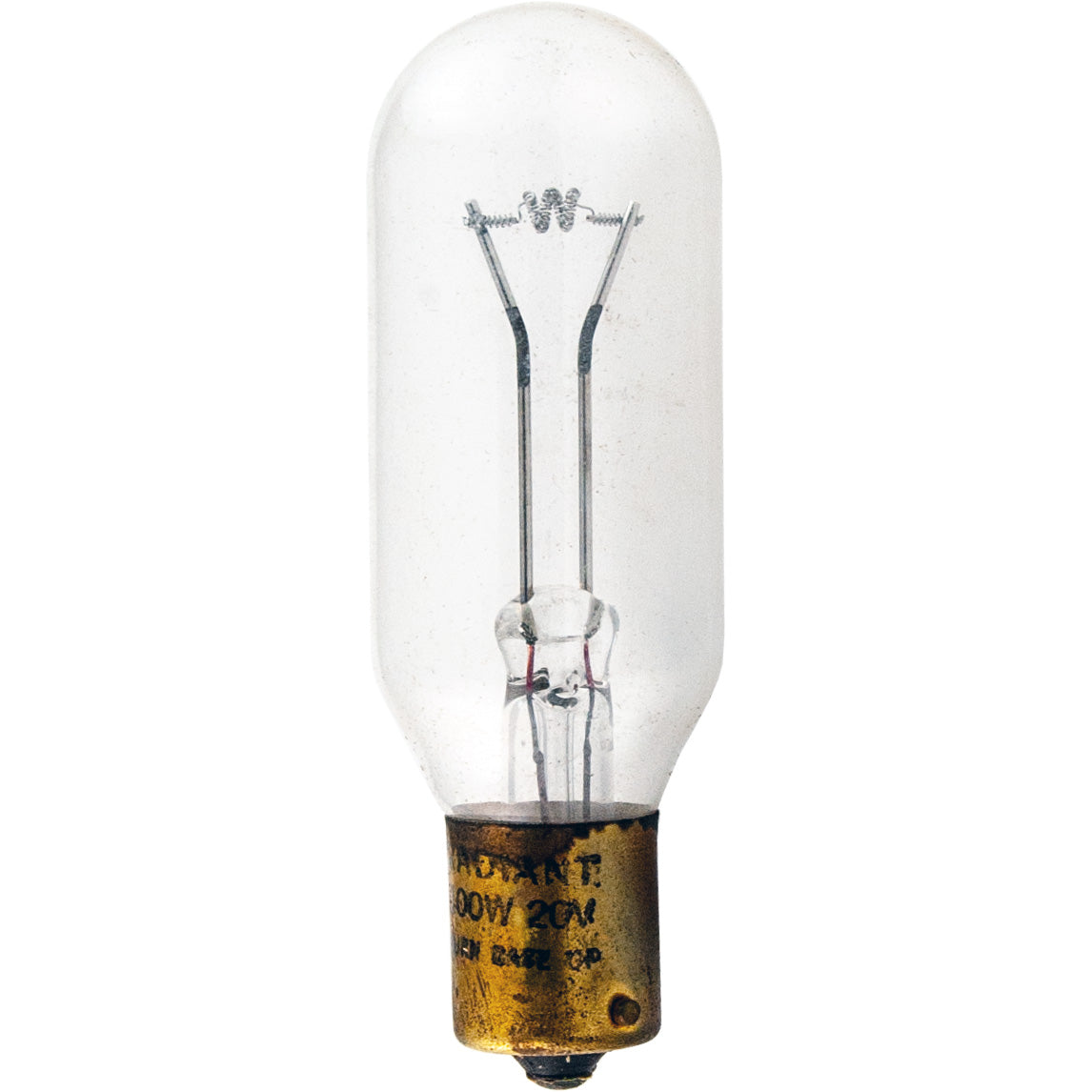

BZA Photograph

BZA

Electrical Specifications

Amps5.5
Volts20
Watts100/110

Photometrics

Candlepower240
Color Temperature3300
Light Center Length (LCL)2 3/16
Lumens3050

Physical Characteristics

BaseBA15s
Bulb ShapeT8
FilamentCC-6
FinishClear
Max Overall Length (MOL)3

Operating Characteristics

Burn PositionBase Up
Life Hours50

General Information
Lamp CodeBZA
Code TypeANSI

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Standard Products11966T-8/100W/20V/S.C.BAY/BA15S/BZA
NuarcVE-66BZA
Microlites20-100-04
Canimpex20-100-04

Equipment Used In

BrandModelType
Nuarc CP-25 100W Graphic Arts
Simmon Omega Auto Chromega D-4 Enlarger / Photo Printer
