CAC ANSI Code
CAC ANSI is a T8 lamp with a BA15d base operating at 50 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CAC lamps.

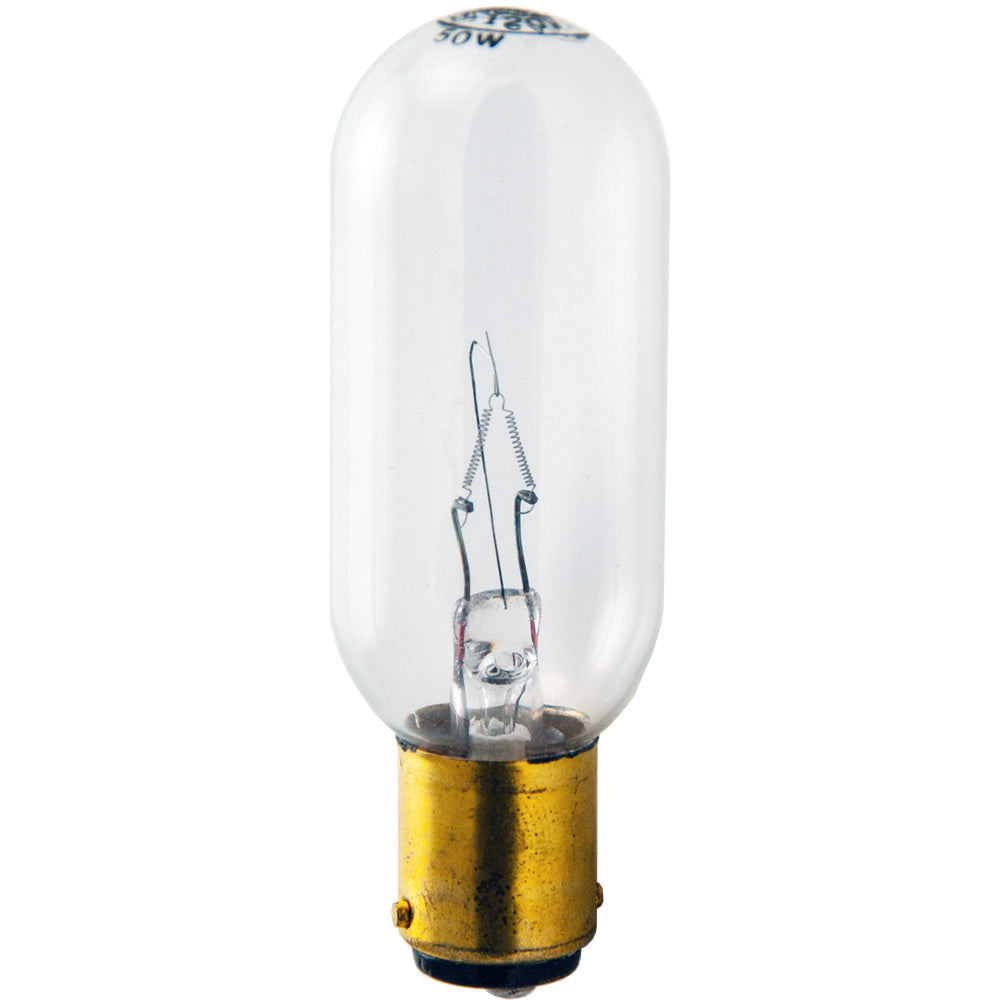

CAC Photograph |
 |
Electrical Specifications | |
| Amps | 0.417 |
|---|---|
| Volts | 120 |
| Watts | 50 |
Photometrics | |
| Candlepower | 72 |
|---|---|
| Color Temperature | 2900 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 900 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | T8 |
| Filament | CC-2V |
| Finish | Clear |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | CAC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T8 Shape | |
 | |
| Diameter Designation | 8/8" |
|---|---|
| Glass Diameter | 1" (1.0") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-2V Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-050-03J | ||
| Canimpex | 120-050-03J | ||
Equipment Used In | ||
| Brand | Model | Type |
| AO Reichert | Project-O-Chart 1215 | |
| AO Reichert | Project-O-Chart 11082 | |
| AO Reichert | Project-O-Chart 1217 | |
| AV Concepts | FS-50 | |
| AV Concepts | SFS-50 | |
| EDL Incorporated | Control Reader Junior | |
| Kalart Victor | Craig E-16 | |
| Kalart Victor | Craig E-8 | |
CAC may also be listed as: | |||
| 00610 WIKO | 031293006103 EIKO | 1000118 USHIO | 3129300610 WIKO |
| 50T8-67 GENERAL-ELECTRIC | 50T8-67D GENERAL-ELECTRIC | 50T8/67DC GENERAL-ELECTRIC | 50T8DC/CL120V |
| 50T8DCCLHO120V | 50WATT-T8-67-BA15D GENERAL-ELECTRIC | 50WATT-T8-67-BA15D-120 VOLT GENERAL-ELECTRIC | CAC ANSI |
| CAC ASA | CAC INTERLIGHT | CAC USHIO | CAC WESTINGHOUSE |
| CAC WIKO | CAC-120 VOLT ANSI | CAC-120 VOLT ASA | CAC-120V ANSI |
| CAC-120V ASA | CAC-120V-50W | CAC-120V-50W ANSI | CAC-120V-50W ASA |
| CAC-120V-50W-BA15D-T8-CC2V-CLEAR-800L-2900K-50H-BD-3-1/8MOL-1-3/8LCL-I-PROJECTION | CAC-120V/120V/50W/BA15D ANSI | CAC-CAJ ANSI | CAC-CAJ ASA |
| CAC-CAJ EIKO | CAC-CAJ LAMPTECH | CAC-CAJ WIKO | CAC/120V GENERAL-ELECTRIC |
| CAC/120V/50W/BA15D ANSI | CAC/CAJ BULB-DIRECT | CAC/CAJ INTERLIGHT | HP-8-2V-BA15D KONDO |
| I/120V/50W/BA15D/T8/CC2V/50H | I/120V/50W/BA15D/T8/CC2V/50H/CAC | I/120V/50W/BA15D/T8/CL/50H/CAC | I/120V/50W/BA15D/T8/CL/50H/SP50T8DCCL120V |
| I/120V/50W/BA15D/T8/CL/HO | I/120V/50W/BA15D/T8/CL/HO/50T8DCCLHO120V | I/120V/50W/BA15D/T8/CL/HO/SP50T8DCCL120V | I/120V/50W/BA15D/T8/HO |
| I/120V/50W/BA15D/T8/PHOTO | I/120V/50W/BA15D/TUBE/HO | PH-50-T8-DC-CLEAR-120V | PH-50WATT-T8-67-BA15D GENERAL-ELECTRIC |
| PH-50WATT-T8-67-BA15D-120 VOLT GENERAL-ELECTRIC | PH/50/T8/DC/CL/120V | PH/50W/T8/BA15D/CL/120V | PH50T8-67 GENERAL-ELECTRIC |
| PH50T8-67D GENERAL-ELECTRIC | SP50T8BA15DCC2V-120V | SP50T8BA15DCC2V120V-CAC | SP50T8BA15DCL120V-CAC |
| SP50T8DCCC2V-120V | SP50T8DCCC2V120V-CAC | SP50T8DCCL120V | SP50T8DCCL120V-CAC |
