CAE ANSI Code

CAE ANSI is a T8 lamp with a BA15s base operating at 100 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CAE lamps.

Electrical Specifications

Amps0.833
Volts120
Watts100

Photometrics

Candlepower160
Color Temperature2900
Light Center Length (LCL)1 3/8
Lumens2000

Physical Characteristics

BaseBA15s
Bulb ShapeT8
FilamentCC-13
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours50

General Information
Lamp CodeCAE
Code TypeANSI

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

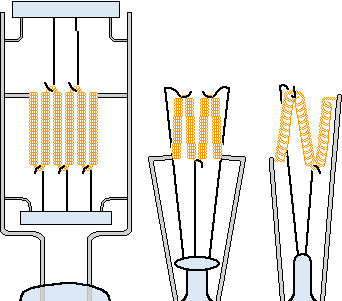

CC-13 Filament

CC-13
Coil TypeCC - Coiled Coil

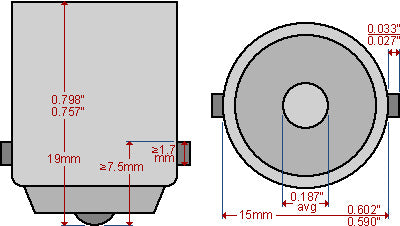

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICAE

Equipment Used In

BrandModelType
Camera Specialty Co. Voigt Projector Slide / Filmstrip
FR Corp. Minolta Mini 35 Slide Projector
FR Corp. Minolta Mini 44 Slide Projector
Keystone Camera Co. Inc. B Projector Slide / Filmstrip
Keystone Camera Co. Inc. D Projector Slide / Filmstrip
Keystone Camera Co. Inc. C Projector Slide / Filmstrip
Minolta Mini-35 Slide Projector
Society for Visual Education (SVE) Jam Handy Picturol Q Projector Slide / Filmstrip
Vokar, Inc. Vokar C Filmstrip / Slide Projector
Vokar, Inc. Vokar D Filmstrip / Slide Projector
Vokar, Inc. Vokar FT Filmstrip / Slide Projector

CAE may also be listed as:
CAECAE ANSICAE ASACAE-120V-100W
CAE-120V-100W ANSICAE-120V-100W-BA15S-T8-CC2V-CLEAR-2000L-2975K-50H-BD-3-1/8MOL-1-3/8LCL-I-SLIDE-PROJECTORCAE-120V/120V/100W/BA15S ANSICAE/120V/100W/BA15S ANSI
I/120V/100W/BA15S/T8/CC2V/50H/CAEI/120V/100W/BA15S/T8/CL/50H/CAESP100T8BA15SCC2V120V-CAESP100T8BA15SCL120V-CAE
SP100T8SCCC2V120V-CAESP100T8SCCL120V-CAE
