CAL ANSI Code

CAL ANSI is a T10 lamp with a G17q-A2A base operating at 300 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CAL lamps.

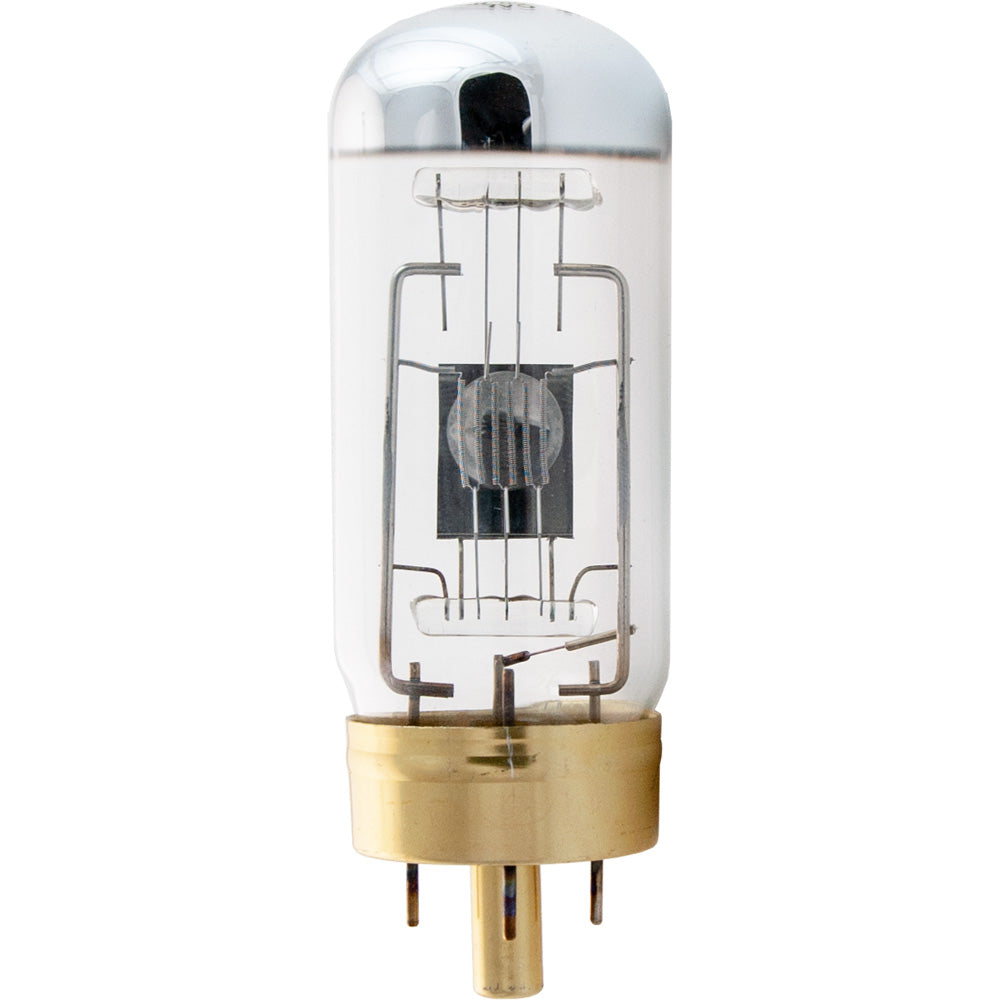

CAL Photograph

CAL

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower570
Color Temperature3150
Light Center Length (LCL)1 9/16
Lumens6500

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT10
FilamentC-13
FinishObscured Top
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCAL
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Possible Substitution CXP
For 230V Use CXH/230V/300W
For 240V Use CXH/240V/300W

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCAL120V 300W
Microlites120-300-31L
Canimpex120-300-31L

Equipment Used In

BrandModelType
Airequipt 100
Airequipt Superba 35 Slide Projector
Airequipt Superba 30 Slide Projector
Airequipt Superba 33 Slide Projector
Apollo VR-2551
Apollo V-8331
Apollo V-2551
Argus Automatic 534
Argus Automatic 501 Microfilm Reader
Argus Special 534
Argus 38 Overhead Projector
Atlas Warner 300
Bausch & Lomb Balomatic 705
Bausch & Lomb Balomatic 605
Bausch & Lomb Balomatic 300
Bell and Howell Auto
Bell and Howell Filmosound Specialist 561
Bell and Howell Filmosound Specialist 562
Bell and Howell Headliner 707-M
Bell and Howell Autoload 726
Bell and Howell Autoload Filmchain 562-A
Bell and Howell Filmosound Specialist
Bell and Howell Headliner 706-P
Bell and Howell Autoload Filmchain 561-A
Dukane Cassette Micromatic 25A81 Projector
Dukane Micromatic II 14A335G Projector
Dukane Micromatic 14A390E Projector
Dukane Micromatic 28A35 Projector
Dukane Response Micromatic 28A28A Projector
Dukane Response Micromatic 28A27A Projector
Dukane Micromatic II 14A335F Projector
Dukane Remote Control 576-47C Projector
Dukane Response Micromatic 28A27B Projector
Dukane Manual Matic 14A335G Projector
Dukane Response Micromatic 28A28B Projector
Dukane Remote 576 Projector
Dukane Cassette Micromatic 28A81 Projector
Dukane Remote 47C Projector
Dukane Silent 28A35 Projector
Dukane Micromatic II 28A83 Projector
Dukane Cassette Micromatic Super 28A81-5 Projector
Dukane Micromatic 14A390F Projector
Dukane 28A33A Projector
Dukane Cassette Micromatic 28A9C Projector
Dukane Cassette Micromatic 28A9B Projector
Dukane 35-A Projector
Dukane Cassette Micromatic 28A9 Projector
Dukane Cassette Micromatic 28A9A Projector
Dukane Manual Matic 14A335F Projector
Dukane Micromatic 28A33 Projector
Dukane Micromatic 14A390G Projector
Dukane Silent 33-A Projector
Dukane Response Micromatic 27A27B Projector
Dukane Silent 28A33 Projector
Dukane Manual Matic 14A335E Projector
Dukane Micromatic II 14A335E Projector
Eastman Kodak Recordak PR-1824
Eastman Kodak Recordak P-1824
Educational Projection Corp. 300-HS
Elco Optisonics Mastermatic RI
Elco Optisonics Mastermatic I
Graflex Graflex SM-400
Itek 1824-RF Microfilm Reader
Itek 1824-SS Microfilm
Kalart Victor Soundstrip Model BU-2
Kalart Victor Soundstrip BU-2
Learn Through Seeing Tachist-O-Flash Mark I Projector
Mansfield Industries Midway 8mm Projector Movie
Mansfield Industries Skylark
Mansfield Industries Skylark Automatic 300 Viewer/Editing
Mansfield Industries Skylark 300
Mansfield Industries Presto-matic
Mansfield Industries Automatic Viewer/Editing
Mansfield Industries Midway II
McClure Projectors MAV-400 Projector
McClure Projectors MRF-3 Projector
McClure Projectors Statesman Deluxe Projector
McClure Projectors CSA-A-50 Projector
Optoma 1530 Projector
Quick-Set Three-O-Three
Radmar N-300-3
Radmar N-300
Radmar N-3
Sawyer's Inc. Viewmaster Insta-Load Projector
Sawyer's Inc. Viewmaster Deluxe 300 Projector
Sears Roebuck 6400 SEARS Projector Slide / Filmstrip
Sears Roebuck 9840 TOWER Projector Slide / Filmstrip
Sears Roebuck 300 TOWER Projector Slide / Filmstrip
Sears Roebuck 9800 TOWER Projector Slide / Filmstrip
Sears Roebuck 9840 SEARS Projector Slide / Filmstrip
Sears Roebuck 1840 TOWER Projector Slide / Filmstrip
Sears Roebuck 9800 SEARS Projector Slide / Filmstrip
Sears Roebuck 6363 SEARS Projector Slide / Filmstrip
Sears Roebuck 6400 TOWER Projector Slide / Filmstrip
Sears Roebuck 9823 SEARS Projector Slide / Filmstrip
Sears Roebuck 1840 SEARS Projector Slide / Filmstrip
Singer Corporation SM-400RC
Singer Corporation Graflex SM-400
Singer Corporation Graflex RC
Singer Corporation SM-400
Spindler & Sauppe Selectroslide 96 Projector Slide / Filmstrip
Spindler & Sauppe Spectrum 96 Projector Slide / Filmstrip
Standard Projector & Equipment 666
Standard Projector & Equipment 666-N
Standard Projector & Equipment 666-CN
Standard Projector & Equipment 666-C
Viewlex V-83A
Viewlex V-832
Viewlex V-83R
Viewlex V-833
Viewlex Lumen Master V-25 Viewer/Editing

CAL may also be listed as:
00620 EIKO00620 UPC00620 WIKO630
00630 WIKO031293006202 EIKO048777107980 UPC1000119 BLV
1000119 USHIO21152 GENERAL-ELECTRIC26791-4 PHILIPS267914/CAL PHILIPS
29525 GENERAL-ELECTRIC300WATT-T10-G17Q-4 SYLVANIA300WATT-T10-G17Q-4-120 VOLT SYLVANIA3129300620 WIKO
456-97 DUKANE73320 OSRAM73320 SYLVANIA73320/CAL/CXP SYLVANIA
A1-201-120 VOLT ATLASA1-201-120 VOLT LIFA1-201-120 VOLT THORNA1/201 THORN
A1/201-120 VOLTBW-CALCAL ANSICAL ASA
CAL GENERAL-ELECTRICCAL INTERLIGHTCAL LAMPTECHCAL MICROLAMP
CAL PHILIPSCAL SYLVANIACAL USHIOCAL WESTINGHOUSE
CAL WIKOCAL-120 VOLT ANSICAL-120 VOLT ASACAL-120V ANSI
CAL-120V ASACAL-120V-300WCAL-120V-300W ANSICAL-120V-300W ASA
CAL-120V-300W-G17Q-7 USHIOCAL-120V-300W-G17Q-T-10-C-13-GOLD/BLUE-TOP-6500L-3150K-25H-BD-4MOL-1-9/16LCL-I-FILM-STRIP-SLIDE-PROJECTOR-PROXIMITY-REFL.-CLEAR-BULB-LUMENSCAL-120V-300W-G17Q-T10-C13-GOLD/BLUE-TOP-6500L-3150K-25H-BD-4MOL-1-9/16LCL-I-FILM-STRIP-SLIDE-PROJECTOR-PROXIMITY-REFL-CLEAR-BULB-LUMENSCAL-120V/120V/300W/G17Q ANSI
CAL-125VCAL-125V ANSICAL-125V ASACAL-125V-300W
CAL-125V-300W ANSICAL-125V-300W ASACAL-300W-120V-G17Q-7 USHIOCAL-CXP ANSI
CAL-CXP ASACAL-CXP EIKOCAL-CXP SYLVANIACAL-CXP WESTINGHOUSE
CAL-CXP WIKOCAL/120V GENERAL-ELECTRICCAL/120V/300W/G17Q ANSICAL/125
CAL/125 ANSICAL/125 ASACAL/5CAL/5 ANSI
CAL/5 ASACAL/5CXP5CAL/5CXP5 ANSICAL/5CXP5 ASA
CAL/99CAL/CXP BULB-DIRECTCAL/CXP INTERLIGHTCAL/CXP MICROLAMP
CAL/CXP OSRAMCAL/CXP USHIOCAL/CXP-120V-300W-G17Q-7 USHIOCAL/CXP-300W-120V-G17Q-7 USHIO
CAL/CXP-5CAL/CXP-5 WIKOCAL/CXP-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13-3200K-25H-BD-1000119 BLVCAL/CXP-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13-3200K-25H-BD-1000119 USHIO
CAL/CXP5/99CAL/CXP5DLCAL/CXP5ESCAL/CXP5L
CAL/CXP5LLCAL/CXP5XCAL/CXP5XPCAL/CXP5XTRA
CAL/DLCAL/ESCAL/LCAL/LL
CAL/T10-120V-300W-4-PIN LAMPTECHCAL/XCAL/XPCAL/XTRA
CXP/CAL ANSIEQ-CAL ELECTROQUIPEQ-CAL/G17Q-120V-300W ELECTROQUIPG17Q7-300W-CAL/CXP-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13-3200K-25H-BD-1000119 BLV
G17Q7-300W-CAL/CXP-PROXIMITY-REFLECTOR-OPAQUE-TOP-120V-T32MM-101.6MMMOL-39.7MMLCL-C-13-3200K-25H-BD-1000119 USHIOI/120V/300W/G17Q-A2A/T10/C13D/OT/25HI/120V/300W/G17Q-A2A/T10/C13D/OT/25H/CAL-120VI/120V/300W/G17Q-A2A/T10/OT/25H
I/120V/300W/G17Q-A2A/T10/OT/25H/CAL-120VI/120V/300W/G17Q/T10/C13D/OT/25H/CAL-120VI/120V/300W/G17Q/T10/OT/25H/CAL-120VINC-120V-300W-C13-25HR/120V/300W/G17Q-7 USHIO
INC-120V-300W-C13-25HR/120V/300W/G17Q-7/CAL/CXP USHIOINC-120V-300W-C13-25HR/CAL/CXP USHIOKP-TFM-10-100-120 VOLT-300WATTKP-TFM-10-A-1-201-120 VOLT KONDO
KP-TFM-10-CAL-CXP KONDOPROJECTION/120V/300W/G17Q/25H ELECTROQUIPSP300T10G17Q-A2AC13DOT120VSP300T10G17Q-A2AOT120V
SP300T10G17QA2AC13DOT120V-CAL-120VSP300T10G17QA2AOT120V-CAL-120VSP300T10G17QC13DOT120V-CAL-120VSP300T10G17QOT120V-CAL-120V
