CAR ANSI Code

CAR ANSI is a T10 lamp with a G17q-D2 base operating at 150 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Obscured Top finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CAR lamps.

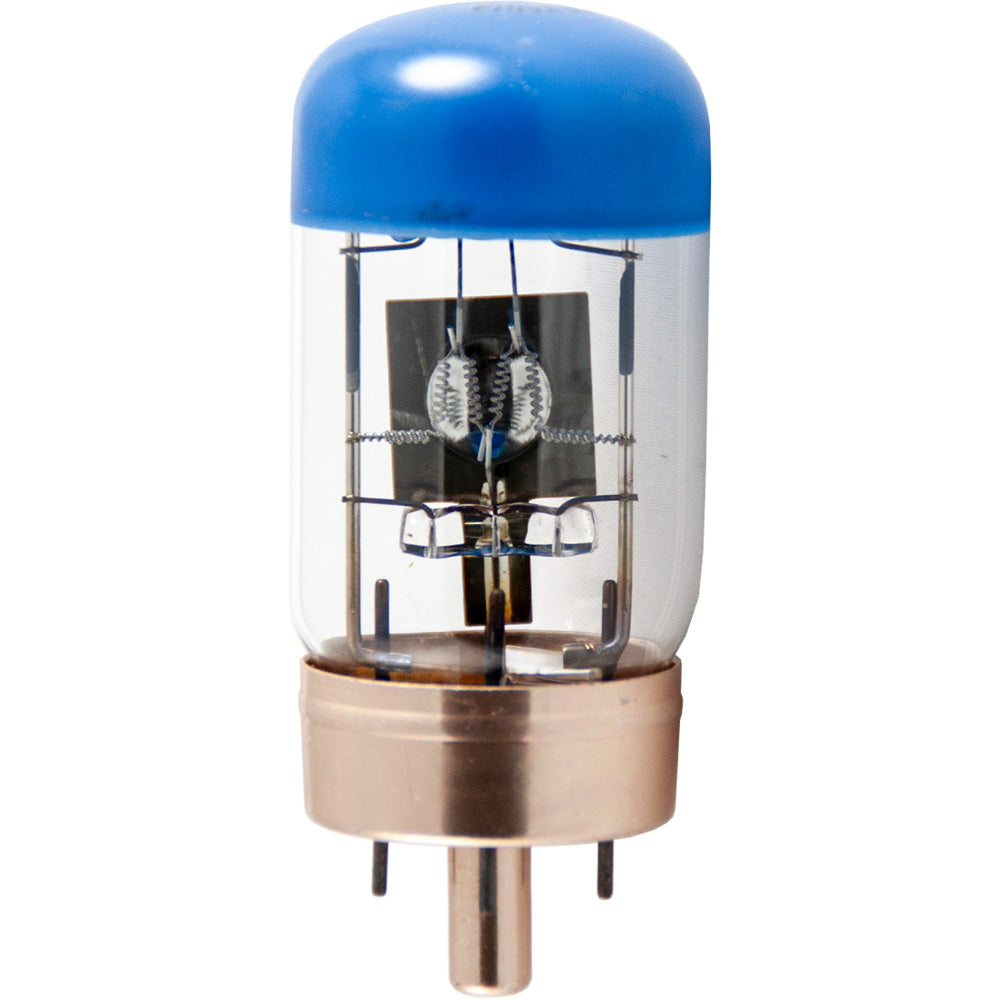

CAR Photograph

CAR

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Candlepower280
Color Temperature3150
Light Center Length (LCL)1 5/16
Lumens3500

Physical Characteristics

BaseG17q-D2
Bulb ShapeT10
Filament2CC-8
FinishObscured Top
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionBDTH
Life Hours15

General Information
Lamp CodeCAR
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

2CC-8 Filament

2CC-8
Coil TypeCC - Coiled Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCAR120V 150W
Microlites120-150-31
Canimpex120-150-31

Equipment Used In

BrandModelType
Apollo ST-3000
Apollo VR-2551
Apollo V-8331
Apollo V-2551
Apollo AC-1001
Argus Special 515
Atlas Warner 150
Audion Corp. 51
Audiscan TSM (1973)
Audiscan CSM (1973)
Bell and Howell Depue 6760AR
Borg Warner D-10
Braun D-10
COC (Graflex) Inspector Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Inspector
Dukane Mite-E-Lite 14A395D Projector
Dukane Mite-E-Lite 14A395C Projector
Dukane Mite-E-Lite 351-2 Projector
Dukane Mite-E-Lite 350 Projector
Dukane Mite-E-Lite 356-2 Projector
Dukane Mite-E-Lite 355 Projector
Dukane Mite-E-Lite 14A395E Projector
Eastman Kodak Audioviewer 400
Eastman Kodak Audioviewer 450
Eastman Kodak Audioviewer 200
Eastman Kodak Brightlight Modules Audio Viewer 200
Eastman Kodak Brightlight Modules Audio Viewer 400
Eastman Kodak Autoviewer 250
GAF (Aarque Systems) 7500
GAF (Ansco) 7500 Microfilm Reader
Graflex Graflex SM-2000
Graflex Compact Filmstrip Projector
Hudson Photographic Industries (HPI) Prima 356-2 Projector
Hudson Photographic Industries (HPI) Prima 350 Projector
Hudson Photographic Industries (HPI) Prima 351-2 Projector
Hudson Photographic Industries (HPI) Prima 355 Projector
Mansfield Industries Kadet
Mansfield Industries Starfire
Mansfield Industries Starlite
McClure Projectors 66 Projector
McClure Projectors Statesman Standard Projector
McClure Projectors L Projector
McClure Projectors 71-A Projector
McClure Projectors CSMA Projector
McClure Projectors N-L Projector
McClure Projectors MRC Projector
McClure Projectors CSM Projector
McClure Projectors Picturephone 400 Projector
McClure Projectors 61 Projector
McClure Projectors Statesman Deluxe Projector
McClure Projectors N (new model) Projector
McClure Projectors N (old model) Projector
McClure Projectors MRF Projector
McClure Projectors Attache Projector
Optoma 1503 Projector
Optoma 1502 Projector
Radmar N-150
Radmar Model 1500
Radmar N-3
Radmar N-150-3
Realist 3111
Realist Automatic
Realist Vista III
Realist 200
Realist Vista
Realist 400
Richard Mfg. Co. Poly-Vue Presentation
Sears Roebuck 9824 SEARS Projector Slide / Filmstrip
Sears Roebuck 150 TOWER Projector Slide / Filmstrip
Sears Roebuck 9815 SEARS Projector Slide / Filmstrip
Sears Roebuck 9824 TOWER Projector Slide / Filmstrip
Singer Corporation Graflex
Singer Corporation Compact
Singer Corporation Caramate I
Singer Corporation Compact Filmstrip
Singer Corporation SM-200
Singer Corporation Caramate II
Singer Corporation Messenger
Singer Corporation Graflex SM-200
Singer Corporation Film Strip
Standard Projector & Equipment 333-N Projector Slide / Filmstrip
Standard Projector & Equipment 331 Projector Opaque / Transparency
Standard Projector & Equipment 150-F Projector Slide / Filmstrip
Standard Projector & Equipment 333-C Projector Slide / Filmstrip
Standard Projector & Equipment 333-RC Projector Slide / Filmstrip
Standard Projector & Equipment 333 Projector Slide / Filmstrip
Standard Projector & Equipment 444 Projector Opaque / Transparency
Standard Projector & Equipment 333-CN Projector Slide / Filmstrip
Viewlex V-8R
Viewlex V-8
Viewlex V-803 Projector Slide / Filmstrip
Viewlex V-802 Projector Slide / Filmstrip
