CAX ANSI Code

CAX ANSI is a T4 lamp with a BA15d base operating at 50 watts and 120 volts. It has a color temperature of 2875 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CAX lamps.

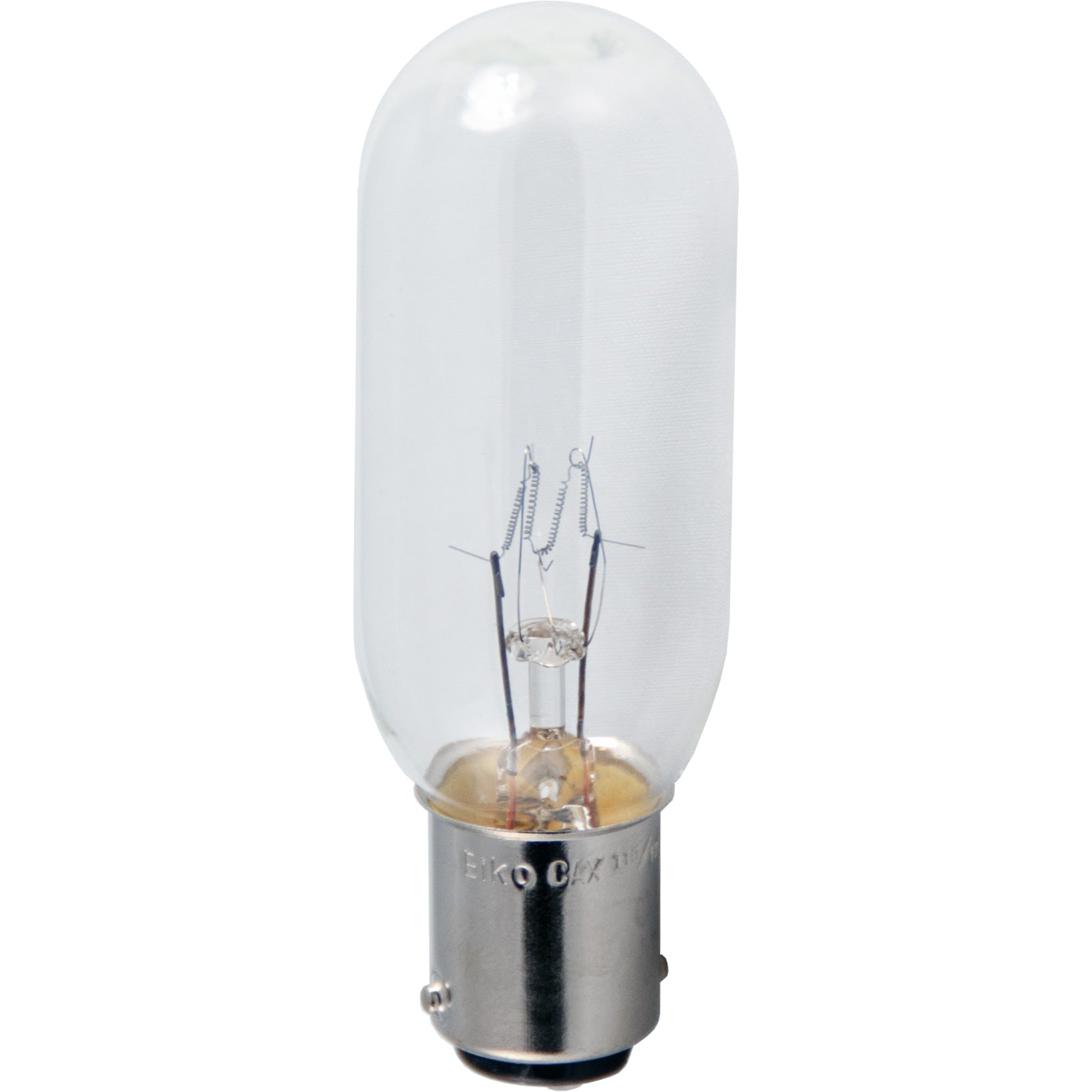

CAX Photograph

CAX

Electrical Specifications

Amps0.417
Volts120
Watts50

Photometrics

Candlepower62
Color Temperature2875
Light Center Length (LCL)1 3/8
Lumens775

Physical Characteristics

BaseBA15d
Bulb ShapeT4
FilamentCC-13
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionVBD ± 30°
Life Hours50

General Information
Lamp CodeCAX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-13 Filament

CC-13
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Atlas/ThornA1/19
Eiko00780CAX
General Electric29171CAX
Osram Sylvania58831CAX
Philips6156W
Topcon42425-31600
Ushio1000122CAX/CAW, INC120V-50W
Green Energy Lighting (GELCO)60553-WBCAX
Norman LampsCAX50W, 120V
Microlites120-050-03
Microlites130-050-03
Microlites130-050-03HP
Microlites130-050-03Q
Canimpex120-050-03
Canimpex130-050-03
Canimpex130-050-03HP
Canimpex130-050-03Q

Equipment Used In

BrandModelType
AO Reichert Project-O-Chart 1215
AO Reichert Project-O-Chart 1217
AO Reichert Project-O-Chart Standard
AO Reichert Project-O-Chart 11082
AO Reichert 11176
American Optical Project-O-Chart 11082
American Optical Project-O-Chart 1217
American Optical Project-O-Chart 1215
Burton Medical POC-5000
COC (Graflex) Standard 66
Camera Optics Manufacturing Corp. Standard 66 Projector Slide / Filmstrip
EDL Incorporated Control Reader Junior
FR Corp. Port-A-View
Intercontinental Marketing Corp. Sunsett 88
Marco 6014 Medical
Marco Main CP1 (manual) Medical
Singer Corporation Reader Junior
Singer Corporation Graflex 66
Singer Corporation Standard 66
Singer Corporation School Master 500 Model 49
Singer Corporation Constellation Standard 66
Tel-A-Story Junior-Viewer
Topcon CP-5D
